SKU: NE8250.70PED

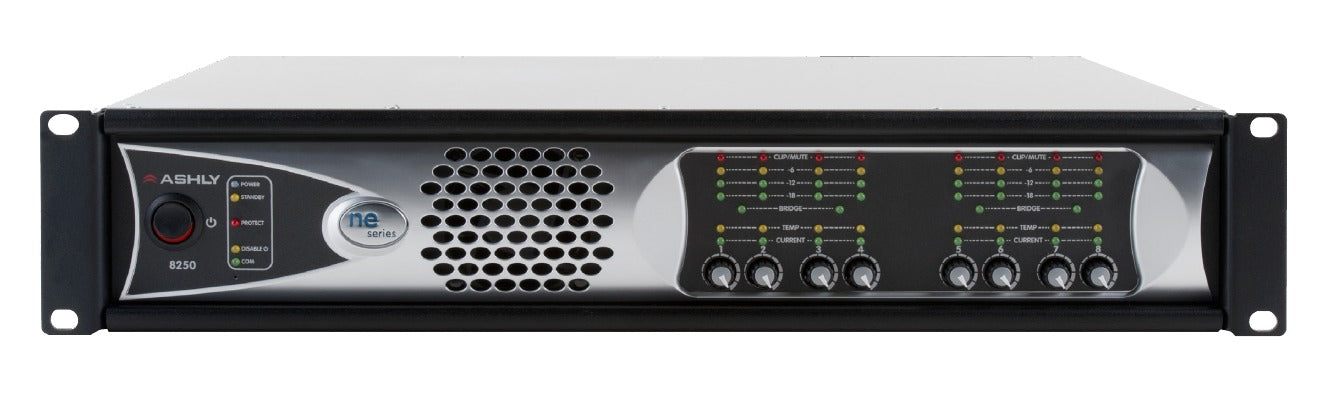

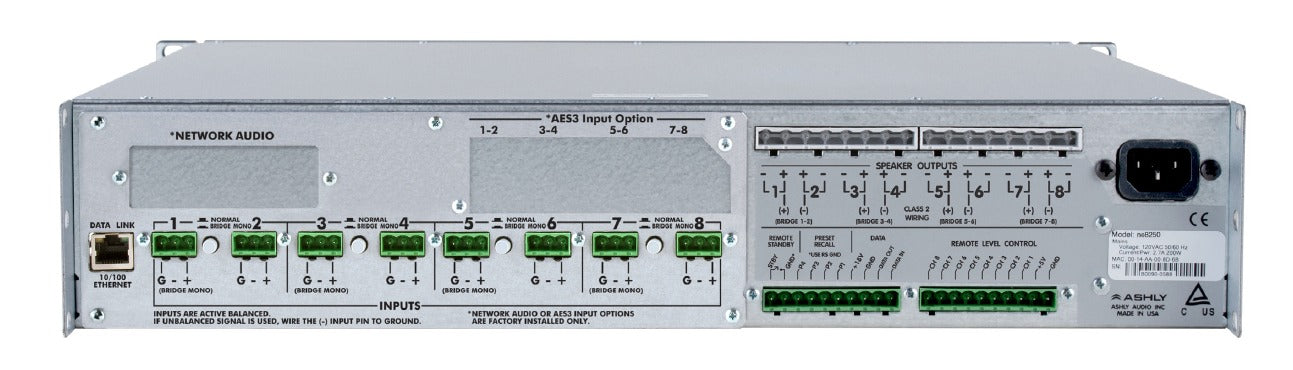

Ashly ne8250.70peD 8 Channel Network Power Amplifier with Protea DSP and Dante Option Card, 250W at 70V

$3,899.00

Items Included

Ashly ne8250.70peD 8 Channel Network Power Amplifier with Protea DSP and Dante Option Card, 250W at 70V

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The Ashly ne8250.70peD is a 250-watt Constant Voltage 70V @ 4 Ohm, eight-channel amplifier with DSP and OPDante option cards. Connecting and controlling an amplifier for networked systems has now been simplified with Ashly’s NE Series amplifiers. Network Enabled (NE) amplifiers offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed. Additionally, each amplifier also provides DC voltage control of the attenuators which makes it a snap to control volume from remote locations, preset recall, Remote Power Standby and data in and out ports for connecting accessories like the WR-5 to control user selected parameters. There are LED indicators for power, standby, protect, network communications and each channel has a four-step signal meter, bridge mono, temperature and current indicators. Read more

Features

  • Eight Channel Amplifier
  • Voltage 70V Version
  • Protēa DSP
  • DSP Processing on inputs and outputs
  • OPDante Option Card
  • 10/100 Ethernet comes standard
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies
  • Low Impedance
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: TUV, CE, FCC,RoHS

Business Financing Options Avaiable

The Ashly ne8250.70peD is a 250-watt Constant Voltage 70V @ 4 Ohm, eight-channel amplifier with DSP and OPDante option cards. Connecting and controlling an amplifier for networked systems has now been simplified with Ashly’s NE Series amplifiers. Network Enabled (NE) amplifiers offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed. Additionally, each amplifier also provides DC voltage control of the attenuators which makes it a snap to control volume from remote locations, preset recall, Remote Power Standby and data in and out ports for connecting accessories like the WR-5 to control user selected parameters. There are LED indicators for power, standby, protect, network communications and each channel has a four-step signal meter, bridge mono, temperature and current indicators. Read more

Features

  • Eight Channel Amplifier
  • Voltage 70V Version
  • Protēa DSP
  • DSP Processing on inputs and outputs
  • OPDante Option Card
  • 10/100 Ethernet comes standard
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies
  • Low Impedance
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: TUV, CE, FCC,RoHS

About the Ashly ne8250.70peD 8 Channel Network Power Amplifier with Protea DSP and Dante Option Card, 250W at 70V

The Ashly ne8250.70peD is a fully integrated network amplifier that combines high-power multi-zone amplification, comprehensive digital signal processing, and Dante digital audio networking into a single, intelligent 1U device. It is engineered for large-scale commercial audio systems, delivering 250 watts per channel into a 70V constant-voltage configuration across its eight independent channels, making it an ideal centralized power source for extensive distributed speaker networks in retail spaces, airports, hotels, and corporate campuses. The amplifier's core intelligence is provided by Ashly's Protea DSP platform, which offers per-channel processing including parametric EQ, crossover filters, dynamics, and delay, allowing for precise acoustic tuning and optimization of each output zone directly within the amplifier.

A defining feature of this model is the integrated Dante audio networking option, which transforms the amplifier into a networked audio endpoint. This allows it to receive uncompressed, multi-channel digital audio streams directly over a standard Ethernet network from any Dante-enabled source, such as a digital mixer or audio processor, eliminating the need for analog audio cabling from the front end. This digital audio path preserves signal integrity and greatly simplifies system design and scalability. Full network control and monitoring are achieved through a Gigabit Ethernet port, enabling remote configuration, real-time status monitoring of all channels (including thermal and signal levels), preset recall, and integration with third-party control systems via protocols like SNMP and Telnet.

Built for 24/7 reliability in continuous operation, the amplifier features a convection-cooled, fanless design that ensures silent performance—a critical requirement for noise-sensitive environments. Its compact 1U rack-mountable chassis houses a universal power supply and represents a significant space saving compared to using separate amplifiers, DSP units, and Dante interfaces. By converging Dante audio transport, high-resolution DSP, and multi-zone power amplification into one streamlined, network-manageable unit, the Ashly ne8250.70peD provides a powerful, scalable, and future-proof audio backbone for the most demanding professional installed sound applications, offering unparalleled system simplicity, control, and audio fidelity.

Key Features

  • Eight Channel Amplifier
  • Voltage 70V Version
  • Protēa DSP
  • DSP Processing on inputs and outputs
  • OPDante Option Card
  • 10/100 Ethernet comes standard
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies
  • Low Impedance
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: TUV, CE, FCC,RoHS

Ashly ne8250.70peD 8 Channel Network Power Amplifier with Protea DSP and Dante Option Card, 250W at 70V Specs

Amplifier Performance
Channels
8
Amplifier Technology
Class-D
Power per Channel
250W @ 70V
Frequency Response
20Hz - 20kHz
Digital Audio & DSP
Audio Networking
Integrated Dante
Processing Platform
Protea DSP
Processing per Channel
EQ, Crossover, Dynamics, Delay
Output Configuration
Output Mode
Constant Voltage (70V/100V/25V)
Direct Impedance
4 Ohms
Total Harmonic Distortion
<0.5%
Network & Control
Network Interface
Gigabit Ethernet
Management Software
Ashly Protea
Control Protocols
Dante, TCP/IP, SNMP
Physical & Power
Rack Units
1U
Cooling
Convection (Fanless)
Input Voltage
100-240V AC
Dimensions
19" x 1.75" x 11.75"

Key Features

  • Eight Channel Amplifier
  • Voltage 70V Version
  • Protēa DSP
  • DSP Processing on inputs and outputs
  • OPDante Option Card
  • 10/100 Ethernet comes standard
  • DC voltage remote gain control
  • Ethernet remote control and monitoring
  • Switch mode supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote turn on/off
  • Disable all front panel controls via software
  • Temperature-sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies
  • Low Impedance
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: TUV, CE, FCC,RoHS
