SKU: NE8250PE

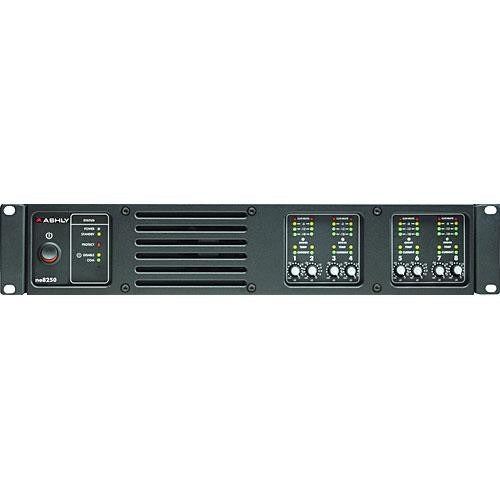

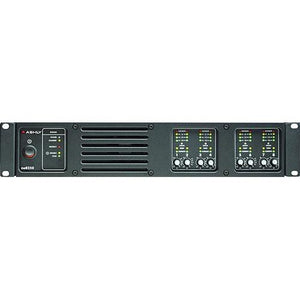

Ashly NE8250PE Network Enabled 8-Channel Amplifier w/ Protea DSP

$3,219.00

Items Included

Ashly NE8250PE Network Enabled 8-Channel Amplifier w/ Protea DSP

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The ne8250PE from Ashly is a professional-quality 8-channel power amplifier with Ethernet capability designed for installed applications. Housed in a robust 2RU enclosure, this highly-efficient amplifier uses standard Euroblock input and output connectors, allowing it to connect to practically any 4 or 8 Ohm system. The ne8250PE has an Ethernet port, which offers Ethernet control and monitoring of the amplifier functions using the Proteane software. It also has a normal/bridge switch, allowing you to switch the amplifier into Bridge Mode. Other features include a wide complement of protection circuitry, remote level control, and the ability to expand the unit's capability via optional expansion modules. This PE model offers internal DSP processing, which allows each input channel to be configured with pluggable DSP blocks for dynamic control, gain functions, graphic and/or parametric EQ, time delay, and more. A mixer section with assignable routing gives you the option to drive any or all output from any input channel. The amplifier outputs have the same DSP benefits as the inputs, with the addition of automated crossover setup. Read more

Features

  • Integrated Ethernet Control
  • Normal/Bridge Modes

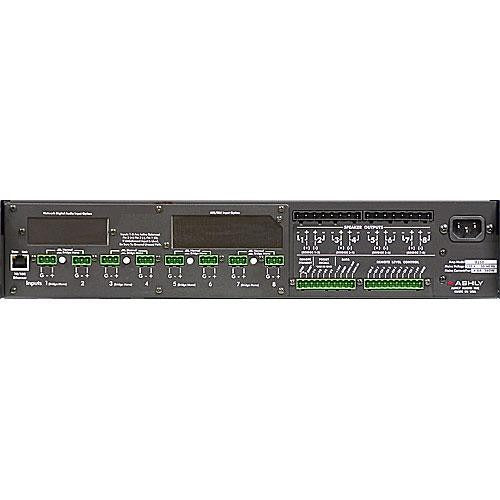

  • Euroblock Inputs
  • Protection Circuitry
  • Expansion Modules Available

Business Financing Options Avaiable

The ne8250PE from Ashly is a professional-quality 8-channel power amplifier with Ethernet capability designed for installed applications. Housed in a robust 2RU enclosure, this highly-efficient amplifier uses standard Euroblock input and output connectors, allowing it to connect to practically any 4 or 8 Ohm system. The ne8250PE has an Ethernet port, which offers Ethernet control and monitoring of the amplifier functions using the Proteane software. It also has a normal/bridge switch, allowing you to switch the amplifier into Bridge Mode. Other features include a wide complement of protection circuitry, remote level control, and the ability to expand the unit's capability via optional expansion modules. This PE model offers internal DSP processing, which allows each input channel to be configured with pluggable DSP blocks for dynamic control, gain functions, graphic and/or parametric EQ, time delay, and more. A mixer section with assignable routing gives you the option to drive any or all output from any input channel. The amplifier outputs have the same DSP benefits as the inputs, with the addition of automated crossover setup. Read more

Features

  • Integrated Ethernet Control
  • Normal/Bridge Modes
  • Euroblock Inputs
  • Protection Circuitry
  • Expansion Modules Available

About the Ashly NE8250PE Network Enabled 8-Channel Amplifier w/ Protea DSP

The Ashly NE8250PE is a sophisticated, network-enabled power amplifier that integrates robust amplification with comprehensive digital signal processing (DSP) in a single 2U rack-mountable unit. This amplifier provides eight independent channels, each capable of delivering substantial power, making it an ideal all-in-one solution for driving multi-zone speaker systems in commercial installations such as hotels, retail spaces, restaurants, and houses of worship. The integrated Protea DSP is a key feature, offering extensive processing capabilities including crossover filtering, parametric EQ, dynamics control (compression/limiting), and delay on a per-channel basis. This eliminates the need for external DSP units, simplifying system design, reducing rack space, and lowering overall system cost and complexity.

Control and configuration are managed entirely via network connectivity. The amplifier is equipped with a built-in Ethernet port, allowing it to be integrated into an existing IT infrastructure for remote monitoring, control, and firmware updates using Ashly's intuitive Ashly Network Manager software. This software provides a graphical interface for designing signal chains, adjusting parameters in real-time, and creating preset scenes for different usage scenarios. The amplifier supports industry-standard control protocols like Telnet and can be integrated with third-party control systems. Its flexible design allows each of the eight channels to be configured for different impedance loads, and the unit can operate in stereo, multi-channel, or bridged modes to meet varying power requirements.

The Ashly NE8250PE is engineered for reliability in 24/7 operation, featuring efficient Class-D amplification technology that reduces heat output and energy consumption. It includes comprehensive protection circuits for thermal, short-circuit, and overload conditions to safeguard both the amplifier and connected speakers. For system integrators and consultants, this amplifier represents a powerful, centralized solution that combines amplification, processing, and networked control into one intelligent device. It streamlines installation, offers unparalleled configuration flexibility, and provides the tools necessary to optimize audio performance for each specific zone or speaker type within a complex distributed audio system.

Key Features

  • Integrated Ethernet Control
  • Normal/Bridge Modes
  • Euroblock Inputs
  • Protection Circuitry
  • Expansion Modules Available

Ashly NE8250PE Network Enabled 8-Channel Amplifier w/ Protea DSP Specs

Amplifier Configuration
Model
NE8250PE
Channels
8
Class
Class-D
Power Output
Power per Channel
Configurable (e.g., 250W @ 4Ω)
Bridged Mode
Yes, for Higher Power
Total Power
High Power Density
Integrated Processing
DSP Platform
Protea
Processing per Channel
EQ, Crossover, Delay, Dynamics
Configuration Software
Ashly Network Manager
Network and Control
Network Interface
Ethernet
Control Protocols
Telnet, Third-Party Integration
Remote Management
Yes, via Network Software
Inputs and Outputs
Inputs
Analog (Terminal Block or XLR), Dante Option
Outputs
Speakon NL4 or Terminal Block
Impedance Support
4Ω, 8Ω, 70V/100V
Protection and Efficiency
Protections
Thermal, Short Circuit, Overload
Cooling
Variable Speed Fan
Efficiency
High (Class-D)

Key Features

  • Integrated Ethernet Control
  • Normal/Bridge Modes
  • Euroblock Inputs
  • Protection Circuitry
  • Expansion Modules Available
