SKU: nXE1.52

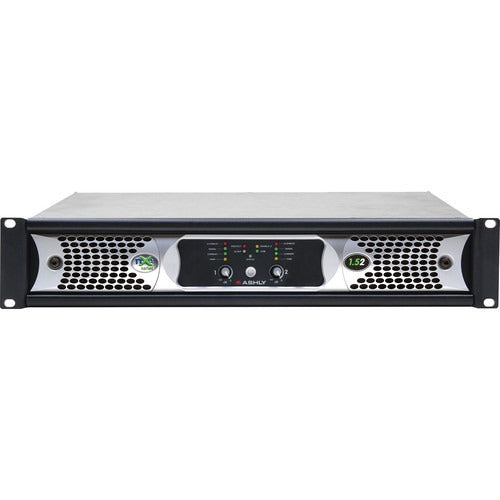

Ashly nXE1.52 2ch 3kWr Network Power Amplifier

$2,769.00

Items Included

Ashly nXE1.52 2ch 3kWr Network Power Amplifier

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The NXE1.52 Network Power Amplifier from Ashly Audio is the networkable version of the nX amplifier. It comes with Ethernet control, serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability. All these are controlled using Ashly Audio's Protea software suite. This amplifier is designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers. Read more

Features

  • 2-channel high-output, lightweight amplifier with programmable output on each channel
  • Power saving, Energy Management System (Ashly EMS) automatic <1W sleep mode is defeatable
  • Front panel power switch and level controls can be disabled for security
  • Neutrik Combo XLR: 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
  • Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or RS-232 converter (sold separately) for third party controllers (INA-1)
  • Uses Protea software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-time clock with event scheduler
  • Instant standby mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Auxiliary preamplifier outputs and fault condition logic outputs
  • Cobranet or Dante network audio (sold separately) and AES3 digital audio input with pass-through
  • Ducking at mixer, peak hold indicator, in/out per filter, key engage, lock per filter, and global lock

Business Financing Options Avaiable

The NXE1.52 Network Power Amplifier from Ashly Audio is the networkable version of the nX amplifier. It comes with Ethernet control, serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability. All these are controlled using Ashly Audio's Protea software suite. This amplifier is designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers. Read more

Features

  • 2-channel high-output, lightweight amplifier with programmable output on each channel
  • Power saving, Energy Management System (Ashly EMS) automatic <1W sleep mode is defeatable
  • Front panel power switch and level controls can be disabled for security
  • Neutrik Combo XLR: 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
  • Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or RS-232 converter (sold separately) for third party controllers (INA-1)
  • Uses Protea software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-time clock with event scheduler
  • Instant standby mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Auxiliary preamplifier outputs and fault condition logic outputs
  • Cobranet or Dante network audio (sold separately) and AES3 digital audio input with pass-through
  • Ducking at mixer, peak hold indicator, in/out per filter, key engage, lock per filter, and global lock

About the Ashly nXE1.52 2ch 3kWr Network Power Amplifier

The Ashly nXE1.52 is a high-power, network-enabled stereo power amplifier designed for demanding professional sound reinforcement applications where substantial power output and remote system management are required. This amplifier delivers exceptional power, capable of providing 1500 watts per channel into 4 ohms or 900 watts per channel into 8 ohms under continuous operation, and supports 70V/100V constant-voltage configurations for distributed speaker systems. This makes it suitable for driving large main loudspeaker arrays, subwoofers, or high-power distributed systems in large venues such as concert halls, stadiums, mega-churches, and outdoor festivals. The amplifier incorporates efficient Class-H technology, which optimizes power delivery while managing heat dissipation and energy consumption, contributing to reliable performance during extended high-output use.

Network connectivity is a central feature, allowing the amplifier to be integrated into a facility's IP network for comprehensive remote monitoring and control. Through a standard Ethernet connection, system administrators can access the unit via a web browser or Ashly's software to monitor real-time performance metrics such as output level, thermal status, and impedance, mute channels, and recall preset configurations. This remote capability, supporting protocols like SNMP and Telnet, facilitates proactive system management, simplifies troubleshooting, and enables seamless integration into larger third-party control systems. The amplifier's design emphasizes both immense power reserves and intelligent system oversight, reducing the need for manual intervention at the rack.

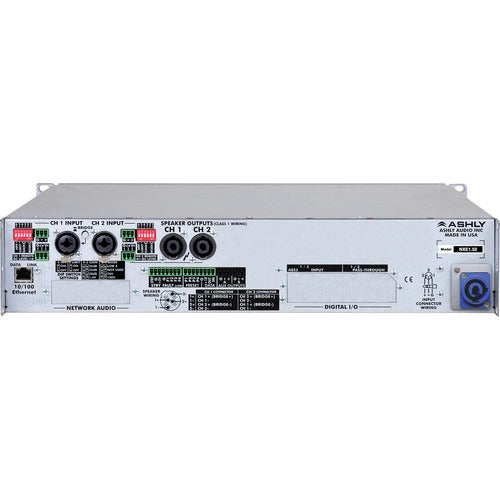

Built for reliability in the most demanding environments, the nXE1.52 features a robust power supply, comprehensive protection circuits (including thermal, short-circuit, overload, and DC fault protection), and a variable-speed fan for effective thermal management. Its 3U rack-mountable steel chassis is engineered for heavy-duty use, with a front panel that provides clear status indicators for power, signal, and faults. The rear panel includes balanced XLR and terminal block inputs, as well as robust binding post outputs. By combining massive power output with networked monitoring and control in a single unit, the Ashly nXE1.52 offers a powerful and intelligent amplification solution for large-scale fixed installations and touring systems where performance, reliability, and remote management are critical.

Key Features

  • 2-channel high-output, lightweight amplifier with programmable output on each channel
  • Power saving, Energy Management System (Ashly EMS) automatic <1W sleep mode is defeatable
  • Front panel power switch and level controls can be disabled for security
  • Neutrik Combo XLR: 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
  • Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or RS-232 converter (sold separately) for third party controllers (INA-1)
  • Uses Protea software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-time clock with event scheduler
  • Instant standby mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Auxiliary preamplifier outputs and fault condition logic outputs
  • Cobranet or Dante network audio (sold separately) and AES3 digital audio input with pass-through
  • Ducking at mixer, peak hold indicator, in/out per filter, key engage, lock per filter, and global lock

Ashly nXE1.52 2ch 3kWr Network Power Amplifier Specs

Amplifier Performance
Channels
2 (Stereo)
Power per Channel (4Ω)
1500W
Power per Channel (8Ω)
900W
Output Mode
Low-Z, 70V, 100V
Network & Control
Network Interface
Ethernet
Control Interface
Web Browser, Ashly Software
Remote Monitoring
Level, Thermal, Impedance, Mute
Protection & Safety
Protection Circuits
Thermal, Short, Overload, DC
Front Panel Indicators
Power, Signal, Fault
Inputs & Outputs
Input Connectors
XLR, Terminal Block
Output Connectors
Binding Posts
Physical & Cooling
Rack Units
3U
Cooling
Variable Speed Fan
Input Voltage
100-240V AC
Dimensions
19" x 5.25" x 16.9"

Key Features

  • 2-channel high-output, lightweight amplifier with programmable output on each channel
  • Power saving, Energy Management System (Ashly EMS) automatic <1W sleep mode is defeatable
  • Front panel power switch and level controls can be disabled for security
  • Neutrik Combo XLR: 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
  • Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or RS-232 converter (sold separately) for third party controllers (INA-1)
  • Uses Protea software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-time clock with event scheduler
  • Instant standby mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Auxiliary preamplifier outputs and fault condition logic outputs
  • Cobranet or Dante network audio (sold separately) and AES3 digital audio input with pass-through
  • Ducking at mixer, peak hold indicator, in/out per filter, key engage, lock per filter, and global lock
