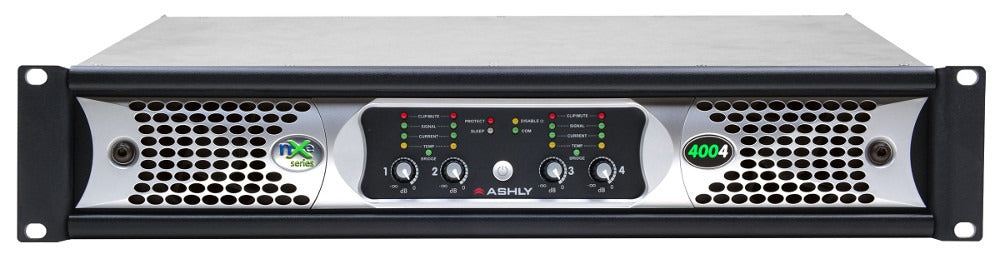

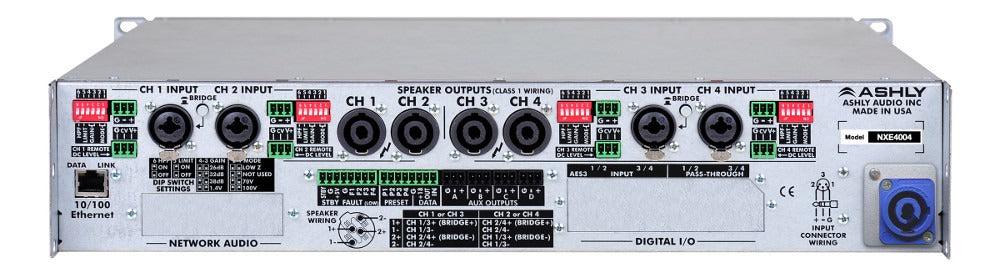

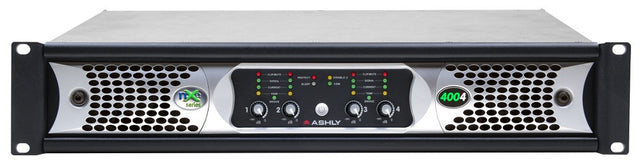

Ashly nXe4004BD 4-Channel Network Power Amplifier with OPDante and OPDAC4 Option Cards

Name: Ashly nXe4004BD 4-Channel Network Power Amplifier with OPDante and OPDAC4 Option Cards
Brand: AVGear.com
SKU: nXE4004BD
Price: 3639.00 USD
Availability: InStock

$3,639.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The NXE Series 4-Channel Networkable Multi-Mode Power Amplifier from Ashly comes pre-installed with OPDAC4 internal 4-Channel DAC with selectable HPF and OPDante Dante Network Audio Interface cards. The OPDante card enables access to digital audio networks at low latencies (83.3 μs) over fast Ethernet. It can be installed in the rear card slot of NXE series amplifiers. Signal can be routed from other Dante enabled devices by simply connecting a Cat5e or Cat6 cable to the card's primary or secondary (redundant) Ethernet ports. The amplifier is capable of driving 2 Ohms loads at full power and offers a maximum rated output power of 400W per channel at Low Z and 70V, and 100V modes. In addition, the amplifier is suitable for use in performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and places of worship. The multi-mode amplifier features an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply can auto-detect 120 or 240 VAC mains, and a Neutrik powerCON is used for the AC cord. Each channel features a selectable output mode of Low Z, 70V, or 100V, an 80 Hz high-pass filter, input limiter, and input gain settings of 26 dB, 32 dB, 38 dB, or 1.4V. Each channel comes with a remote DC level control. The amplifier comes with Neutrik XLR/TRS combo jack and Euroblock input connectors and Neutrik speakON output connectors. The unit features a front panel power switch and level controls that can be disabled. The LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. In addition, the power amplifier features an Ethernet control with a real-time clock for event scheduling. Read more

Features

Ethernet control using Protea NE software
Serial data control by Ashly programmable remotes or third party controllers
Aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional CobraNet or AES3 digital audio capability
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using PneS software and stored in the amplifier
Ashly remote control via iPad app for custom design of secure wireless control over a network
Features a switch-mode power supply that automatically detects 120 or 240 VAC operation
Selectable outputs on each channel allow you to choose the desired output mode
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Ashly EMS (Energy Management System) provides an automatic sleep-mode drawing less than 1W (defeatable)
Multiple internal power supplies provide increased channel separation and reliability
Selectable 80 Hz hi-pass filter, limiter, and input gain per channel via rear panel
Remote DC level control per channel
Extensive protection circuitry and continuously variable cooling fans
Ethernet port for software control and monitoring of amplifier functions with front panel COM activity LED
Serial data port available for optional Ashly WR-5 and RD-8C programmable remote controls (optional RS-232 converter INA-1 available for third party controllers)
Instant standby mode results in 30% reduction in idle power consumption that is triggered by contact closure, software control, or event scheduler
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Aux preamp line outputs for driving other amplifiers
Assignable fault condition logic outputs
Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors
Neutrik powerCON detachable AC mains connector

Business Financing Options Avaiable

View Available Financing

Features

Ethernet control using Protea NE software
Serial data control by Ashly programmable remotes or third party controllers
Aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional CobraNet or AES3 digital audio capability
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using PneS software and stored in the amplifier
Ashly remote control via iPad app for custom design of secure wireless control over a network
Features a switch-mode power supply that automatically detects 120 or 240 VAC operation
Selectable outputs on each channel allow you to choose the desired output mode
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Ashly EMS (Energy Management System) provides an automatic sleep-mode drawing less than 1W (defeatable)
Multiple internal power supplies provide increased channel separation and reliability
Selectable 80 Hz hi-pass filter, limiter, and input gain per channel via rear panel
Remote DC level control per channel
Extensive protection circuitry and continuously variable cooling fans
Ethernet port for software control and monitoring of amplifier functions with front panel COM activity LED
Serial data port available for optional Ashly WR-5 and RD-8C programmable remote controls (optional RS-232 converter INA-1 available for third party controllers)
Instant standby mode results in 30% reduction in idle power consumption that is triggered by contact closure, software control, or event scheduler
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Aux preamp line outputs for driving other amplifiers
Assignable fault condition logic outputs
Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors
Neutrik powerCON detachable AC mains connector

No products currently in stock

About the Ashly nXe4004BD 4-Channel Network Power Amplifier with OPDante and OPDAC4 Option Cards

The Ashly nXe Series nXE4004 is a sophisticated four-channel network power amplifier that blends high-current output with intelligent, software-defined control for modern installed audio systems. Each channel delivers substantial power via a robust amplifier design, making it suitable for driving a wide range of loudspeaker loads, from low-impedance high-fidelity speakers to 70V/100V distributed lines. A defining feature of the nXE4004 is its programmable output configuration, allowing each channel to be independently software-configured for specific operating modes, voltage taps, and processing parameters. This programmability eliminates the need for physical switches and jumpers, enabling complete system setup and adjustments to be made remotely via its Ethernet control interface.

Integrated digital signal processing is central to the amplifier's functionality, providing per-channel EQ, delay, crossover filters, and compressor/limiters. This onboard DSP allows system integrators to perform precise acoustic tuning, speaker optimization, and protective limiting directly within the amplifier, often reducing or eliminating the need for external processors. The Ethernet port facilitates network integration for control, monitoring, and audio transport, supporting Ashly's control protocols and, with optional cards, audio networking standards like Dante. Real-time monitoring of parameters such as output level, clipping, impedance, and temperature is accessible from a central computer, providing valuable system diagnostics.

Housed in a 2U rack-mountable chassis designed for optimal thermal management, the nXE4004 is built for reliable 24/7 operation in demanding commercial environments. Its combination of high power, programmable outputs, extensive DSP, and network control makes it a highly flexible and intelligent amplification platform. The Ashly nXE4004 is engineered for system architects who require a future-proof, software-configurable amplifier that can adapt to evolving system needs and provide centralized management within a networked audio ecosystem.

Key Features

Ethernet control using Protea NE software
Serial data control by Ashly programmable remotes or third party controllers
Aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional CobraNet or AES3 digital audio capability
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using PneS software and stored in the amplifier
Ashly remote control via iPad app for custom design of secure wireless control over a network
Features a switch-mode power supply that automatically detects 120 or 240 VAC operation
Selectable outputs on each channel allow you to choose the desired output mode
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Ashly EMS (Energy Management System) provides an automatic sleep-mode drawing less than 1W (defeatable)
Multiple internal power supplies provide increased channel separation and reliability
Selectable 80 Hz hi-pass filter, limiter, and input gain per channel via rear panel
Remote DC level control per channel
Extensive protection circuitry and continuously variable cooling fans
Ethernet port for software control and monitoring of amplifier functions with front panel COM activity LED
Serial data port available for optional Ashly WR-5 and RD-8C programmable remote controls (optional RS-232 converter INA-1 available for third party controllers)
Instant standby mode results in 30% reduction in idle power consumption that is triggered by contact closure, software control, or event scheduler
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Aux preamp line outputs for driving other amplifiers
Assignable fault condition logic outputs
Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors
Neutrik powerCON detachable AC mains connector
