SKU: nXP1.52D

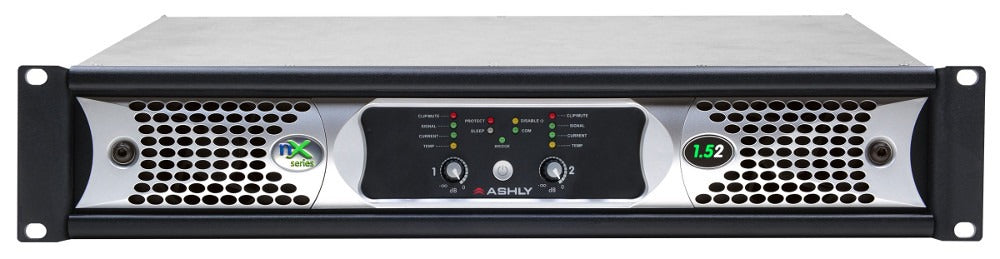

Ashly nXp1.52D 2-Channel Network Power Amplifier with OPDante Option Card

$3,759.00

Items Included

Ashly nXp1.52D 2-Channel Network Power Amplifier with OPDante Option Card

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The lightweight nXp1.5 2-Channel Multi-Mode Network Power Amplifier from Ashly features programmable output on each channel selectable via rear panel DIP switches with swept load impedance monitoring. Audio is processed via the 32-bit SHARC DSP at 48 or 96 kHz sample rates and a built-in signal generator is provided for test tone and noise-masking. The nXp1.5 amplifier comes pre-installed with Dante network audio module and features aux preamp outputs. Ethernet control is supported via the free Protea NE software (downloadable from Ashly's website) and serial data control is possible via Ashly programmable remotes or third party controllers (available separately). The Protea DSP (Digital Signal Processing) software is included for dynamics, gain, equalization, matrix mixer, crossover, delay, and metering. The amplifier is suitable for live sound and fixed installation sound systems at performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and places of worship. Read more

Features

  • 32-bit SHARC DSP processing at 48 or 96 kHz sample rates
  • Class-D switching amplifier technology
  • Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
  • Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
  • Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
  • Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Real-time clock with event scheduler
  • Assign automatic execution of selected functions and tasks
  • Event scheduler is programmed using the free Protea NE software and stored in the amplifier
  • Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
  • Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs, assignable
  • Signal generator function for test and noise masking
  • Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors
  • Neutrik powerCON detachable AC mains connector
  • Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fans
  • Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
  • Multiple internal power supplies-provides increased channel separation and reliability
  • Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Auto-switching 120 / 240 VAC power supply
  • cTUVus, CE, FCC, RoHS compliant

Business Financing Options Avaiable

The lightweight nXp1.5 2-Channel Multi-Mode Network Power Amplifier from Ashly features programmable output on each channel selectable via rear panel DIP switches with swept load impedance monitoring. Audio is processed via the 32-bit SHARC DSP at 48 or 96 kHz sample rates and a built-in signal generator is provided for test tone and noise-masking. The nXp1.5 amplifier comes pre-installed with Dante network audio module and features aux preamp outputs. Ethernet control is supported via the free Protea NE software (downloadable from Ashly's website) and serial data control is possible via Ashly programmable remotes or third party controllers (available separately). The Protea DSP (Digital Signal Processing) software is included for dynamics, gain, equalization, matrix mixer, crossover, delay, and metering. The amplifier is suitable for live sound and fixed installation sound systems at performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and places of worship. Read more

Features

  • 32-bit SHARC DSP processing at 48 or 96 kHz sample rates
  • Class-D switching amplifier technology
  • Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
  • Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
  • Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
  • Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Real-time clock with event scheduler
  • Assign automatic execution of selected functions and tasks
  • Event scheduler is programmed using the free Protea NE software and stored in the amplifier
  • Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
  • Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs, assignable
  • Signal generator function for test and noise masking
  • Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors
  • Neutrik powerCON detachable AC mains connector
  • Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fans
  • Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
  • Multiple internal power supplies-provides increased channel separation and reliability
  • Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Auto-switching 120 / 240 VAC power supply
  • cTUVus, CE, FCC, RoHS compliant

About the Ashly nXp1.52D 2-Channel Network Power Amplifier with OPDante Option Card

The Ashly nXp1.52 is a two-channel network power amplifier that combines efficient amplification with the flexibility of optional Dante audio networking. This amplifier delivers reliable Class D power for a variety of loudspeaker loads in commercial installations. Its defining feature is the inclusion of a slot for an optional OPDante card, which allows the amplifier to be seamlessly integrated into a Dante Audio over IP network. When the card is installed, the amplifier becomes a native Dante endpoint, capable of receiving digital audio streams for both channels directly over a standard Ethernet cable, enabling it to fit into modern, scalable networked audio systems.

In addition to its network audio potential, the nXp1.52 features onboard digital signal processing for each channel, accessible via its Ethernet control interface. This integrated DSP provides essential tools like parametric EQ, output delay, and limiting, allowing system integrators to optimize and protect each output zone directly from the amplifier. Remote management and monitoring via Ashly's software enable technicians to adjust settings, check status, and perform diagnostics from a central computer. The amplifier includes comprehensive protection against faults such as thermal overload and short circuits.

Housed in a compact 1U rack-mountable chassis, the nXp1.52 is designed for space-efficient installations. Its combination of two channels of amplification, optional Dante connectivity, onboard DSP, and network control makes it an intelligent and adaptable building block for contemporary audio systems. It is ideal for applications where the benefits of networked audio and remote processing are desired, providing a future-proof path for system expansion and integration.

Key Features

  • 32-bit SHARC DSP processing at 48 or 96 kHz sample rates
  • Class-D switching amplifier technology
  • Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
  • Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
  • Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
  • Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Real-time clock with event scheduler
  • Assign automatic execution of selected functions and tasks
  • Event scheduler is programmed using the free Protea NE software and stored in the amplifier
  • Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
  • Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs, assignable
  • Signal generator function for test and noise masking
  • Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors
  • Neutrik powerCON detachable AC mains connector
  • Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fans
  • Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
  • Multiple internal power supplies-provides increased channel separation and reliability
  • Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Auto-switching 120 / 240 VAC power supply
  • cTUVus, CE, FCC, RoHS compliant

Ashly nXp1.52D 2-Channel Network Power Amplifier with OPDante Option Card Specs

Amplifier Output
Channels
2
Amplifier Class
Class D
Network Expansion
Audio Network Option
Dante (via OPDante Card)
Control Interface
Ethernet
Integrated DSP
Yes, Per Channel
Processing & Management
DSP Functions
EQ, Delay, Limiter
Remote Monitoring
Yes
Physical Design
Rack Units
1 U
Connections
Speaker Output
Screw Terminal
Network Port
RJ45 Ethernet

Key Features

  • 32-bit SHARC DSP processing at 48 or 96 kHz sample rates
  • Class-D switching amplifier technology
  • Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
  • Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
  • Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
  • Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Real-time clock with event scheduler
  • Assign automatic execution of selected functions and tasks
  • Event scheduler is programmed using the free Protea NE software and stored in the amplifier
  • Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
  • Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs, assignable
  • Signal generator function for test and noise masking
  • Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors
  • Neutrik powerCON detachable AC mains connector
  • Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fans
  • Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
  • Multiple internal power supplies-provides increased channel separation and reliability
  • Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Auto-switching 120 / 240 VAC power supply
  • cTUVus, CE, FCC, RoHS compliant
