Description

The lightweight nXp800 4-Channel Multi-Mode Network Power Amplifier from Ashly features programmable output on each channel selectable via rear panel DIP switches with swept load impedance monitoring. Audio is processed via the 32-bit SHARC DSP at 48 or 96 kHz sample rates and a built-in signal generator is provided for test tone and noise-masking. The nXp800 amplifier comes pre-installed with Dante network audio module and features aux preamp outputs. Ethernet control is supported via the free Protea NE software (downloadable from Ashly's website) and serial data control is possible via Ashly programmable remotes or third party controllers (available separately). The Protea DSP (Digital Signal Processing) software is included for dynamics, gain, equalization, matrix mixer, crossover, delay, and metering. The amplifier is suitable for live sound and fixed installation sound systems at performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and places of worship. Read more

Features

32-bit SHARC DSP processing at 48 or 96 kHz sample rates
Class-D switching amplifier technology
Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using the free Protea NE software and stored in the amplifier
Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
Aux preamp line outputs for driving other amplifiers
Fault condition logic outputs, assignable
Signal generator function for test and noise masking
Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors
Neutrik powerCON detachable AC mains connector
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Remote DC level control per channel
Extensive protection circuitry, continuously variable cooling fans
Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
Multiple internal power supplies-provides increased channel separation and reliability
Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
Auto-switching 120 / 240 VAC power supply
cTUVus, CE, FCC, RoHS compliant

Business Financing Options Avaiable

View Available Financing

Features

32-bit SHARC DSP processing at 48 or 96 kHz sample rates
Class-D switching amplifier technology
Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using the free Protea NE software and stored in the amplifier
Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
Aux preamp line outputs for driving other amplifiers
Fault condition logic outputs, assignable
Signal generator function for test and noise masking
Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors
Neutrik powerCON detachable AC mains connector
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Remote DC level control per channel
Extensive protection circuitry, continuously variable cooling fans
Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
Multiple internal power supplies-provides increased channel separation and reliability
Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
Auto-switching 120 / 240 VAC power supply
cTUVus, CE, FCC, RoHS compliant

No products currently in stock

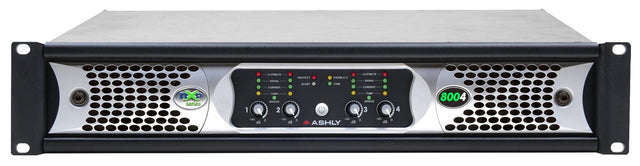

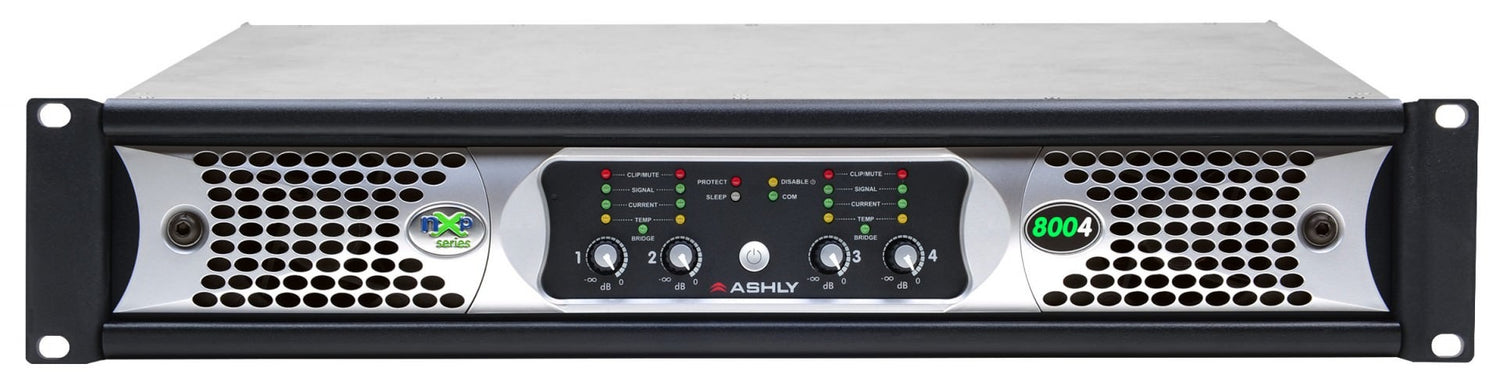

About the Ashly nXp8004D 4-Channel Network Power Amplifier, 800W at 2 Ohms with Protea DSP & OPDante Card

The Ashly nXp Series nXP8004 is a high-density, intelligent four-channel network amplifier designed for demanding applications requiring substantial power and sophisticated system control. Each channel delivers 800 watts of robust, efficient Class D amplification, making it capable of driving high-performance loudspeakers in large installed venues, touring systems, or distributed audio networks. A defining characteristic of this amplifier is its programmable output configuration, allowing each channel to be software-defined via network for specific operating modes such as low-impedance, 70V, or 100V operation. This eliminates physical switches and jumpers, enabling complete system setup, optimization, and reconfiguration remotely from a computer running the included Protea Software Suite.

The integration of the Protea Software Suite provides this amplifier with a deep, professional-grade digital signal processing engine directly onboard. Accessible through an Ethernet connection, the DSP offers comprehensive per-channel tools including parametric EQ, output delay, crossover filters, and compressor/limiters. This allows for meticulous acoustic tuning, speaker system optimization, and protective limiting without the need for any external processor. The software provides a graphical interface for intuitive system design, real-time monitoring of critical parameters like output level, temperature, and impedance, and the storage of multiple presets for different events or operating schedules.

Housed in a 2U rack-mountable chassis engineered for optimal thermal performance, the nXP8004 is built for reliable 24/7 operation. Its combination of exceptional power density, fully programmable outputs, extensive Protea DSP, and networked control makes it a highly flexible and intelligent amplification platform. The Ashly nXP8004 is engineered for system architects who require a future-proof, software-configurable powerhouse that can serve as the central amplification and processing core for the most sophisticated audio networks.

Key Features

32-bit SHARC DSP processing at 48 or 96 kHz sample rates
Class-D switching amplifier technology
Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using the free Protea NE software and stored in the amplifier
Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
Aux preamp line outputs for driving other amplifiers
Fault condition logic outputs, assignable
Signal generator function for test and noise masking
Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors
Neutrik powerCON detachable AC mains connector
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Remote DC level control per channel
Extensive protection circuitry, continuously variable cooling fans
Power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1W
Multiple internal power supplies-provides increased channel separation and reliability
Instant standby mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
Auto-switching 120 / 240 VAC power supply
cTUVus, CE, FCC, RoHS compliant
