Lab Gruppen  |  SKU: D 200:4L_US4

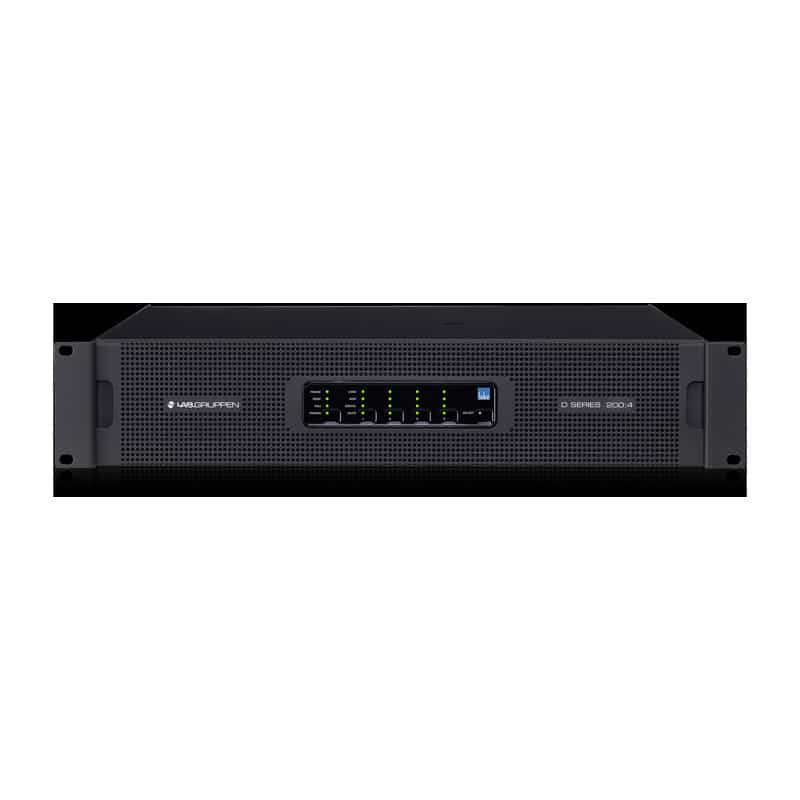

Lab Gruppen D 20:4L 20,000W Amplifier with 4 Flexible Output-Channels, Lake Digital Signal Processing and Digital Audio Networking for Installation Applications

$10,100.00
Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

D 200:4L Combines 20000 W of Flexible Power with the Latest Lake DSP, DANTE Digital Audio Networking and Advanced System Integrity Monitoring.

The D 200:4L is based on the same foundation of robust, high-power amplifier technologies as our renowned PLM Series – an amplifier platform with a proven record of reliability and sonic performance on the world’s most grueling concert tours and in
high-profile, large-scale installations.

With the D 200:4L, those same core technologies have been updated and refocused to provide the ultimate solution for the most demanding digitally networked installed sound applications – in stadia, arenas, theme parks, performing arts centers, racecourses and other large commercial sound installations.

In addition to legendary Lab Gruppen reliability and sonic excellence, the D Series incorporates newly refined outputs stage technologies along with installation-targeted hardware and software features that optimize amplifier system design and configuration. Together, these new technologies allow systems integrators to minimize both initial equipment costs and end users’ long-term energy consumption.



Features

  • 20,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts channel outputLake digital signal processing for unparalleled loudspeaker management and system controlIntegrated 8x8 channels of dual redundant Dante* digital audio networking with AES67 support4 x 4,400 Watts into 2 Ohms, 4 x 5,000 Watts into 2.67 Ohms, 4 x 4,400 Watts into 4 Ohms, 4 x 2,300 Watts into 8 Ohms, 4 x 1,150 Watts into 16 Ohms, 4 x 3,300 Watts into Hi-Z 70 V, 4 x 4,700 Watts into Hi-Z 100 VProven and reliable Class-TD output stage with proprietary Intercooler high-efficiency cooling systemRational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channelsBest-in-class Power Factor Correction (PFC) with Current Draw Modelling reduces running costs and minimizes environmental impactUnder-Voltage Limiting (UVL) for continued operation during severe mains supply voltage dropsDedicated on-board surveillance and load monitoring for mass notification applicationsRedundant audio inputs and on-board system surveillance for voice alarm systemsCAFE (Configuring Amplifiers For the Environment) software for design, system planning, equipment planning, installation and commissioning

Testing Notes

In The Box

  • Lab Gruppen D 20:4L 20,000W Amplifier with 4 Flexible Output-Channels, Lake Digital Signal Processing and Digital Audio Networking for Installation Applications
