Midas  |  SKU: DL155-UL

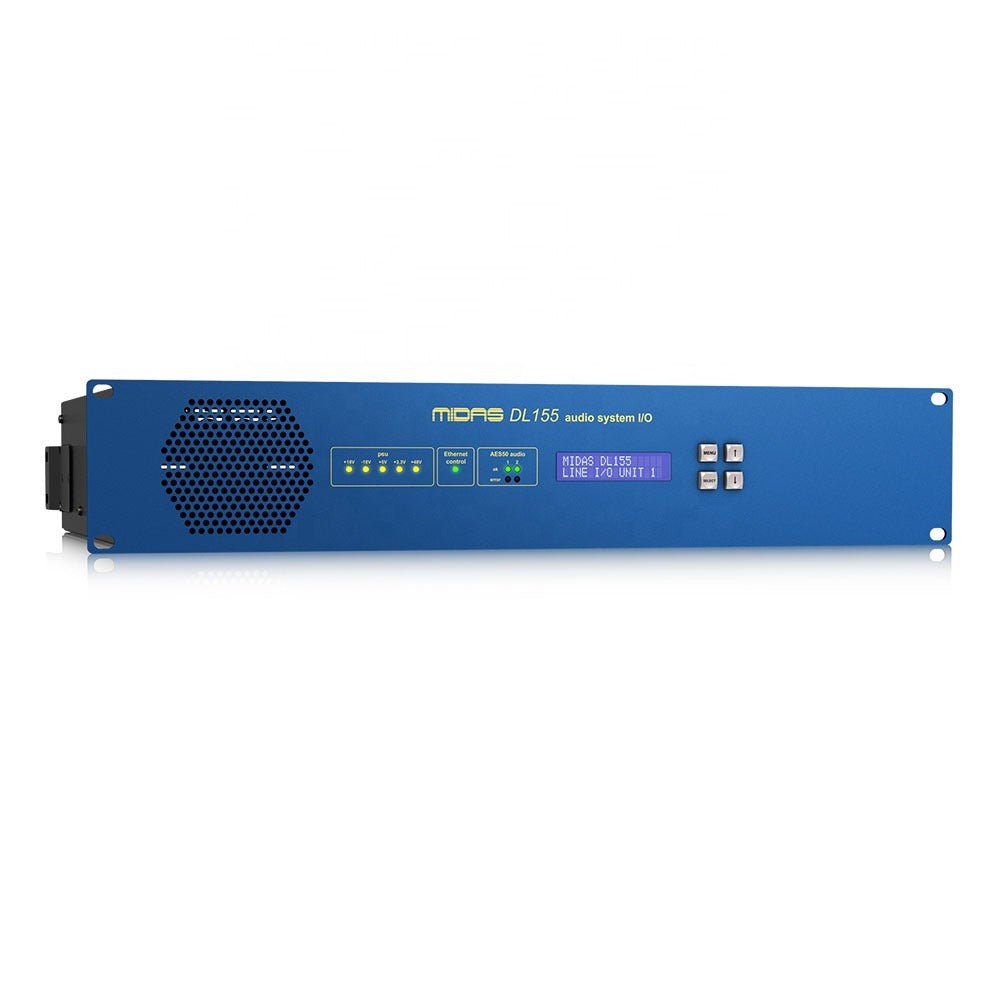

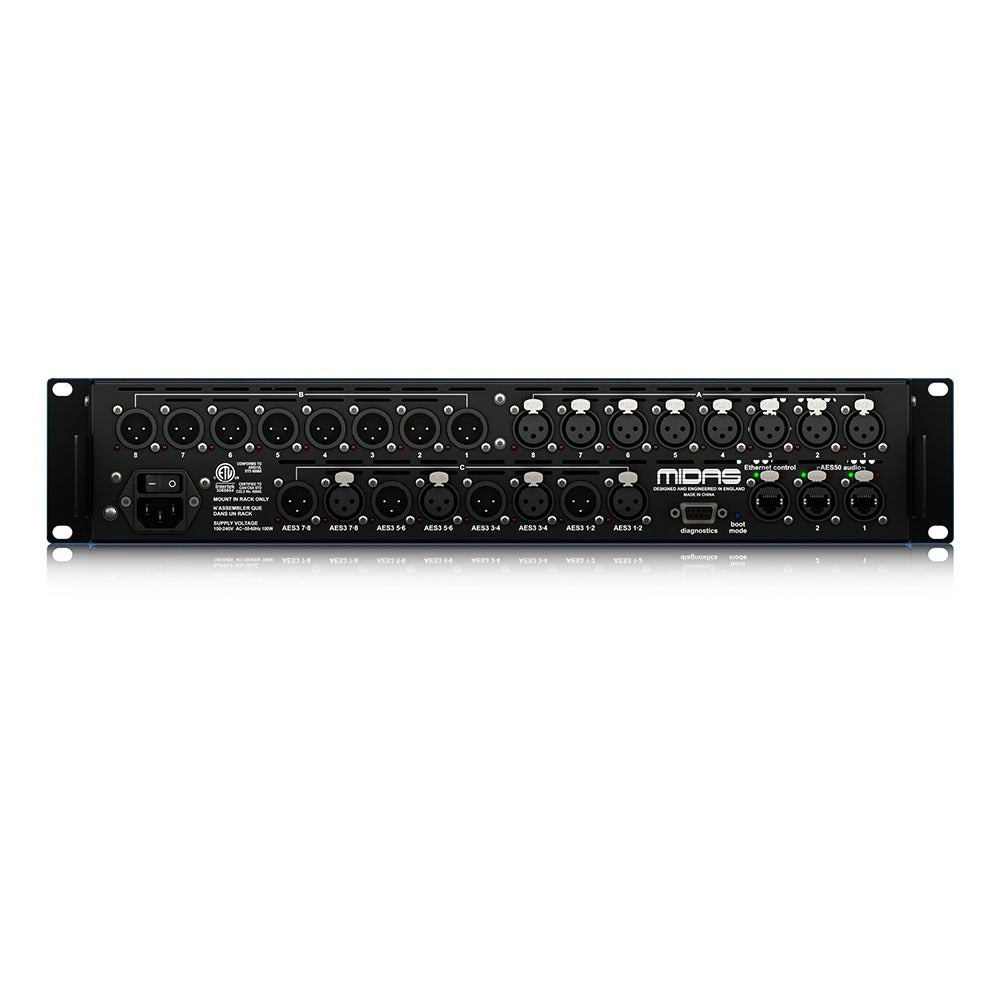

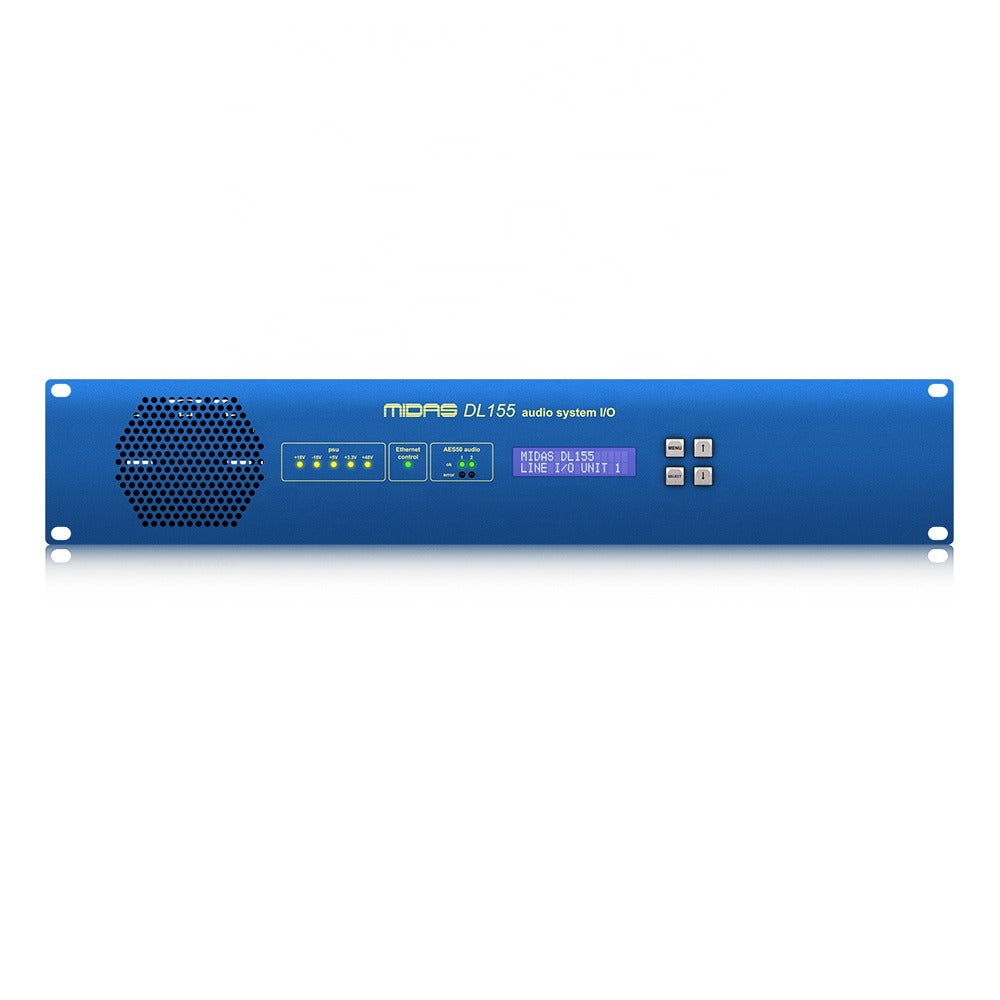

Midas DL155-UL 16 Input, 16 Output Stage Box with 8 Microphone Preamplifiers and AES3 Digital Interface

$3,349.00
Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

DL155 is a 2U 19" fixed-configuration rack I/O unit with 8 mic/line level inputs, 8 line level outputs and an 8 channel digital AES3 (AES/EBU) interface, and delivers legendary Midas sound quality utilising our time-tested and road-proven technologies. Featuring award-winning Midas microphone preamplifiers with 2.5 dB analogue gain steps and two AES50 network ports providing dual redundancy, the DL155 is the ideal partner to all Midas PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.

This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment.

Features

  • 8 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
  • 8 AES3 (AES/EBU) digital inputs and outputs
  • 8 electronically balanced low impedance line level outputs
  • Remote operation up to 100 m via CAT5/5e cable
  • 24 bit audio operation with96 kHz sample rate
  • Open architecture allows for future 48 kHz operation
  • All settings programmable from front panel controls or console
  • PSU status indicator LEDs and configuration LCD display on front panel
  • Supports dual redundant AES50 networks
  • Features industry standard RJ-45 AES50 network ports
  • Rugged 2U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply

Testing Notes

In The Box

Midas DL155-UL 16 Input, 16 Output Stage Box with 8 Microphone Preamplifiers and AES3 Digital Interface
