Theatrixx Technologies  |  SKU: Theatrixx-XVVRMSDI2FIBERM3

Theatrixx Technologies xVision Reversible Module (3G-SDI to Fiber, Multimode, OpticalCON Quad)

$766.00
Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

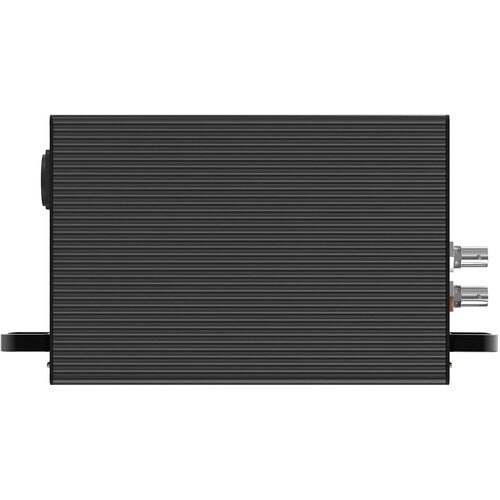

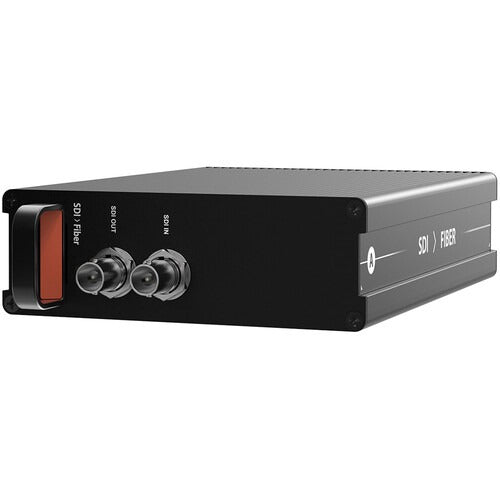

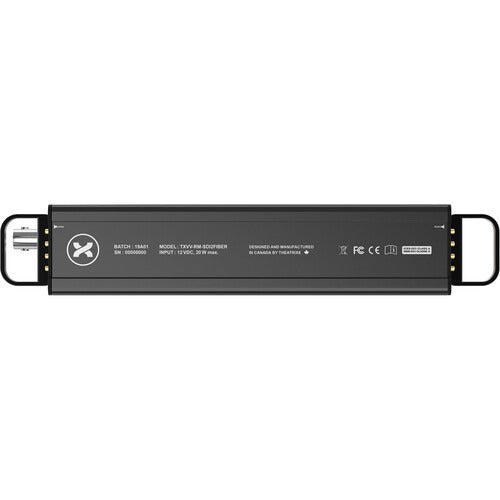

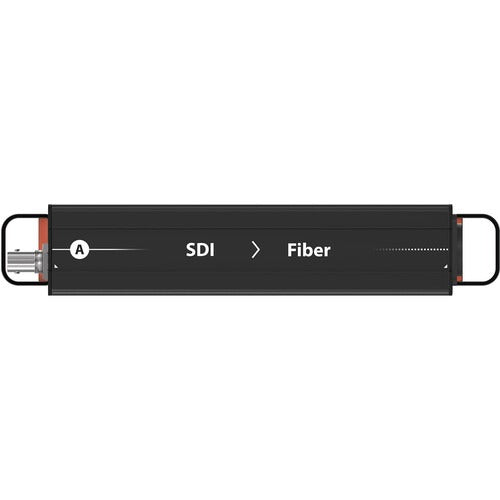

The Theatrixx XVVRM2SDI2FIBER Dual SDI to Fiber Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Features

  • Integrated Power: Locking PowerCON input and a built-in AC outlet to power other nearby gear like projectors or laptops.

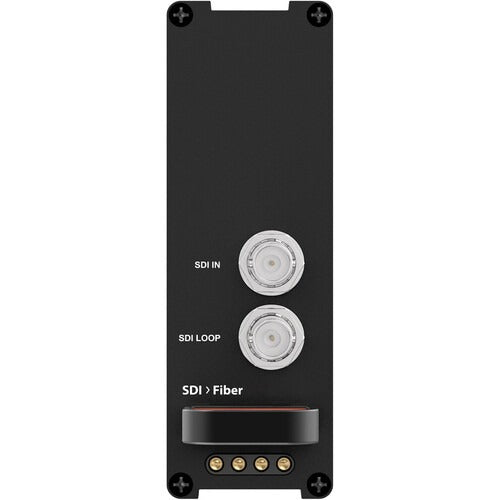

  • Dual SDI Input/Loop-Thru: Accepts two 3G/HD/SD-SDI BNC inputs with a reclocked SDI loop-thru on BNC connectors.

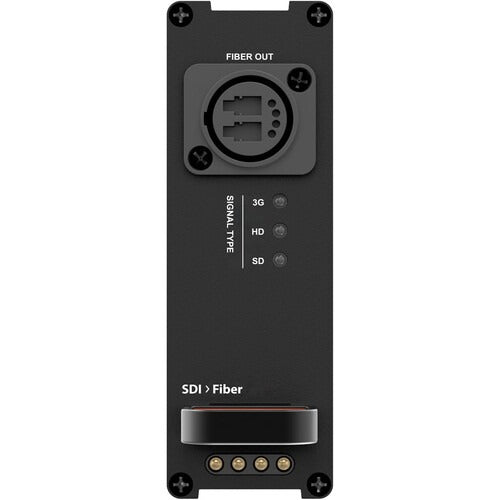

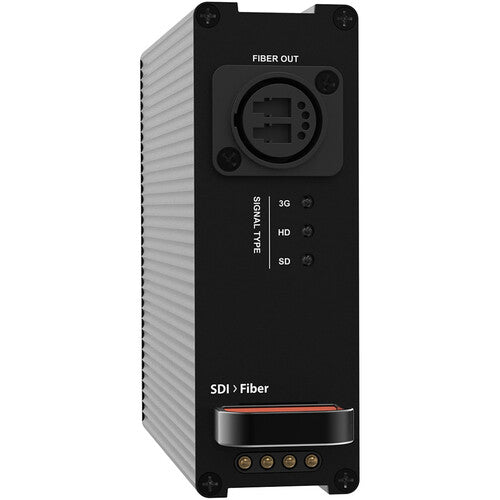

  • SFP-Based Fiber Output: Uses an SFP module for interoperability, supporting Multimode fiber with an OpticalCON QUAD connector.
  • Tour-Ready Design: Rugged enclosure, magnetic stacking system, non-skid pads, and multiple mounting options (C-clamp, wall, belt).
  • Plug-and-Play: Simple operation with clear status LED indicators for quick troubleshooting.
  • Professional Grade: Designed for live events, with high-quality video conversion and reliable performance.

Testing Notes

In The Box

Theatrixx Technologies xVision Reversible Module (3G-SDI to Fiber, Multimode, OpticalCON Quad)
