Theatrixx Technologies  |  SKU: Theatrixx-XVVRM-SDI2AUDIO

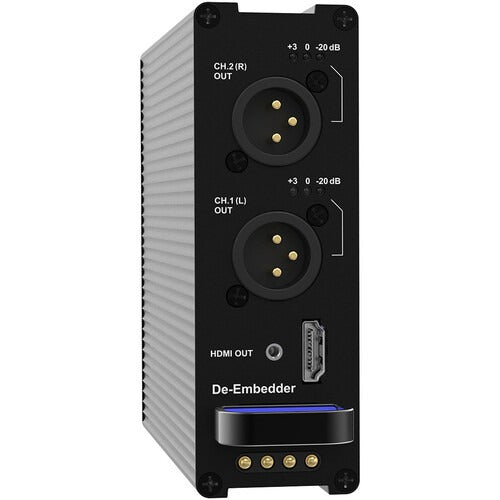

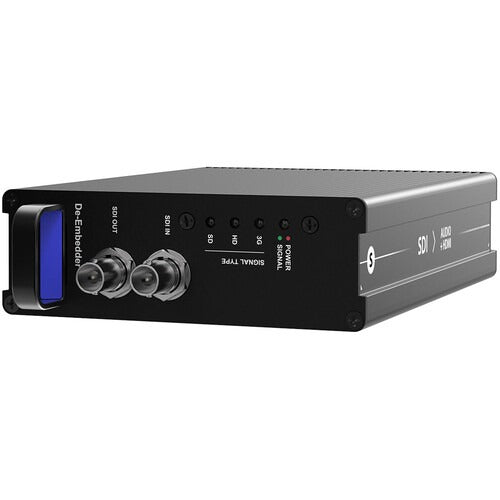

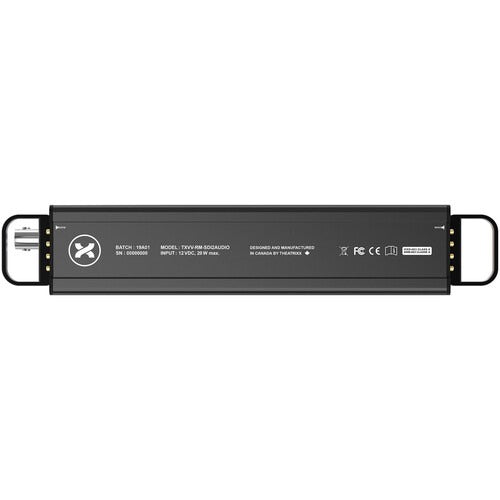

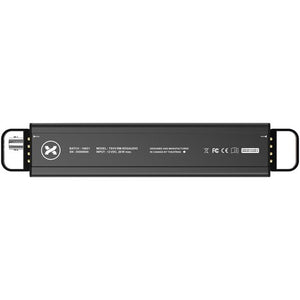

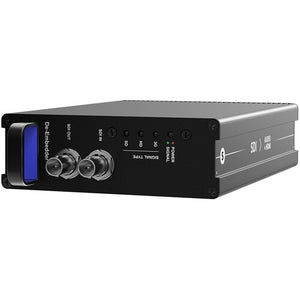

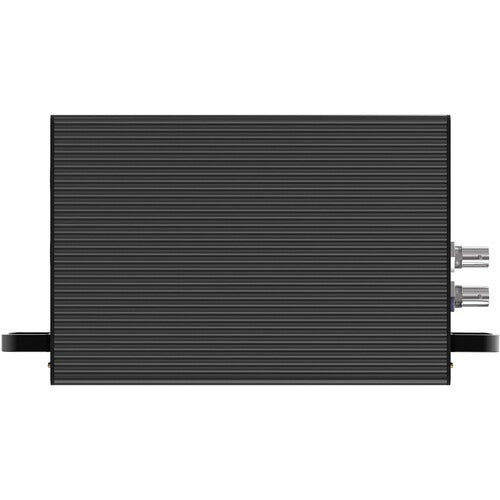

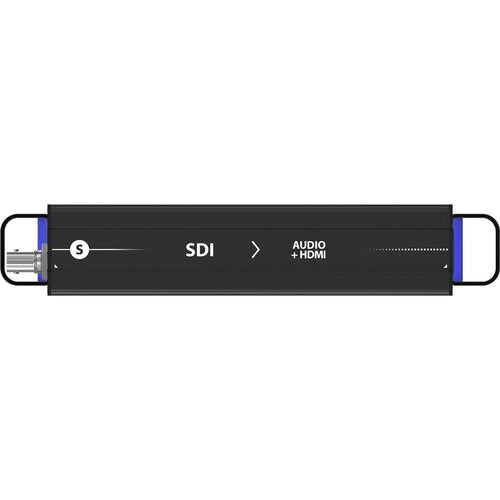

Theatrixx XVVRM-SDI2AUDIO Reversible Module - De-Embedder - 3G-SDI to HDMI1.2 + Audio

$599.00
Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

The Theatrixx XVVRM-SDI2AUDIO is an SDI Audio De-Embedder Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Features

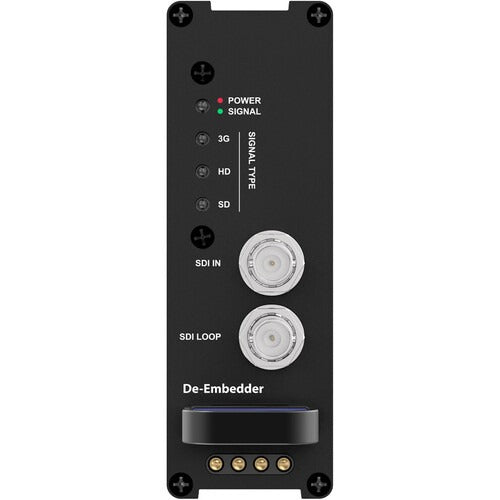

  • Video Input: 1x 3G/HD/SD SDI BNC
  • Loop-Thru: 1x 3G/HD/SD SDI BNC

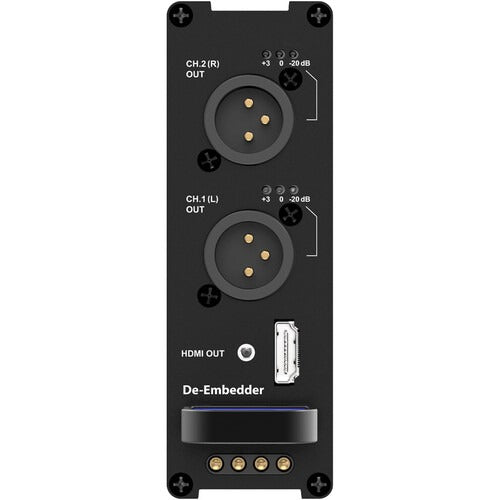

  • Video Output: 1x HDMI 1.2 type A with locking system
  • Audio Output: 2x Balanced + 4dB XLR (analog) each with a 3-segment LED meter
  • 3G Format Support: 1080p50, 1080p59.94, 1080p60
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
  • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
  • SDI Color Space: YUV and RGB
  • SDI Auto Switching: Automatically detects incoming signal format
  • De-Embedding: SDI Channels 1 & 2
  • SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M

Testing Notes

In The Box

Theatrixx XVVRM-SDI2AUDIO Reversible Module - De-Embedder - 3G-SDI to HDMI1.2 + Audio
