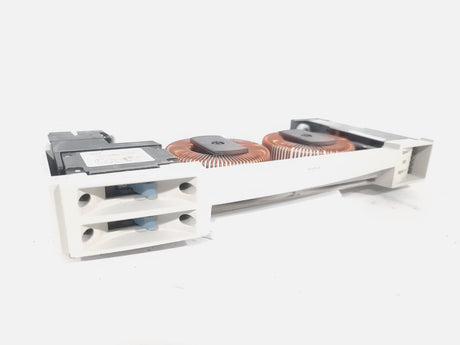

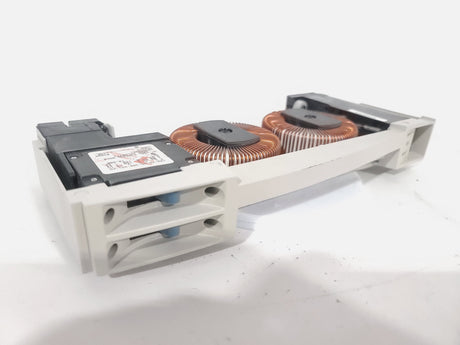

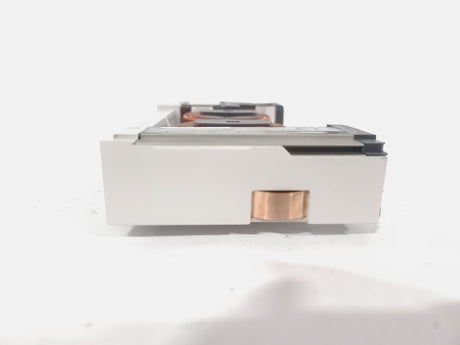

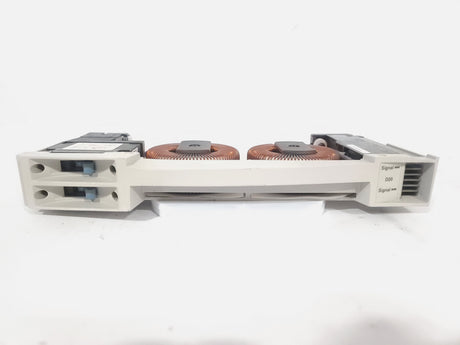

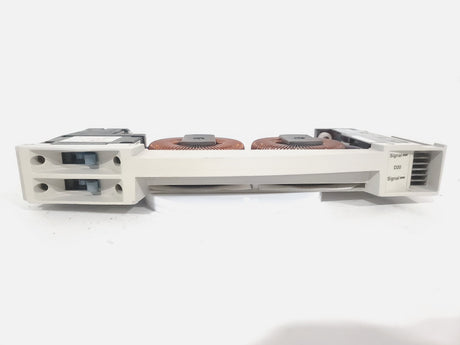

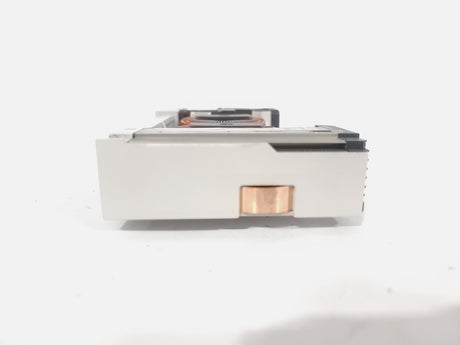

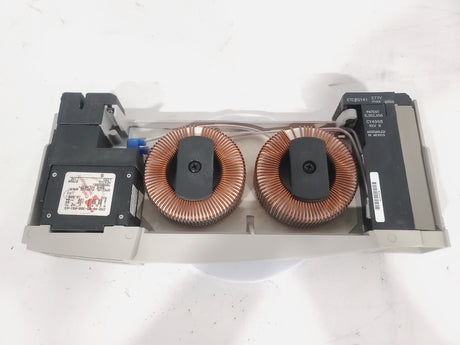

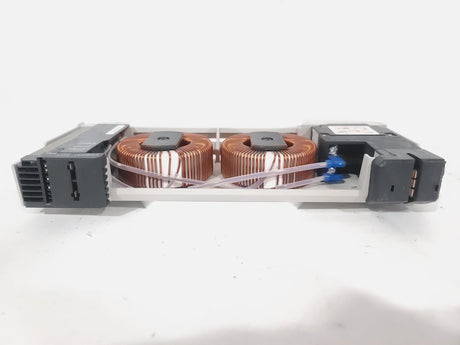

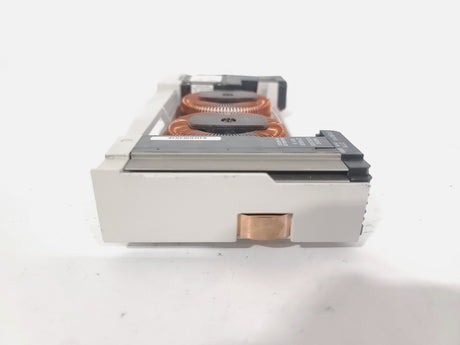

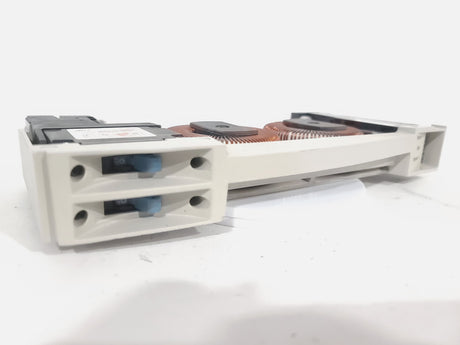

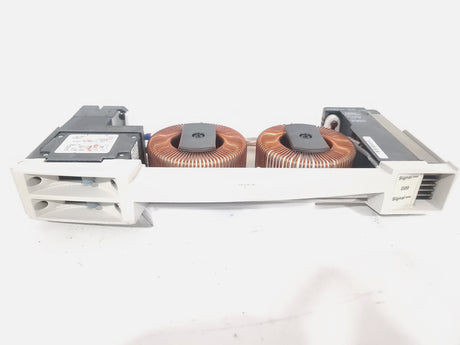

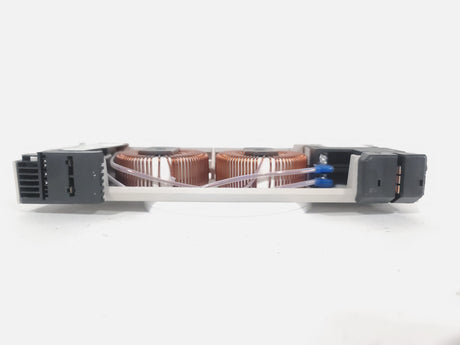

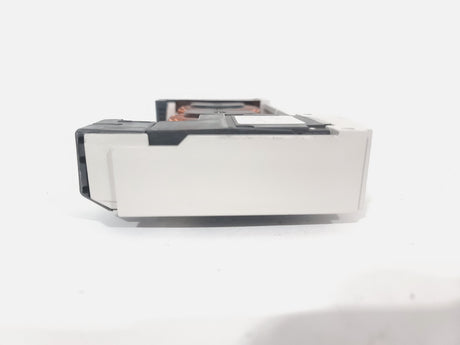

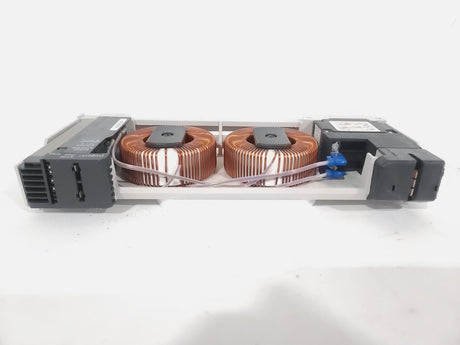

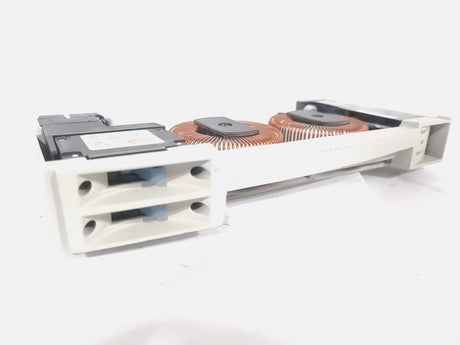

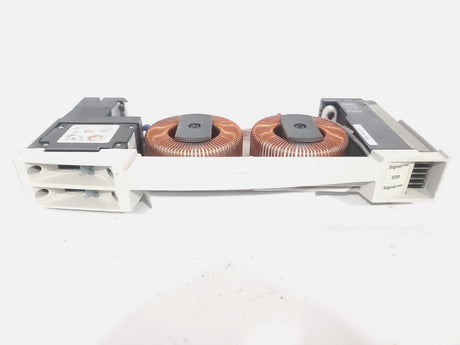

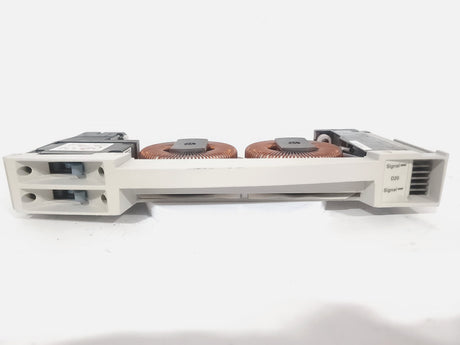

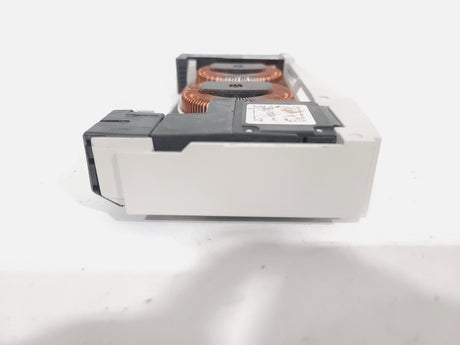

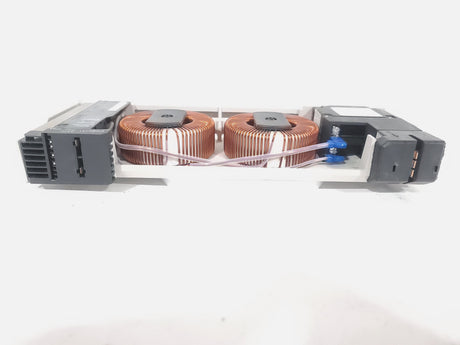

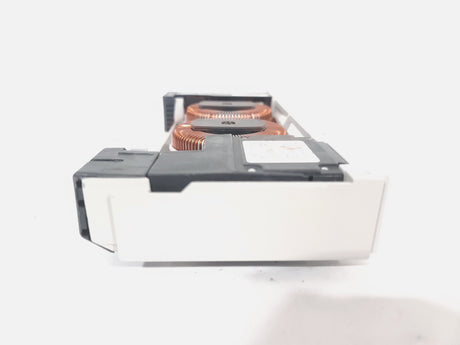

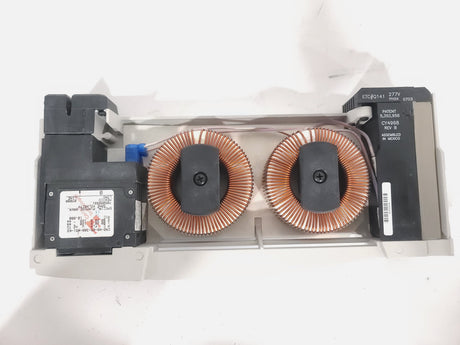

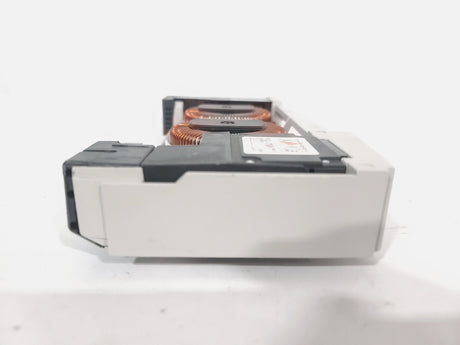

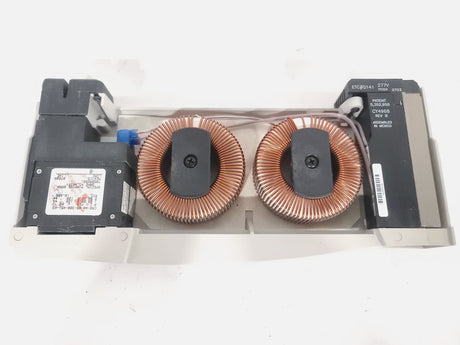

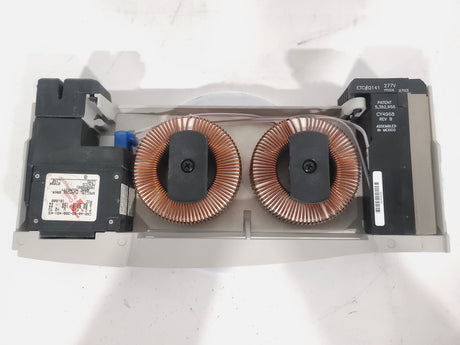

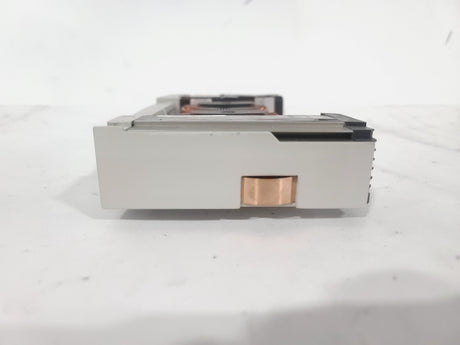

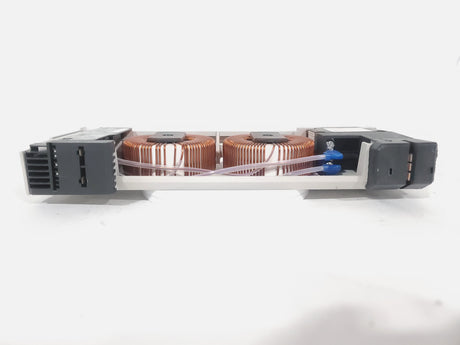

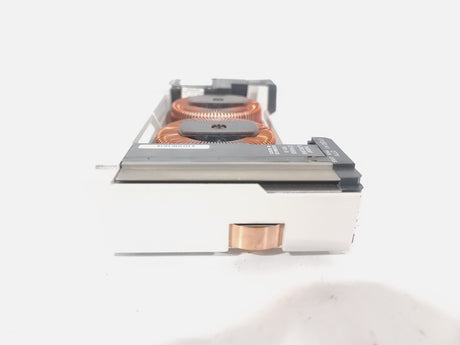

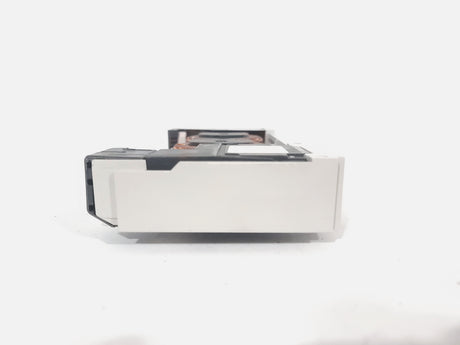

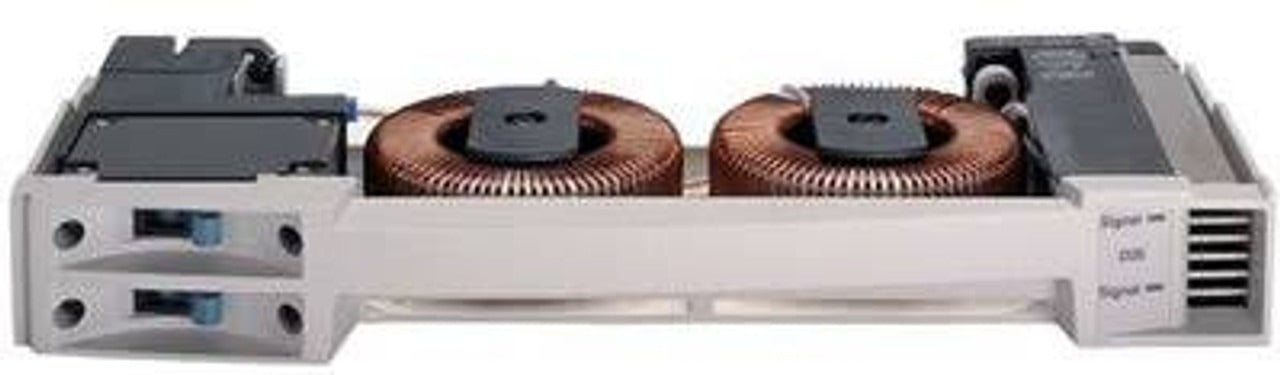

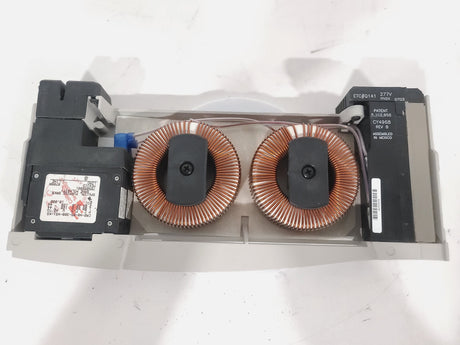

The ETC D20 is a professional-grade, dual-channel dimmer module designed for installation within ETC's renowned Sensor+ dimmer racks, forming the core power control infrastructure for theatrical, broadcast, and architectural lighting systems. Each module houses two independent 20-amp dimming circuits in a compact, modular form factor that slides into a designated slot in the rack chassis. It is engineered to provide smooth, flicker-free control of incandescent and resistive lighting loads, translating low-voltage control signals from a lighting console into precisely regulated AC power output for the fixtures. The module utilizes advanced technology, such as IGBT (Insulated-Gate Bipolar Transistor) switching and sophisticated filtering, to ensure high-performance dimming across the entire intensity curve, from a subtle glow to full brightness, while minimizing audible noise and electromagnetic interference.

A key feature of the D20 module is its integration with the Sensor rack's comprehensive monitoring and diagnostics system. It communicates with the rack's brain, providing real-time data on output current, temperature, and operational status, which can be accessed remotely via network interfaces. This intelligence allows facility managers and technicians to proactively monitor the health of the dimming system, identify potential overloads or faults on individual circuits, and streamline troubleshooting. The module is designed for both safety and serviceability, incorporating protection against short circuits, overloads, and overheating, and is constructed to be easily removable and replaceable without the need for tools, minimizing downtime during maintenance.

The reliability and density of the D20 make it a fundamental building block for venues requiring a large number of controlled circuits in a centralized location, such as theaters, television studios, concert halls, and houses of worship. By consolidating dimming into a modular rack system, it offers superior organization, cooling, and safety compared to distributed dimmers. Each 20-amp circuit can typically handle up to 2,400 watts of load at 120V, making it suitable for a wide range of lighting instruments from small fixtures to powerful fresnels. The ETC D20 dimmer module exemplifies the marriage of robust power handling with intelligent control, delivering the dependable, precise, and scalable dimming performance that lighting professionals rely on for critical applications.
