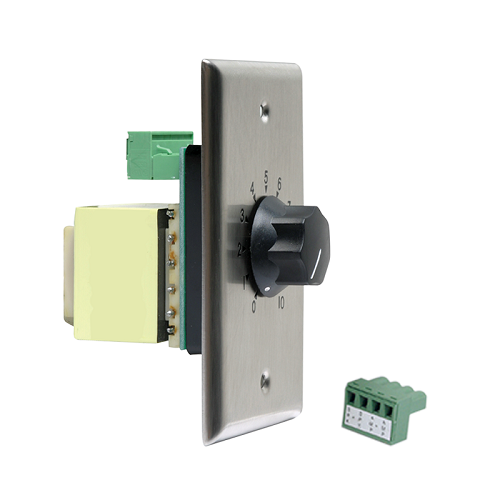

The Atlas Sound AT10-PA is a deluxe, plate-mounted commercial audio attenuator designed primarily for 25V/70.7V constant voltage speaker systems. Its core function is to provide local, incremental volume control for a single zone or speaker within a distributed audio system, making it ideal for environments like offices, retail spaces, and restaurants. The "PA" suffix denotes a crucial feature: a built-in SPDT (Single Pole Double Throw) priority relay. This relay allows an external 24 VDC control signal (often from a paging system amplifier) to bypass the local volume setting and deliver full program level audio to the loudspeakers, ensuring that important announcements or emergency signals are always heard clearly.

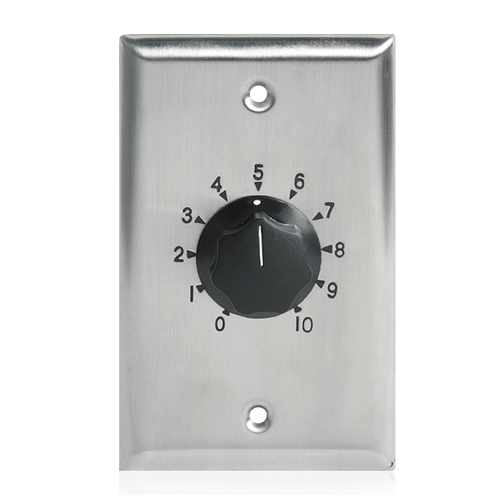

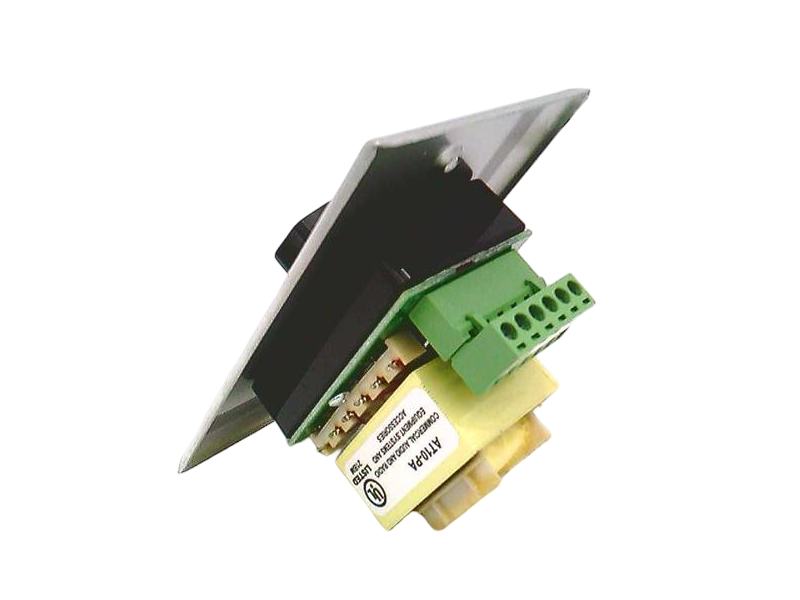

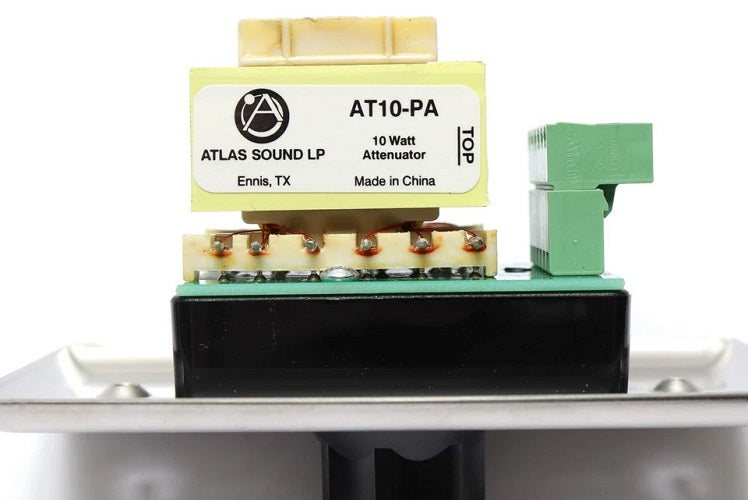

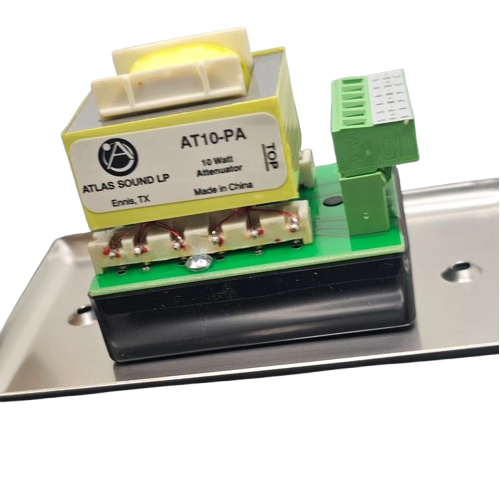

The attenuator utilizes a high-quality auto transformer design, which offers advantages over simple resistor-based controls, such as low insertion loss and an excellent frequency response, maintaining audio fidelity across its entire operational range. Volume adjustment is accomplished in ten make-before-break steps plus a positive off position, providing a total attenuation of 33 dB. Silver-plated contacts ensure noise-free operation when adjusting the volume dial. The unit is designed to mount into a standard single-gang electrical box, and its faceplate is durable stainless steel, fitting into most professional installations.

For installation flexibility and safety, the AT10-PA is UL Listed, ensuring it meets relevant safety standards. Wiring is simplified via a removable terminal block, which is also used for the 24VDC relay control connections. The product is a workhorse component in commercial audio, known for its reliability and its specific functionality of integrating a priority page override into standard volume control applications.
