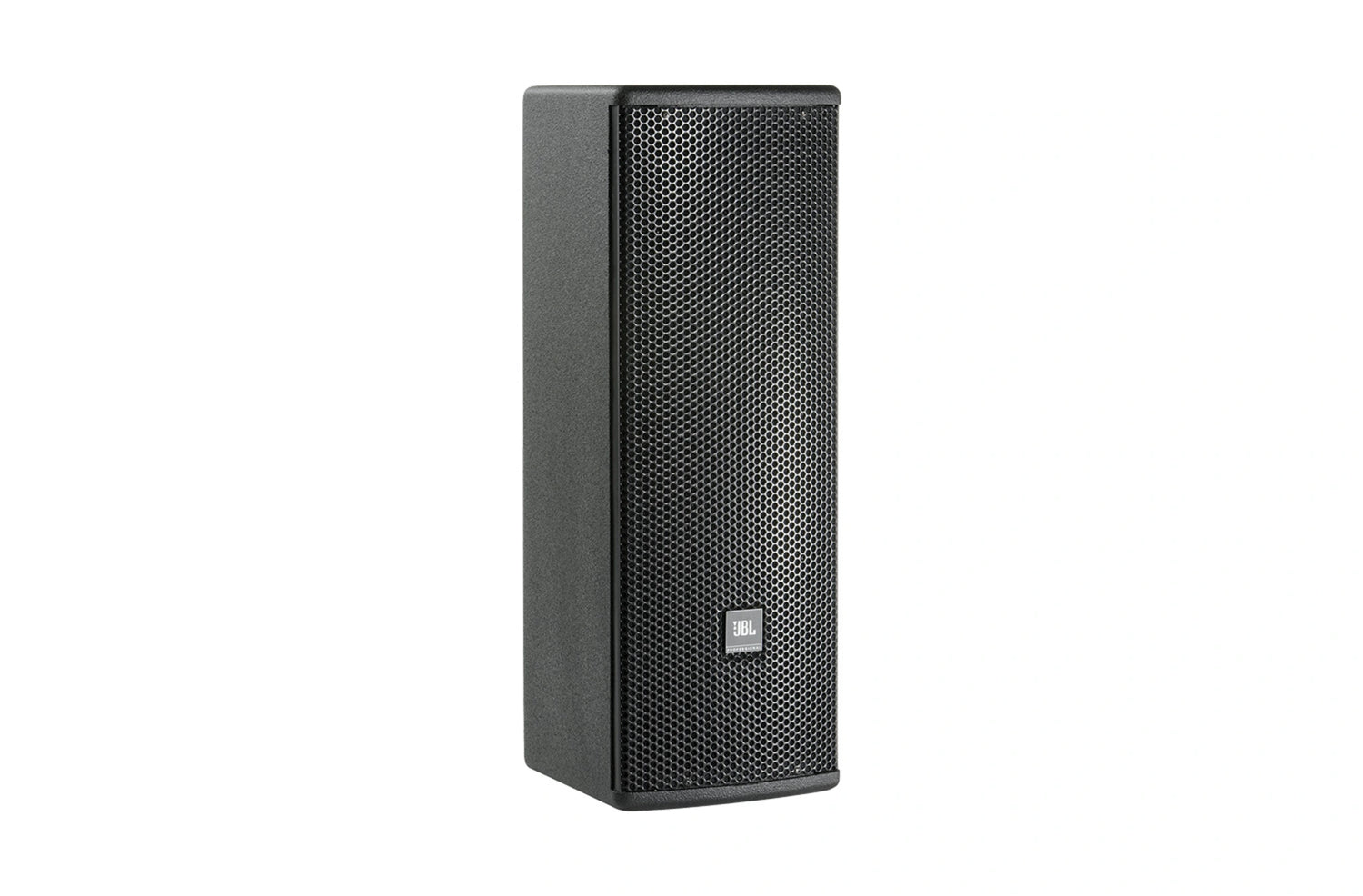

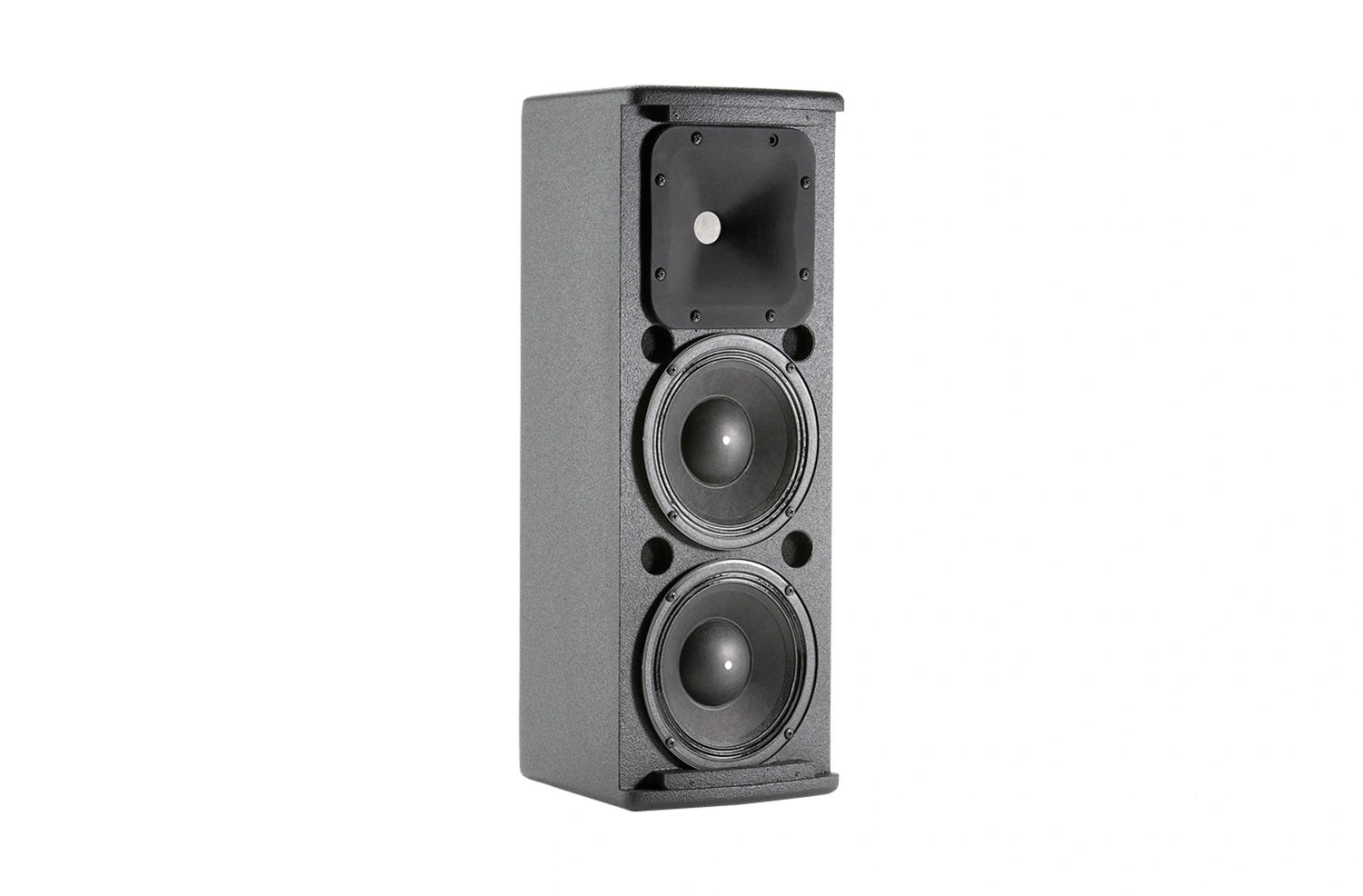

JBL MS26 6" 2-Way Ultra Compact Full Range Loudspeaker

$0.00

Items Included

JBL MS26 6" 2-Way Ultra Compact Full Range Loudspeaker

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

The model MS26 is a full range system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings, thus making it the ideal choice for under balcony, column and wall mounting. The high frequency device is a 1” exit composite diaphragm tweeter integrated to a newly designed eliptical waveguide. The combination exhibits smooth power response resulting in extremely natural voicing. With a nominal 100 x 70° coverage pattern the system provides even coverage for all “fill” type applications. JBL transducers combined with an optimized passive network, incorporating SonicGuardTM, provide reliable performance associated with JBL loudspeaker systems.The enclosure has been design to work in the vertical plane as well as the horizontal. Mounting points are provided on the end panels to support a wall mount bracket. The enclosure also provides a point at which to attach an Omni Mount type bracket (MTC-52/51).The rugged plywood construction of the enclosure, along with a textured DuraFlex finish and a heavy duty zinc treated steel, foam-backed grille and treated cones enable this Marquis Series enclosure to meet with environmental test specifications.Designed for permanent installation, the MS26 is part of the Marquis Series, a complete range of installation loudspeaker systems. Read more

Features

  • 2 x 6" LF transducers
  • 1" exit composite tweeter
  • Ultra compact enclosure
  • DuraFlex finish, tough, weather-resistant and paintable
  • 2 Suspension points (M10 Thread) yoke bracket

Business Financing Options Avaiable

The model MS26 is a full range system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings, thus making it the ideal choice for under balcony, column and wall mounting. The high frequency device is a 1” exit composite diaphragm tweeter integrated to a newly designed eliptical waveguide. The combination exhibits smooth power response resulting in extremely natural voicing. With a nominal 100 x 70° coverage pattern the system provides even coverage for all “fill” type applications. JBL transducers combined with an optimized passive network, incorporating SonicGuardTM, provide reliable performance associated with JBL loudspeaker systems.The enclosure has been design to work in the vertical plane as well as the horizontal. Mounting points are provided on the end panels to support a wall mount bracket. The enclosure also provides a point at which to attach an Omni Mount type bracket (MTC-52/51).The rugged plywood construction of the enclosure, along with a textured DuraFlex finish and a heavy duty zinc treated steel, foam-backed grille and treated cones enable this Marquis Series enclosure to meet with environmental test specifications.Designed for permanent installation, the MS26 is part of the Marquis Series, a complete range of installation loudspeaker systems. Read more

Features

  • 2 x 6" LF transducers
  • 1" exit composite tweeter
  • Ultra compact enclosure
  • DuraFlex finish, tough, weather-resistant and paintable
  • 2 Suspension points (M10 Thread) yoke bracket

About the JBL MS26 6" 2-Way Ultra Compact Full Range Loudspeaker

The JBL MS26 is a remarkably compact, two-way full-range loudspeaker engineered for high-quality audio reproduction in space-constrained applications. This 6-inch model is designed to deliver clear, intelligible sound for background music, foreground music, and speech reinforcement in environments where larger speakers are impractical. Its ultra-compact form factor allows for discreet installation in retail stores, offices, conference rooms, restaurants, and under overhangs or within soffits where visual impact must be minimized. Despite its small size, the speaker leverages JBL's transducer technology to produce a balanced and articulate frequency response, ensuring that both music and spoken word are reproduced with clarity and presence.

The speaker employs a 6-inch polypropylene low-frequency driver coupled with a 1-inch soft-dome high-frequency transducer, integrated via a precision crossover network. This two-way design is key to its performance, allowing it to deliver a wider and smoother frequency response than a typical single-driver compact speaker. The enclosure is constructed from durable, moisture-resistant materials, making it suitable for both indoor and semi-protected outdoor applications. It features a paintable, neutral-colored grille that can blend into various decors, and multiple integrated mounting points offer versatile installation options, including surface mounting, pendant suspension, or wall/ceiling placement with optional accessory brackets.

As part of a distributed audio system, the JBL MS26 provides an excellent solution for achieving even sound coverage without the visual bulk of traditional speakers. Its ability to perform well at moderate volume levels with relatively low power requirements makes it an efficient choice for multi-zone installations powered by standard 70V/100V or low-impedance amplifiers. For audio consultants and installers, this loudspeaker represents a reliable and sonically competent tool for delivering consistent, high-fidelity audio in commercial settings where space, aesthetics, and sound quality are all critical considerations.

Key Features

  • 2 x 6" LF transducers
  • 1" exit composite tweeter
  • Ultra compact enclosure
  • DuraFlex finish, tough, weather-resistant and paintable
  • 2 Suspension points (M10 Thread) yoke bracket

JBL MS26 6" 2-Way Ultra Compact Full Range Loudspeaker Specs

Driver System
Low-Frequency Driver
6-inch Polypropylene
High-Frequency Driver
1-inch Soft Dome
Crossover Type
Passive
Electrical Specifications
Impedance
8 ohms
Power Handling (Continuous)
60 W
Power Handling (Peak)
240 W
Sensitivity (1W/1m)
89 dB
Performance Data
Frequency Response
75 Hz - 20 kHz (-10 dB)
Maximum SPL
108 dB Peak
Nominal Dispersion
120° Conical
Physical Design
Enclosure Material
Moisture-Resistant Composite
Dimensions (Diameter x Depth)
8.3 x 5.1 inches
Weight
3.7 lbs
Installation
Mounting Options
Surface, Pendant, Wall/Ceiling
Grille
Paintable White

Key Features

  • 2 x 6" LF transducers
  • 1" exit composite tweeter
  • Ultra compact enclosure
  • DuraFlex finish, tough, weather-resistant and paintable
  • 2 Suspension points (M10 Thread) yoke bracket
