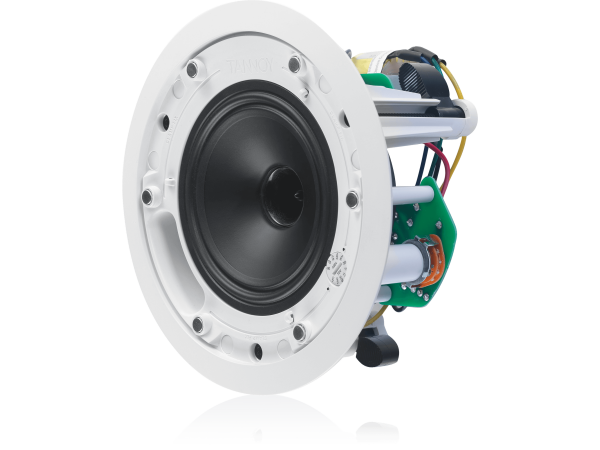

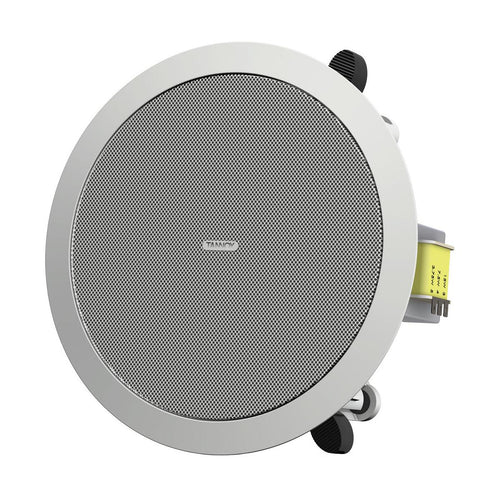

The Tannoy CMS 503DC PI is a high-fidelity in-ceiling loudspeaker designed for discerning architectural audio installations, featuring the brand's signature Dual Concentric driver technology. This sophisticated design integrates a 5-inch paper pulp woofer and a 1-inch titanium dome tweeter on a single axis, creating a true point source that ensures all frequencies originate from the same acoustic center. This engineering approach yields exceptional phase coherence, resulting in precise stereo imaging, stable sound localization, and a uniform dispersion pattern that provides consistent tonal quality throughout the listening space. The loudspeaker is supplied in a pre-install configuration, which is specifically intended for custom integrators who require maximum aesthetic flexibility for a seamless finish.

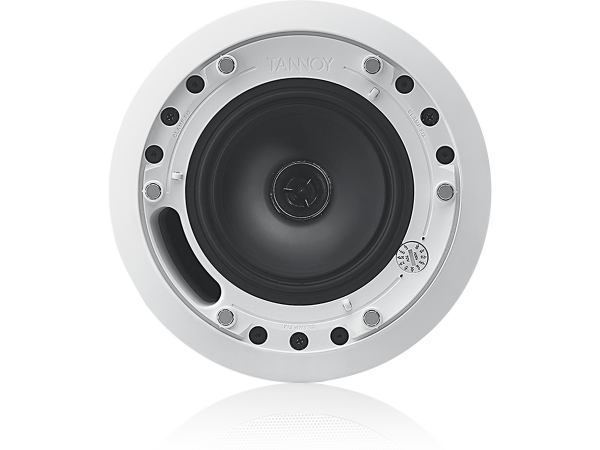

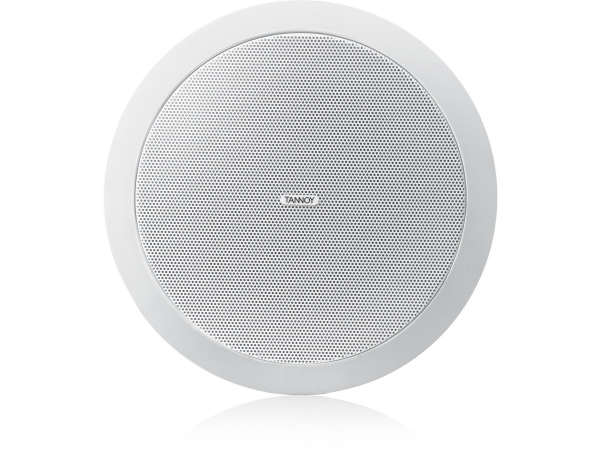

In its pre-install form, the unit is presented with a primed, paintable metal chassis ring, while the final magnetic grille is supplied separately. This allows installers to paint the visible chassis to achieve a perfect color match with the surrounding ceiling or soffit before the grille is attached, enabling a discreet, custom-built appearance. The heavy-gauge steel chassis is built for durability and features a robust mounting system with dog-leg clamps for a secure, vibration-free installation in various ceiling constructions. This design prioritizes both long-term reliability and a clean, professional visual integration.

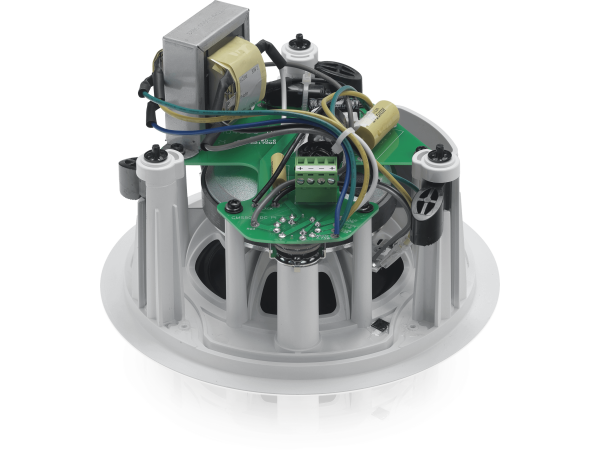

Equipped with an integrated multi-tap transformer, the loudspeaker offers versatile connectivity for both standard 8-ohm low-impedance systems and 70V/100V constant voltage distributed audio networks. With robust power handling, high sensitivity, and an extended frequency response, the CMS 503DC PI is engineered to deliver detailed and dynamic sound reproduction. It is an ideal solution for premium background music, clear vocal reinforcement, and high-quality audio distribution in environments such as luxury residences, high-end retail spaces, executive boardrooms, and upscale hospitality venues where superior sonic performance and invisible installation are paramount.
