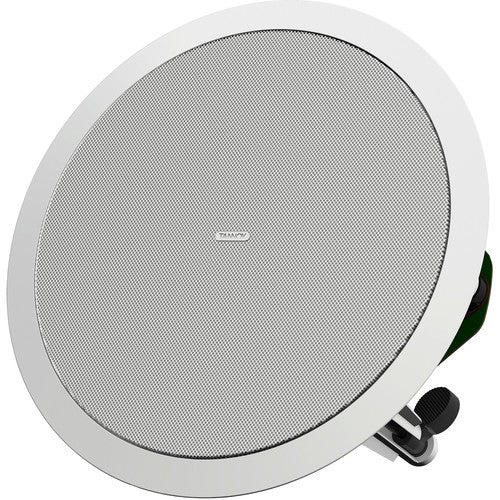

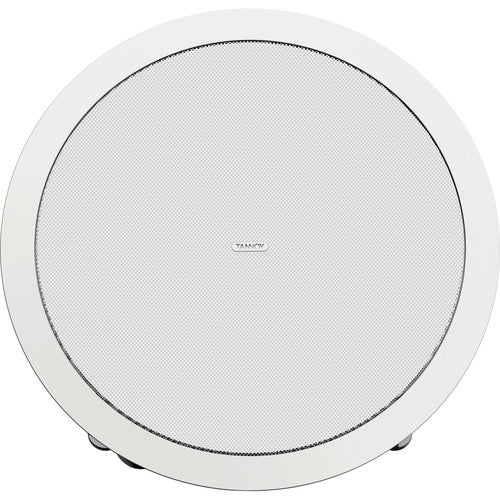

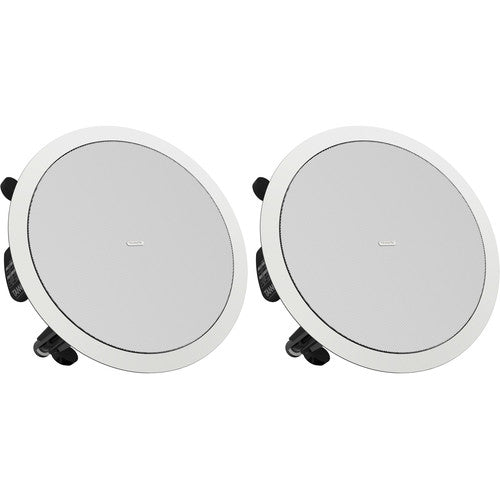

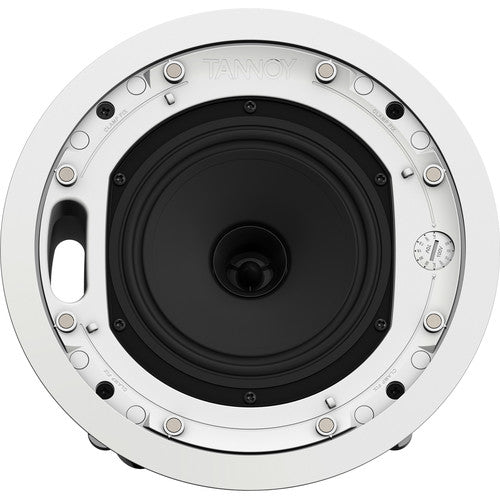

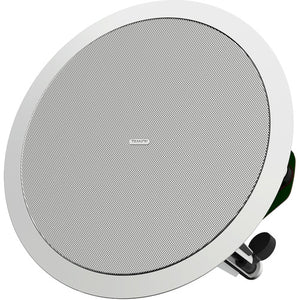

The Tannoy CMS 603DC PI is a professional 6-inch full-range ceiling loudspeaker designed for pre-installation in commercial construction and renovation projects, featuring Tannoy's renowned Dual Concentric driver technology. This model is engineered to be installed in phases: first, its robust steel chassis is mounted to the building structure during the rough-in phase, protecting the cavity for the future speaker. After the ceiling surface is finished, the high-performance driver and a paintable grille are installed. This method safeguards sensitive components from construction debris, paint, and damage, ensuring the speaker performs to specification upon completion. The Dual Concentric driver places a 25mm soft-dome tweeter concentrically within the 6-inch bass/midrange cone, creating a true point source that delivers coherent sound with precise imaging, wide, uniform dispersion, and exceptional clarity for both music and speech reinforcement.

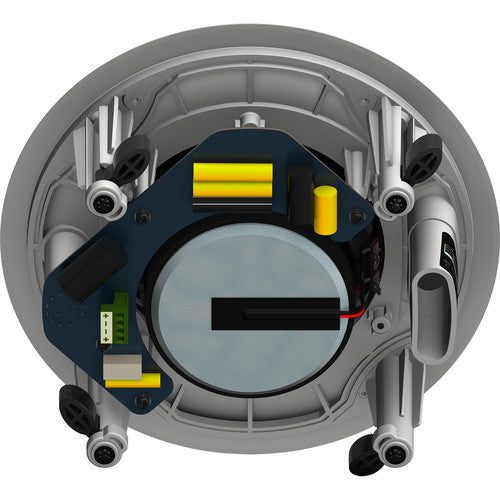

The loudspeaker combines advanced acoustics with practical installation benefits. The mineral-loaded polypropylene cone and optimized motor system provide high sensitivity and controlled bass response, while the integrated Tulip Waveguide ensures smooth high-frequency dispersion. A built-in multi-tap transformer allows for straightforward integration into 70V or 100V constant-voltage audio systems, common in commercial installations, with multiple power settings to balance output across various zones. The pre-install design not only protects the investment but also facilitates precise placement as per the audio system design, which is crucial for achieving consistent coverage in spaces like corporate offices, retail stores, hotels, and educational facilities.

For architects, contractors, and audio system integrators, the Tannoy CMS 603DC PI offers a reliable and high-fidelity solution that aligns with modern construction timelines and quality standards. Its phased installation reduces on-site risks and coordination challenges, while the final result is a discreet, high-performance loudspeaker that blends into the ceiling architecture. This model exemplifies how professional-grade audio can be seamlessly incorporated into building projects, delivering the sonic benefits of Tannoy's Dual Concentric technology in a format designed for the realities of commercial construction.
