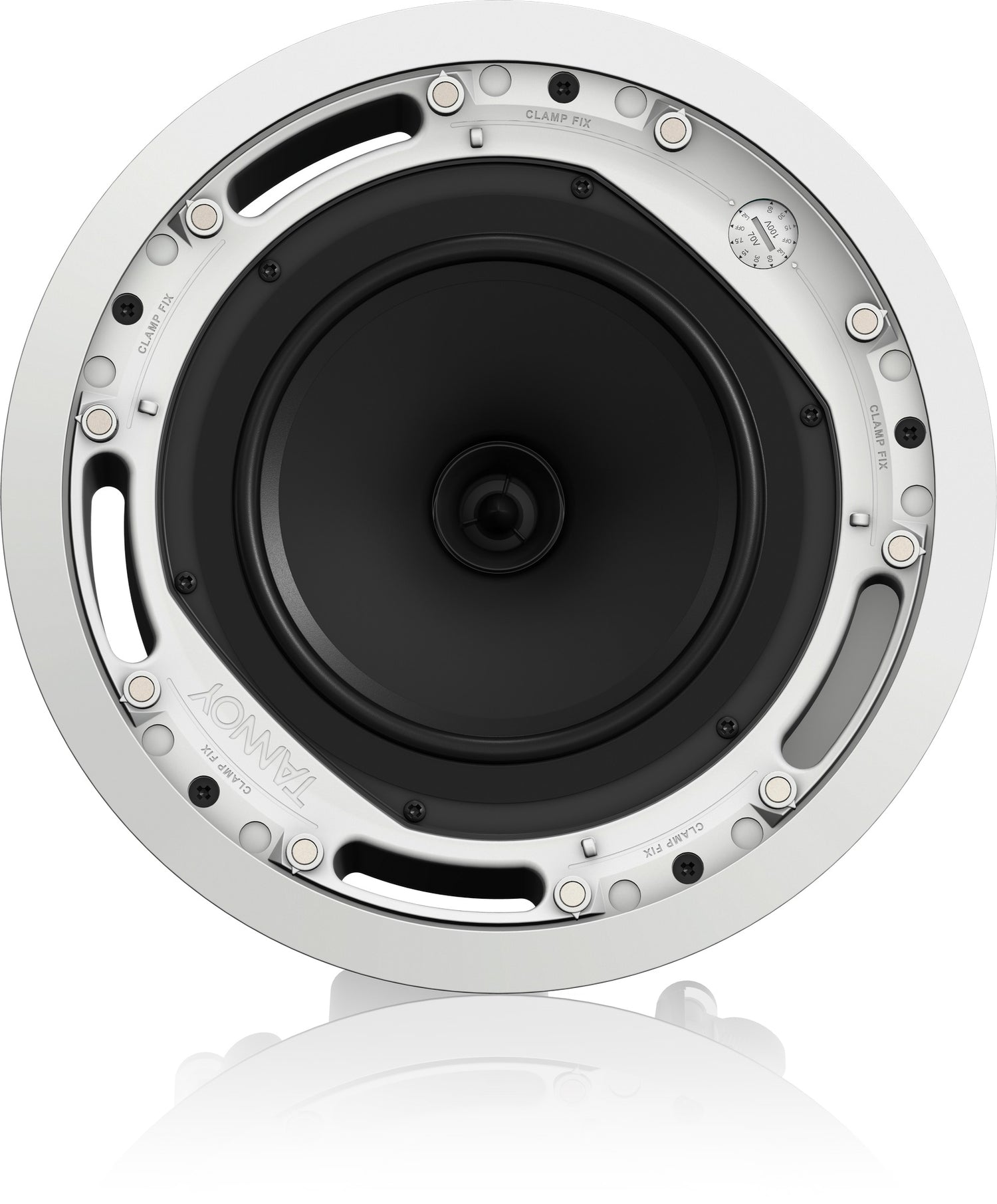

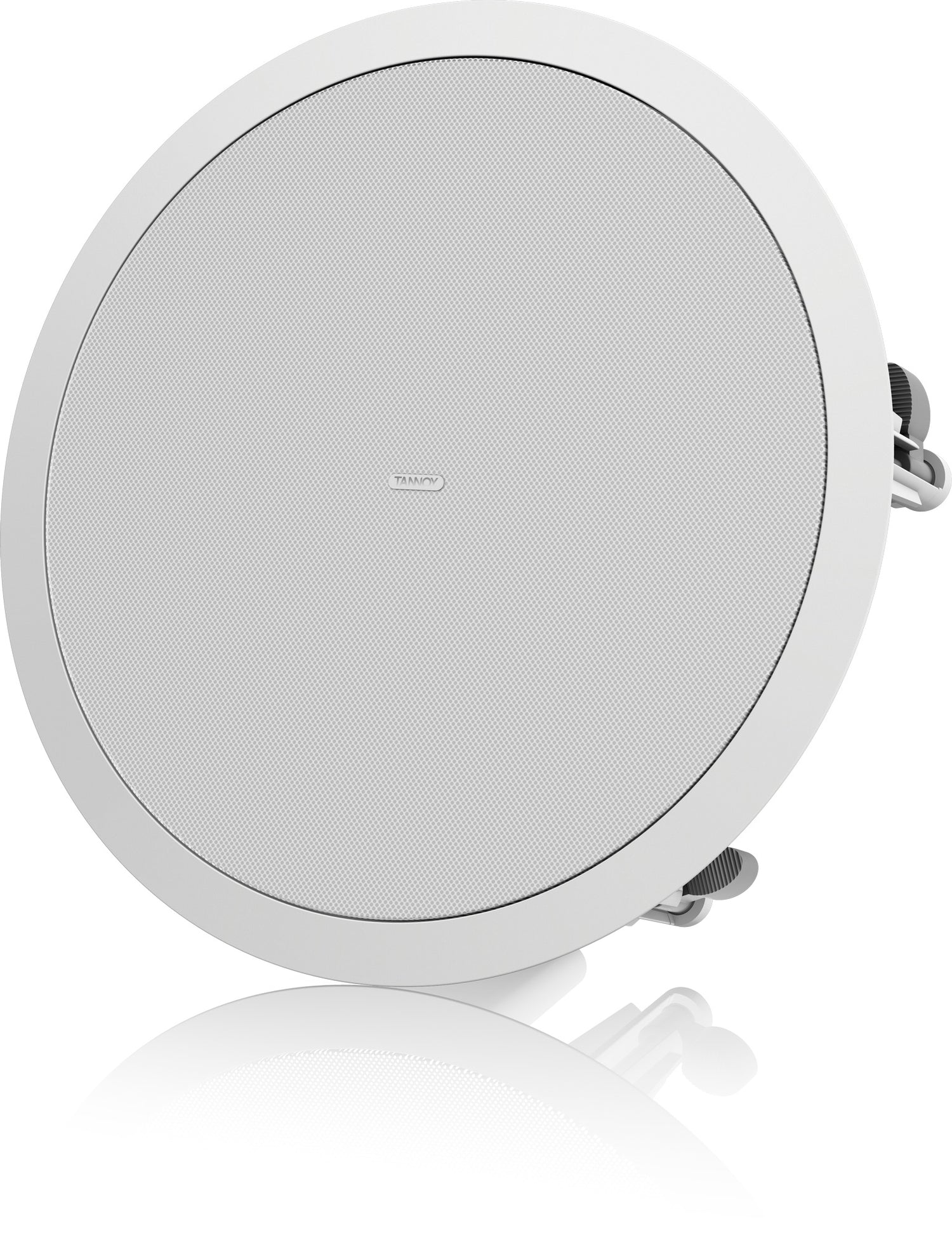

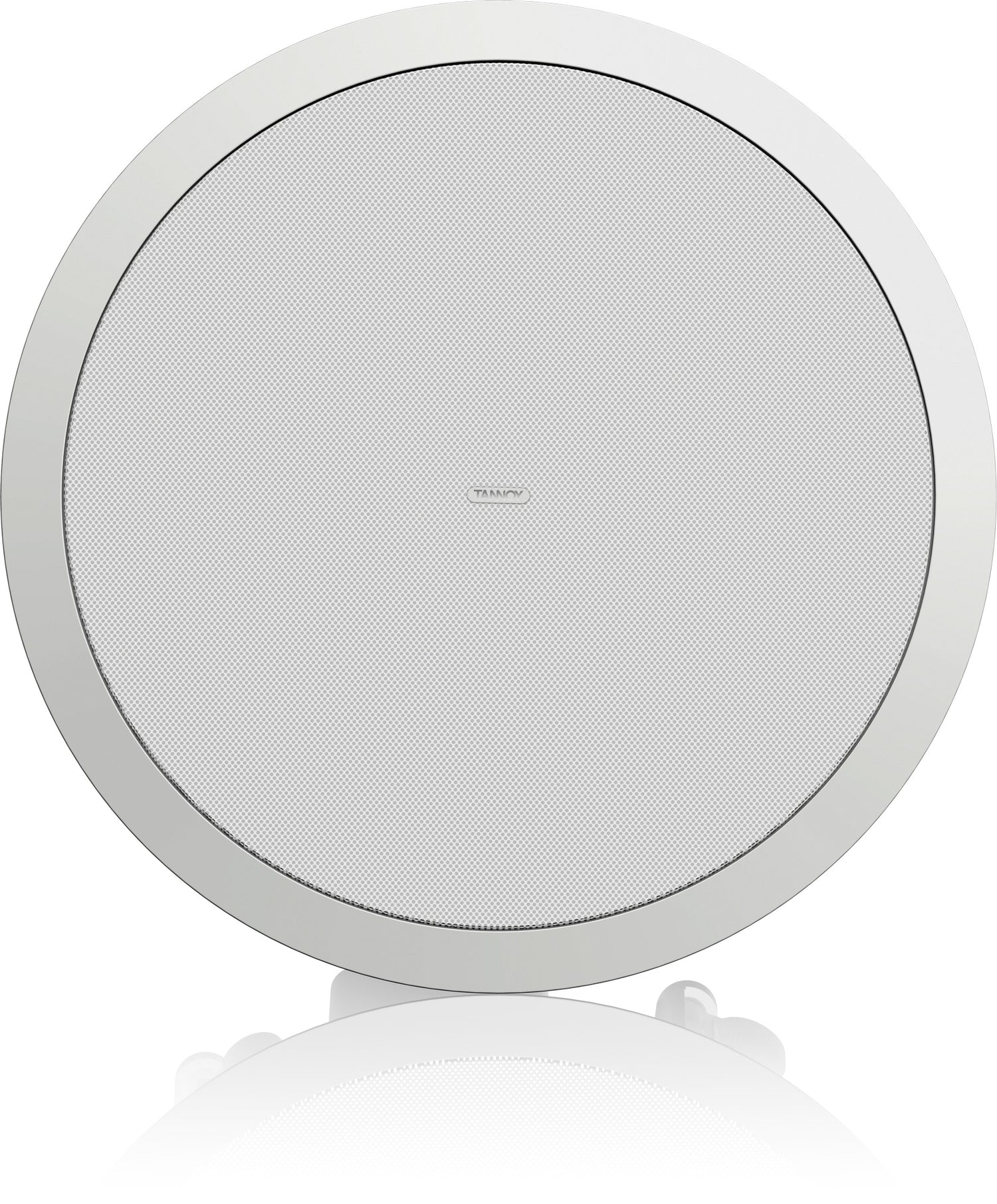

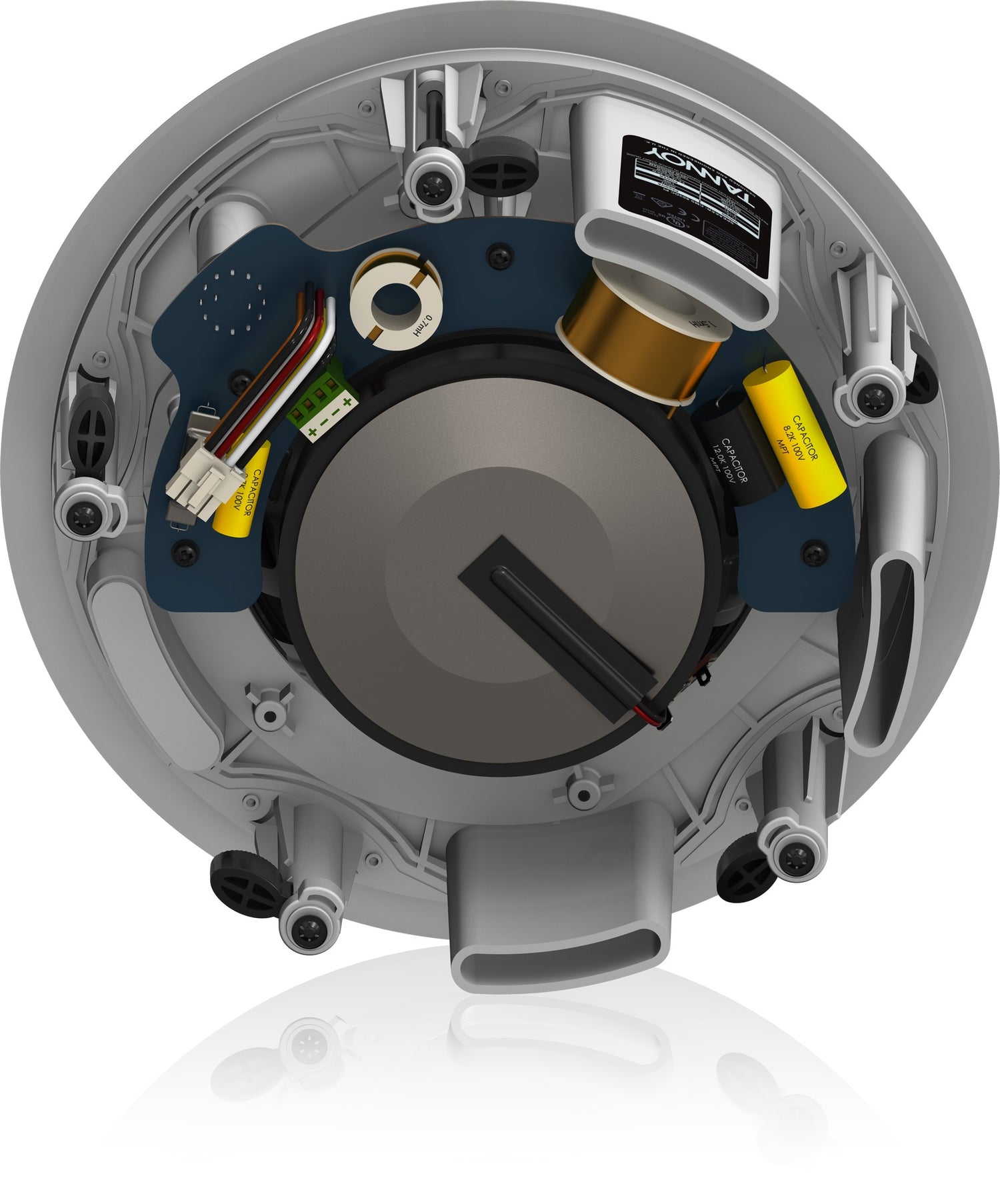

The Tannoy CMS 803DC PI is a high-performance 8-inch full-range ceiling loudspeaker designed for pre-installation in commercial construction and renovation projects, featuring Tannoy's renowned Dual Concentric driver technology. This model is engineered for a phased installation process where its robust steel chassis is mounted to the building structure during the rough-in phase, protecting the cavity for the final speaker components. After the ceiling surface is finished, the high-performance Dual Concentric driver and a paintable magnetic grille are installed. This method safeguards the sensitive transducer from construction debris, paint, and physical damage, ensuring the speaker delivers its full sonic potential upon project completion. The Dual Concentric design integrates a 25mm soft-dome tweeter concentrically within an 8-inch bass/midrange cone, creating a true point source that delivers coherent sound with precise imaging, wide dispersion, and exceptionally low distortion, ideal for premium background music and speech reinforcement in demanding environments.

The loudspeaker combines advanced acoustics with practical installation benefits. The large 8-inch driver, with its mineral-loaded polypropylene cone, provides extended bass response and high efficiency, allowing the speaker to fill larger spaces or deliver higher sound pressure levels with less amplifier power. The integrated Tulip Waveguide ensures smooth high-frequency dispersion and controlled directivity. A built-in multi-tap transformer offers flexible integration into 70V or 100V constant-voltage audio systems, with multiple power settings to balance output across various zones within a distributed sound system. The pre-install design not only protects the investment but also facilitates precise placement as per the audio system design, which is crucial for achieving consistent coverage in corporate boardrooms, luxury hotels, retail environments, and performing arts venues.

For architects, contractors, and audio system integrators, the Tannoy CMS 803DC PI offers a reliable and high-fidelity solution that aligns with modern construction timelines and quality standards. Its phased installation reduces on-site risks and coordination challenges, while the final result is a discreet, high-performance loudspeaker that blends into the ceiling architecture. This model exemplifies how professional-grade audio can be seamlessly incorporated into building projects, delivering the expansive, detailed soundstage of Tannoy's Dual Concentric technology in a format designed for the realities of commercial construction.
