Tannoy CVS 401 4" Coaxial In-Ceiling Loudspeaker for Installation Applications

$0.00

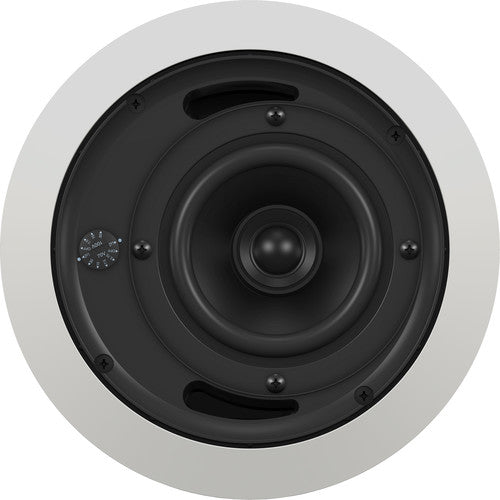

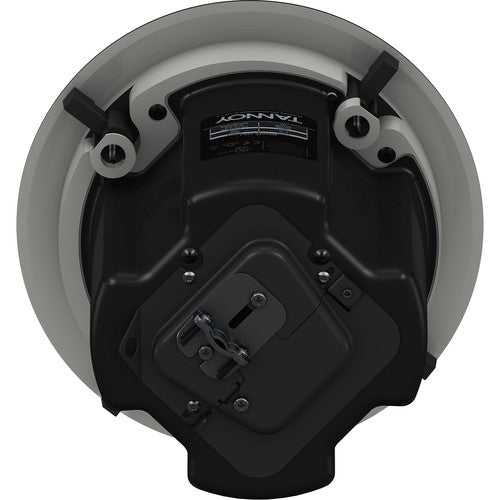

The CVS 401 features a coaxial transducer design with a 4-inch polypropylene driver and a 0.75-inch ferrofluid-cooled soft dome high-frequency driver, which ensures a wide and even sound dispersion. The speaker is designed for reliability with durable components, including a weather- and UV-resistant UL 94-V0 ABS front baffle and a mineral-loaded polypropylene cone with a butyl rubber surround. The speaker is housed in an integral zinc-plated steel back can, which provides a fire-rated enclosure and also helps optimize low-frequency performance. For installation flexibility, the CVS 401 includes a low-insertion loss 70V/100V line transformer with multiple power taps and an 8-ohm direct input option.

The speaker comes with a comprehensive mounting package, including C-ring and tile rails, to simplify installation in various ceiling types. The unobtrusive semi-matte white finish (or black on the CVS 401-BK model) allows it to blend seamlessly into most environments.

View Product Features

Coaxial Driver Design: Features a 4-inch polypropylene low-frequency driver and a 0.75-inch high-frequency driver for a wide, constant 120° conical dispersion.
Safety Certified: Fully certified to EN 54-24 for fire detection and alarm systems, as well as UL 1480 and UL 2043 for fire-protected signaling and air-handling spaces.
High Power Handling: Provides 30 Watts continuous and 120 Watts peak power, delivering robust audio for both background and foreground music.
Versatile Tapping Options: Includes a low-insertion loss line transformer with multiple taps for 70V and 100V line systems, plus an 8-ohm direct input.
Durable Construction: Built with a UV- and weather-resistant baffle and a mineral-loaded polypropylene cone for long-term reliability in demanding conditions.
Easy Installation: Comes with all necessary mounting hardware, including a steel back can, C-ring, and ceiling tile rails, for quick and secure installation.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Tannoy CVS 401 4" Coaxial In-Ceiling Loudspeaker for Installation Applications

Key Features

Coaxial Driver Design: Features a 4-inch polypropylene low-frequency driver and a 0.75-inch high-frequency driver for a wide, constant 120° conical dispersion.
Safety Certified: Fully certified to EN 54-24 for fire detection and alarm systems, as well as UL 1480 and UL 2043 for fire-protected signaling and air-handling spaces.
High Power Handling: Provides 30 Watts continuous and 120 Watts peak power, delivering robust audio for both background and foreground music.
Versatile Tapping Options: Includes a low-insertion loss line transformer with multiple taps for 70V and 100V line systems, plus an 8-ohm direct input.
Durable Construction: Built with a UV- and weather-resistant baffle and a mineral-loaded polypropylene cone for long-term reliability in demanding conditions.
Easy Installation: Comes with all necessary mounting hardware, including a steel back can, C-ring, and ceiling tile rails, for quick and secure installation.
