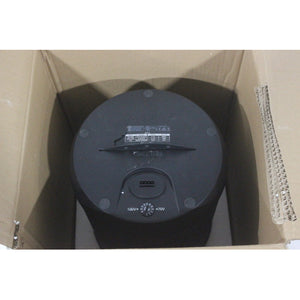

Tannoy TA-OCV6-BK 6" Coaxial Pendant Loudspeaker for Installation Applications

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

The OCV 6 is a 240-Watt high sensitivity pendant loudspeaker that delivers wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. Engineered specifically for aesthetically sensitive applications where consistent high quality audio coverage is required, the OCV 6 is ideally suited for airport and ground transportation terminals, shopping malls, and large double or triple height commercial floors – without compromising clarity, intelligibility and SPL. Read more

Features

  • Coaxial full range pendant loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

Business Financing Options Avaiable

The OCV 6 is a 240-Watt high sensitivity pendant loudspeaker that delivers wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. Engineered specifically for aesthetically sensitive applications where consistent high quality audio coverage is required, the OCV 6 is ideally suited for airport and ground transportation terminals, shopping malls, and large double or triple height commercial floors – without compromising clarity, intelligibility and SPL. Read more

Features

  • Coaxial full range pendant loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

About the Tannoy TA-OCV6-BK 6" Coaxial Pendant Loudspeaker for Installation Applications

The Tannoy TA-OCV6-BK is a compact, high-performance coaxial pendant loudspeaker designed for distributed background music and voice announcement systems in commercial installation environments. Its 6-inch design incorporates Tannoy's signature Dual Concentric® coaxial driver technology, where the high-frequency tweeter is mounted at the center of the mid/bass woofer, ensuring perfect acoustic alignment and a coherent, point-source sound dispersion. This results in consistent frequency response and clear, intelligible audio over a wide coverage area, making it ideal for applications such as retail stores, restaurants, hotels, and corporate atriums where even sound distribution is critical.

The speaker is housed in a sleek, cylindrical black enclosure specifically designed for suspended pendant mounting from ceilings, offering a discreet and aesthetically pleasing appearance. It features a built-in multi-tap transformer with several power tap settings (e.g., 70V/100V line or 8-ohm low impedance), allowing for flexible integration into various constant voltage or low-impedance amplifier systems. The transformer is typically selectable via a rotary switch, enabling installers to easily match the speaker's power draw to the amplifier's output and the acoustic requirements of the space. The design often includes a safety cable attachment point for secure installation.

For system integrators, the TA-OCV6-BK provides a reliable, high-quality audio solution for commercial sound masking, paging, and music playback. Its coaxial design minimizes phase issues and provides smooth off-axis response, contributing to a natural listening experience throughout the coverage zone. The combination of robust construction, installation flexibility, and proven Tannoy sound quality makes this pendant speaker a trusted choice for professional audio installations where performance and aesthetics are equally important.

Key Features

  • Coaxial full range pendant loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

Tannoy TA-OCV6-BK 6" Coaxial Pendant Loudspeaker for Installation Applications Specs

Driver Specifications
Driver Size
6 Inch
Driver Type
Coaxial (Dual Concentric®)
Woofer
6" Paper Cone
Tweeter
1" Aluminum Dome
Performance
Frequency Response
65 Hz - 20 kHz (±3 dB)
Sensitivity (1W @ 1m)
89 dB
Maximum SPL
108 dB
Power Handling (RMS)
60 Watts
Nominal Impedance
8 Ohms
Transformer & Taps
Transformer Type
Built-in Multi-tap
Voltage Taps
70V: 60W, 30W, 15W, 7.5W / 100V: 60W, 30W, 15W
Impedance Tap
8 Ohms
Physical Design
Enclosure Type
Pendant/Ceiling Mount
Enclosure Material
ABS Composite
Finish
Black (BK)
Dimensions (Dia. x Depth)
9.1" x 8.7" (231 mm x 221 mm)
Weight
7.9 lb (3.6 kg)

Key Features

  • Coaxial full range pendant loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
