Ashly

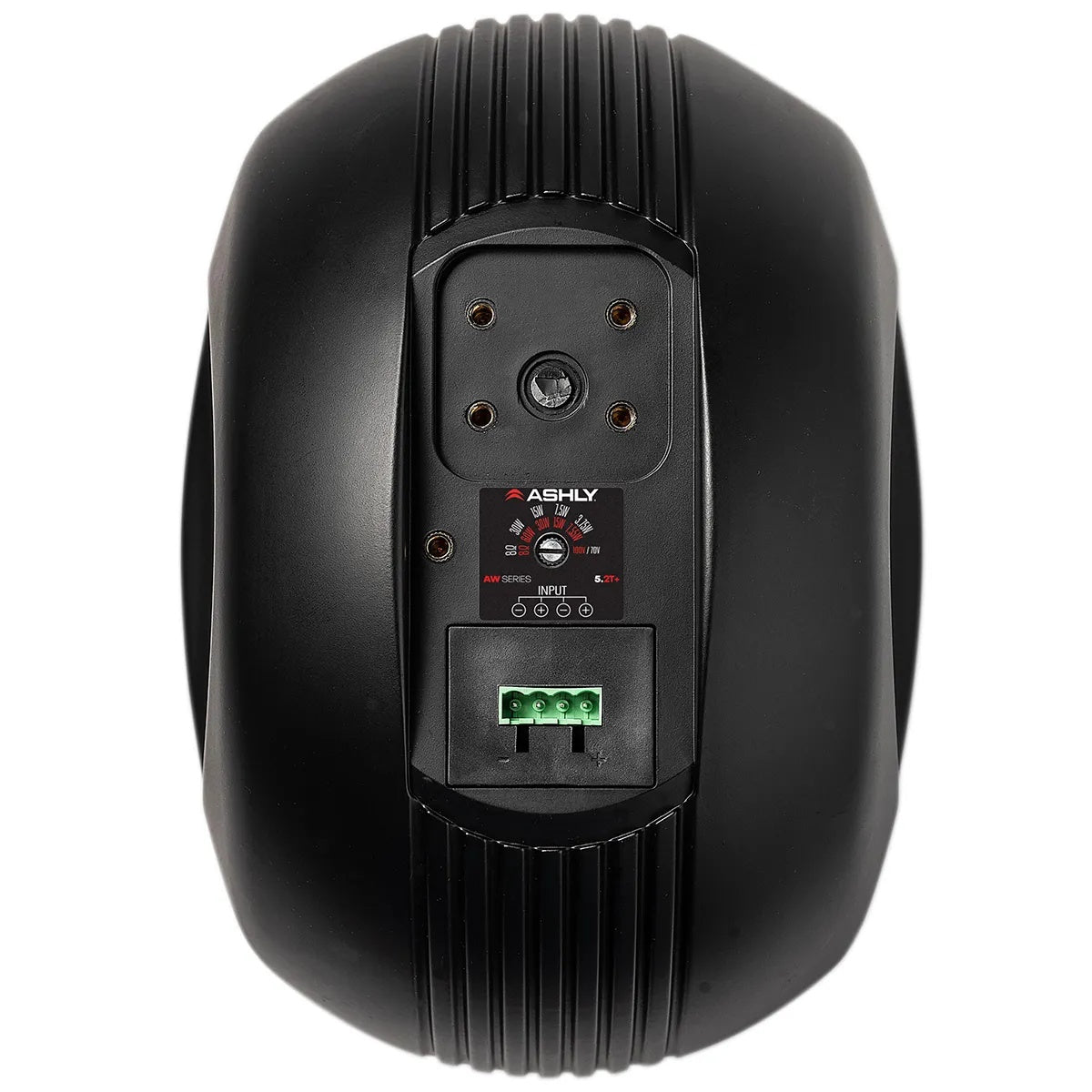

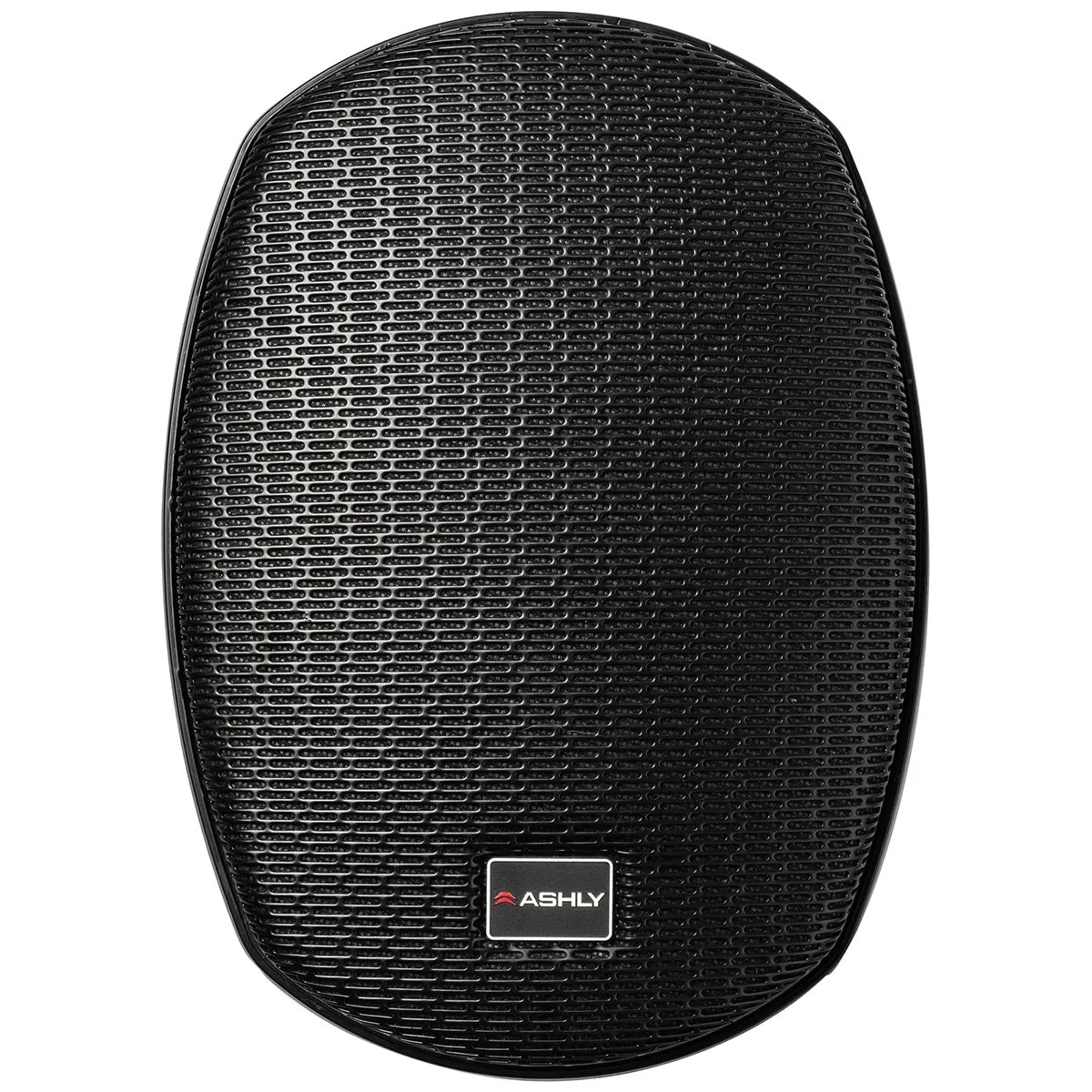

Ashly AW5.2TPLUS-U 5in Passive 2-Way All-Weather Speaker

$449.00

The AW5.2T+ 5.25" 2-Way 50W Indoor/Outdoor Wall Mount Speaker with Transformer, available in black and sold as a pair, is a testament to the series' commitment to quality and durability. When paired with Ashly's DSP and DSP-enabled amplifiers, these speakers deliver the most consistent coverage available in a compact speaker. Wall-mounting hardware is included for easy installation.


View Product Features
  • Ultra-compact 5.25" 2-way speaker provides high-quality sound in a small form-factor, which ideal for BGM & program playback use in tight or confined spaces
  • The supplied wall-mount brackets offer flexible, secure and repeatable adjustability both horizontally & vertically, dramatically reducing installation time
  • The AW5.2T+ compact, durable, all-resin, sealed enclosure and grille is IP-54 rated for indoor or outdoor use (when installed under eaves or other cover)
  • 4-pin removable Euroblock connector
  • Speaker Voice Presets provides optimized performance when used with Ashly DSP amplifiers and processors (nep, nXp, mXa, ne24.24 & SP)
  • Includes EQ optimization curves, delay & X-Over settings (for use with subwoofers)
  • The AW5.2T+ is rated for 50W at 8 Ohms with a sensitivity of 87dB and frequency response of 80Hz to 19kHz
In stock
6 in stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    C2212-38

    (NEW) Ashly AW5.2TPLUS-U 5in Passive 2-Way All-Weather Speaker

    $449.00
    View Product
  • New

    C2212-41

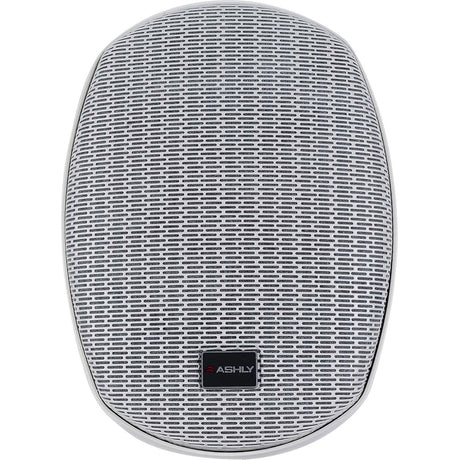

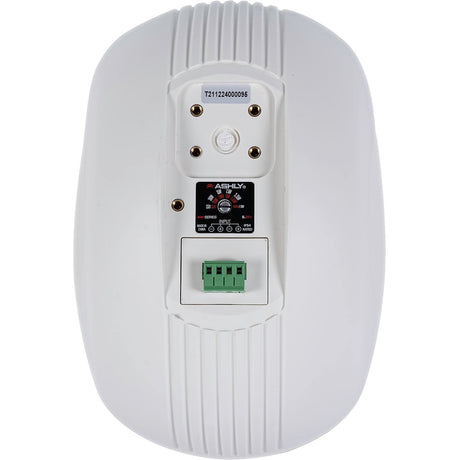

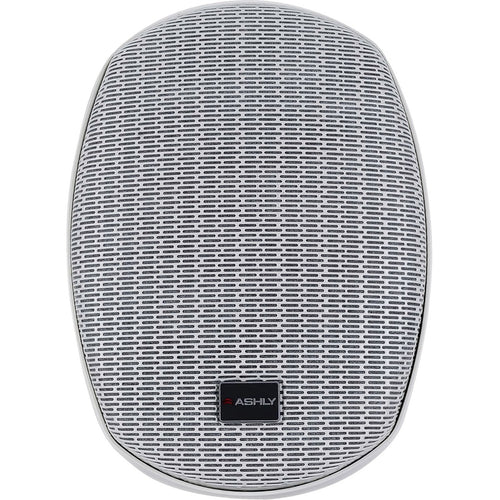

    (NEW) Ashly AW5.2TW-U 5in 2-Way Surface-Mount Speaker White

    $449.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Ashly AW5.2TPLUS-U 5in Passive 2-Way All-Weather Speaker

The AW 5.2T+ speakers are not just about volume; they are about quality sound. They are designed to handle challenging sound levels, making them ideal for environments where mid-level Sound Pressure Levels (SPLs) are required. The AW 5.2T+ speakers have been redesigned with beefier transformers to handle higher power, resulting in increased SPL without additional distortion.

The transformers in the AW 5.2T+ speakers are not just any transformers. They use audio-grade laminations and heavy, high-insulated wire. The cores are made of grain-oriented steel. This design allows for higher power handling with minimal insertion loss, leading to almost double the power of other wall mount speakers in the same price range.

Key Features

  • Ultra-compact 5.25" 2-way speaker provides high-quality sound in a small form-factor, which ideal for BGM & program playback use in tight or confined spaces
  • The supplied wall-mount brackets offer flexible, secure and repeatable adjustability both horizontally & vertically, dramatically reducing installation time
  • The AW5.2T+ compact, durable, all-resin, sealed enclosure and grille is IP-54 rated for indoor or outdoor use (when installed under eaves or other cover)
  • 4-pin removable Euroblock connector
  • Speaker Voice Presets provides optimized performance when used with Ashly DSP amplifiers and processors (nep, nXp, mXa, ne24.24 & SP)
  • Includes EQ optimization curves, delay & X-Over settings (for use with subwoofers)
  • The AW5.2T+ is rated for 50W at 8 Ohms with a sensitivity of 87dB and frequency response of 80Hz to 19kHz

Ashly AW5.2TPLUS-U 5in Passive 2-Way All-Weather Speaker Specs

Power Handling
50W RMS at 8 Ohms.
Transformer Taps (70V)
30W, 15W, 7.5W, 3.75W.
Transformer Taps (100V)
60W, 30W, 15W, 7.5W.
Frequency Response
80Hz – 19kHz (-10dB).
Sensitivity
87dB (2.83V/1m).
Maximum SPL
104dB.
Beam Width
165° Horizontal x 160° Vertical.
Crossover Point
2,200Hz featuring proprietary Directivity Optimized Crossover (DOC).
Transducers & Build
LF Driver
5.25-inch woofer with a 1-inch voice coil and 8 oz magnet.
HF Driver
0.75-inch silk dome tweeter.
Environmental Rating
IP54 rated, making it suitable for protected outdoor use like patios or under eaves.
Enclosure
High-impact polypropylene with a painted steel grille.
Connections
Removable 4-pole Euroblock connector.

Key Features

  • Ultra-compact 5.25" 2-way speaker provides high-quality sound in a small form-factor, which ideal for BGM & program playback use in tight or confined spaces
  • The supplied wall-mount brackets offer flexible, secure and repeatable adjustability both horizontally & vertically, dramatically reducing installation time
  • The AW5.2T+ compact, durable, all-resin, sealed enclosure and grille is IP-54 rated for indoor or outdoor use (when installed under eaves or other cover)
  • 4-pin removable Euroblock connector
  • Speaker Voice Presets provides optimized performance when used with Ashly DSP amplifiers and processors (nep, nXp, mXa, ne24.24 & SP)
  • Includes EQ optimization curves, delay & X-Over settings (for use with subwoofers)
  • The AW5.2T+ is rated for 50W at 8 Ohms with a sensitivity of 87dB and frequency response of 80Hz to 19kHz
