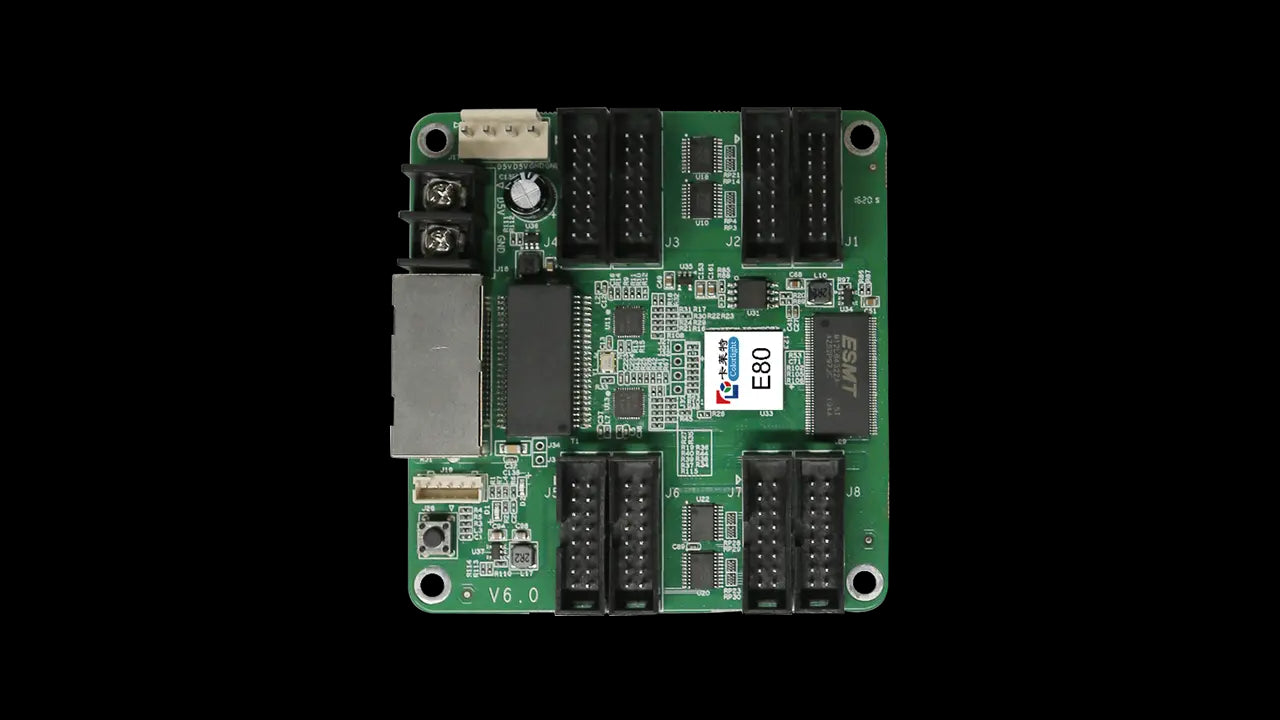

The Colorlight E80 is a dedicated LED display receiving card, a critical processing module that acts as the brain of an LED video wall system. It is engineered to receive high-bandwidth video data from a sending card or media processor via high-speed fiber optic or CATx cable and then distribute, process, and drive that signal to multiple LED display modules or cabinets. This card is pivotal in managing large-scale, high-resolution LED installations such as those used in control rooms, broadcast studios, outdoor advertising, and live event staging, where seamless, synchronized video playback is non-negotiable. The E80 excels at handling complex data mapping and color calibration tasks, ensuring that the final visual output is uniform, bright, and color-accurate across the entire display surface.

Designed for robust performance, the card features powerful onboard processing chips that decode and convert incoming video signals into the precise data packets required by the LED modules' driver ICs. It supports high refresh rates and grayscale depth, which are essential for eliminating flicker and delivering smooth motion reproduction, especially for camera-captured content. The module typically includes multiple high-density output ports, allowing a single receiving card to control a significant number of LED panels, thereby optimizing system cost and simplifying the overall control architecture. Advanced error diffusion and gamma correction algorithms run on the card to enhance image quality, improve color uniformity, and compensate for inherent LED characteristics.

The E80 is built for integration into a networked display ecosystem, offering flexible configuration through specialized software. This software allows installers and technicians to define the display's physical layout, perform module-by-module brightness and color calibration, and troubleshoot individual cabinets. The card often supports redundant data links and hot-swappable functionality in rack-mounted systems, features that are vital for mission-critical applications where display uptime is paramount. As a core component in modern LED video technology, the Colorlight E80 receiving card provides the reliable, high-performance data processing and distribution required to realize stunning, large-format visual experiences with flawless reliability.
