ADJ

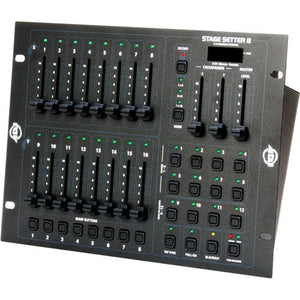

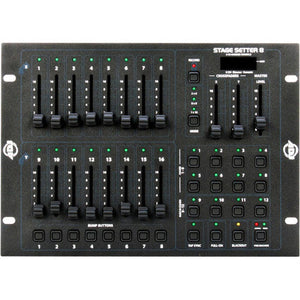

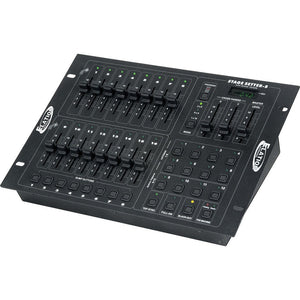

ADJ Stage Setter 8 - 16 Channel DMX Controller

$0.00 -

The American DJ Stage Setter 8 is a fully functional 16-channel DMX controller well suited for the touring performer, musician, DJ, and venue installation. The Stage Setter 8 is capable of 8 or 16 channel operation over LED lighting effects and laser fixtures. The unit also includes a fog machine output with a dedicated trigger. The Stage Setter 8's LED display and intuitive controls make programming fast and easy. The unit features 4 built-in and 8 user programmable patterns. Its rack-mountable frame installs into a mobile rack for easy transport and storage.

View Product Features

  • 16 DMX channels: Control basic lighting fixtures.
  • 8 individual faders: Direct control over intensity.
  • Scene and chase modes: Store up to 8 scene/chase programs.
  • Speed and fade controls: Adjust chase timing easily.
  • Reversible channel function: Offers flexible channel polarity.
  • Audio input/internal mic: Sound active synchronization capability.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the ADJ Stage Setter 8 - 16 Channel DMX Controller

The ADJ Stage Setter 8 is a compact and user-friendly DMX lighting controller designed to provide intuitive manual control over intelligent lighting fixtures for mobile entertainers, small venue operators, and beginning lighting programmers. This console serves as an accessible entry point into the world of DMX-512 control, offering 16 individual control channels to command a variety of parameters on moving heads, color changers, dimmers, and LED fixtures. Its interface is built around eight fader banks, which can be toggled to access a second set of channels, effectively providing command over 16 parameters from a streamlined physical layout. The controller emphasizes hands-on, real-time manipulation, allowing users to adjust intensity, color, position, and effects with immediate visual feedback, fostering a tactile connection with the lighting rig that is ideal for live performance and improvisation.

The unit features a straightforward programming environment that enables the creation and storage of static scenes and dynamic chases. Users can easily record the state of all active faders into one of 48 available scene memories, which can then be triggered manually or linked together into step-by-step chases. These chases can be paced with an adjustable speed dial or synchronized to the unit's built-in audio microphone for sound-active triggering. The inclusion of a blackout button and a handy dip-switch menu for configuring DMX start addresses and other settings adds to its practical, no-fuss design philosophy. Housed in a durable, lightweight plastic casing with a removable metal rack-mount kit, the Stage Setter 8 is both portable for DJ gigs and stable for permanent installation, often drawing power directly from the DMX line it controls, simplifying setup further.

As a dedicated hardware controller, the ADJ Stage Setter 8 provides a reliable, standalone solution that does not require a connected computer or complex software knowledge. Its design focuses on reliability and simplicity, making it an excellent choice for controlling a small to medium collection of fixtures where quick, manual adjustments are more valuable than elaborate, pre-programmed sequences. It effectively bridges the gap between basic sound-to-light devices and more complex digital consoles, offering essential DMX programmability in a familiar, mixer-style format. For DJs, bands, and event hosts looking to add professional, controllable lighting dynamics to their shows without a steep learning curve, this controller represents a practical and effective command center.

Key Features

  • 16 DMX channels: Control basic lighting fixtures.
  • 8 individual faders: Direct control over intensity.
  • Scene and chase modes: Store up to 8 scene/chase programs.
  • Speed and fade controls: Adjust chase timing easily.
  • Reversible channel function: Offers flexible channel polarity.
  • Audio input/internal mic: Sound active synchronization capability.

ADJ Stage Setter 8 - 16 Channel DMX Controller Specs

Control Specifications
Controller Type
DMX-512 Console
Total Control Channels
16 Channels
Fader Banks
8 Faders with A/B Bank Switch
Programming & Memory
Scene Memory
48 Programmable Scenes
Chase Function
Yes, with Speed Control
Trigger Modes
Manual & Sound-Active
Physical Design
Build Material
Durable Plastic Housing
Rack Mountable
Yes
Power Supply
DC Adapter or DMX Line Power
User Interface
Control Elements
Faders, Buttons, Speed Dial
Master Control
Grand Master & Blackout Fader
Address Setting
Dip-Switch Configuration
Connectivity
DMX Output
3-Pin XLR Connector
Audio Sync
Built-in Microphone
Link Output
For Controller Linking

Key Features

  • 16 DMX channels: Control basic lighting fixtures.
  • 8 individual faders: Direct control over intensity.
  • Scene and chase modes: Store up to 8 scene/chase programs.
  • Speed and fade controls: Adjust chase timing easily.
  • Reversible channel function: Offers flexible channel polarity.
  • Audio input/internal mic: Sound active synchronization capability.
