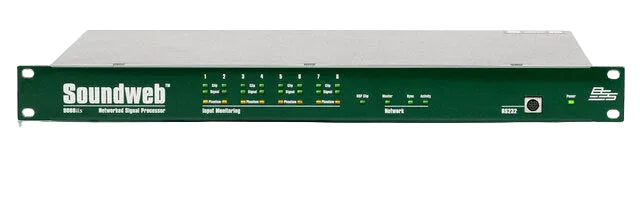

BSS Audio Soundweb 9088iis Networked Signal Processor

$95.00 - $125.00

The 9088iis Networked Signal Processor forms the heart of the Soundweb system. In a single rack space unit, it offers 8 analogue audio inputs, 8 analogue audio outputs, 200 MIPS of digital signal processing, a pair of network jacks, and a variety of control options.

View Product Features

  • 8x8 Analog I/O: Offers eight analog inputs and eight analog outputs.
  • Powerful 200 MIPS DSP: Dual Motorola chips deliver substantial digital signal processing power.
  • Flexible Configuration: Configurable with line, mic/line, or AES/EBU cards.
  • Networkable via Cat 5: Connects to other units using standard network cabling.
  • RS-232 control port: Allows integration with AMX/Crestron external control systems.
  • Programmable with Soundweb Designer: System design via free, flexible PC software.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the BSS Audio Soundweb 9088iis Networked Signal Processor

The BSS Audio Soundweb 9088iis is the central processing hub of the Soundweb networked audio system, designed for demanding fixed installation applications. Housed in a compact 1U rack-mountable chassis, this processor delivers 8 analogue audio inputs, 8 analogue audio outputs, 200 MIPS of digital signal processing, a pair of network jacks for system expansion, and comprehensive control options. It has been deployed in prestigious venues worldwide including the Palais des Festivals in Cannes and the Laoshan Velodrome for the Beijing 2008 Olympic Games, demonstrating its reliability in mission-critical environments.

The processing core of the 9088iis contains two Motorola 56303 DSP chips running at 100MHz each, delivering a total of 200 MIPS of open-architecture processing power. This enables complex signal chains including up to fourteen channels of 12-band parametric equalization, or eight channels of processing with compressor and gate on each, or a 4-way stereo crossover with limiters, delay, and parametric EQ on every output. The unit includes 11 seconds of total audio delay capability via onboard dynamic RAM, and can store up to 60 complete configurations in flash EPROM memory.

Key Features

  • 8x8 Analog I/O: Offers eight analog inputs and eight analog outputs.
  • Powerful 200 MIPS DSP: Dual Motorola chips deliver substantial digital signal processing power.
  • Flexible Configuration: Configurable with line, mic/line, or AES/EBU cards.
  • Networkable via Cat 5: Connects to other units using standard network cabling.
  • RS-232 control port: Allows integration with AMX/Crestron external control systems.
  • Programmable with Soundweb Designer: System design via free, flexible PC software.

BSS Audio Soundweb 9088iis Networked Signal Processor Specs

DSP Engine & Processing Core
Central Processor
Motorola 68000-series CPU with real-time multi-tasking OS
DSP Chips
2x Motorola 56303 running at 100MHz each
Total DSP Power
200 MIPS (Million Instructions Per Second)
Audio Delay Memory
11 seconds via onboard dynamic RAM
Configuration Storage
Flash EPROM (60 configuration capacity)
Analogue Input Section (Base Configuration)
Number of Inputs
8 (balanced, Phoenix connectors)
Input Card Configuration
2 slots, each handling 4 inputs
Available Input Card Types
Line card, Mic/Line card, AES/EBU Digital card
Line Card Gain Settings
0 dB or 12 dB (switchable per input)
Line Card Input Impedance
10 kOhms
Mic/Line Card Gain Range
0 dB to 72 dB (6 dB steps)
Mic/Line Card Input Impedance
3.5 kOhms
Mic/Line Card Phantom Power
48V (switchable per channel)
Mic/Line Card Phase Reverse
Yes (switchable per channel)
Maximum Input Level
+20 dBu (0 dB gain), +8 dBu (12 dB gain)
