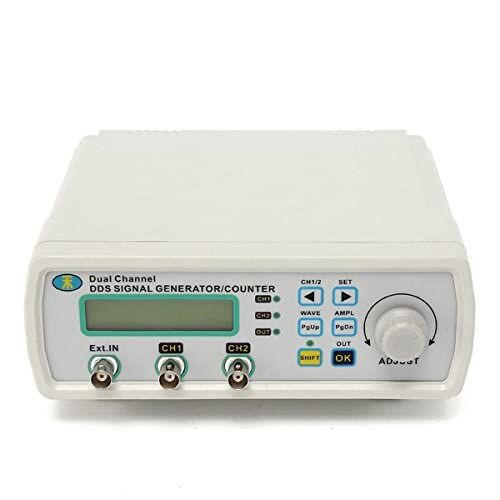

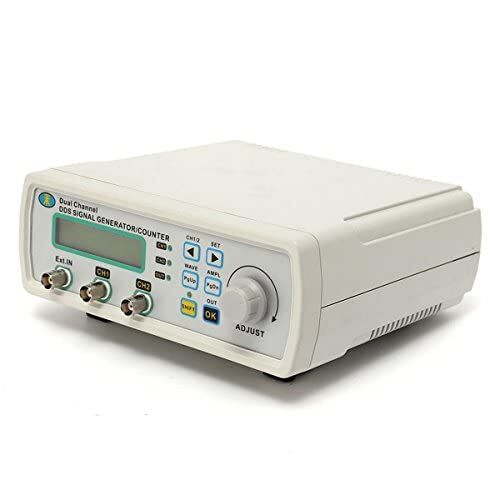

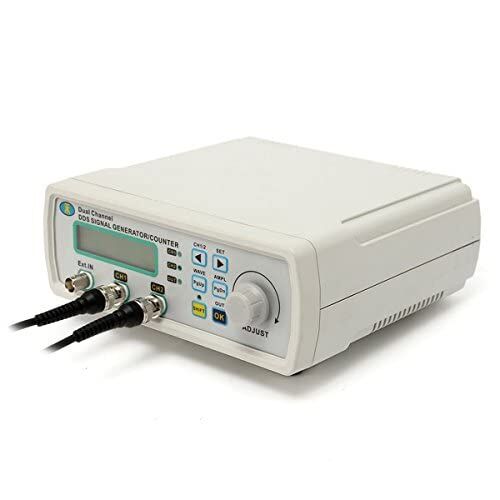

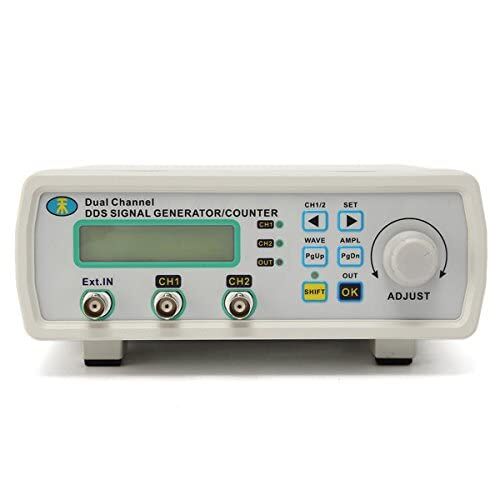

The DDS NC MHS5200A is a versatile, dual-channel digital signal generator that serves as a comprehensive source for a wide range of standard waveforms used in electronics testing, development, and education. Utilizing Direct Digital Synthesis (DDS) technology, it provides high signal stability, fine frequency resolution, and low distortion outputs, making it suitable for stimulating circuits, testing filters, and calibrating measurement equipment. Each of the two independent channels can generate fundamental waveforms including sine, square, triangle, and sawtooth waves, with adjustable frequency, amplitude, and offset. A notable feature is the integrated frequency counter function, allowing the unit to measure the frequency of an external input signal, thereby consolidating the functionality of two common bench instruments into a single compact device, saving valuable workspace.

This instrument is designed with user accessibility in mind, featuring a clear LCD screen that simultaneously displays parameters for both channels and the counter readout. The front panel provides dedicated knobs and buttons for direct control over key settings, enabling quick adjustments without navigating complex menus. Beyond standard waveforms, the generator often includes capabilities for producing TTL and CMOS logic-level pulse outputs, which are essential for digital circuit testing and microcontroller system development. The amplitude output range is typically sufficient to drive a variety of loads, with 50-ohm output impedance matching standard laboratory practices, and the ability to add a DC offset to the AC waveform allows for testing circuits with specific biasing requirements.

The MHS5200A finds its place on the workbenches of engineers, technicians, and hobbyists who require a reliable and flexible signal source for prototyping and troubleshooting. Its dual-channel architecture is particularly useful for generating synchronized signals or for creating two independent test points in a system. The inclusion of a frequency meter adds significant practical value, enabling users to verify oscillator circuits or measure unknown signals without needing a separate counter. By offering a robust set of features in a cost-effective package, this DDS function generator provides an essential toolkit for characterizing electronic component behavior, performing audio frequency tests, and educational demonstrations in analog and digital electronics laboratories.
