Focusrite

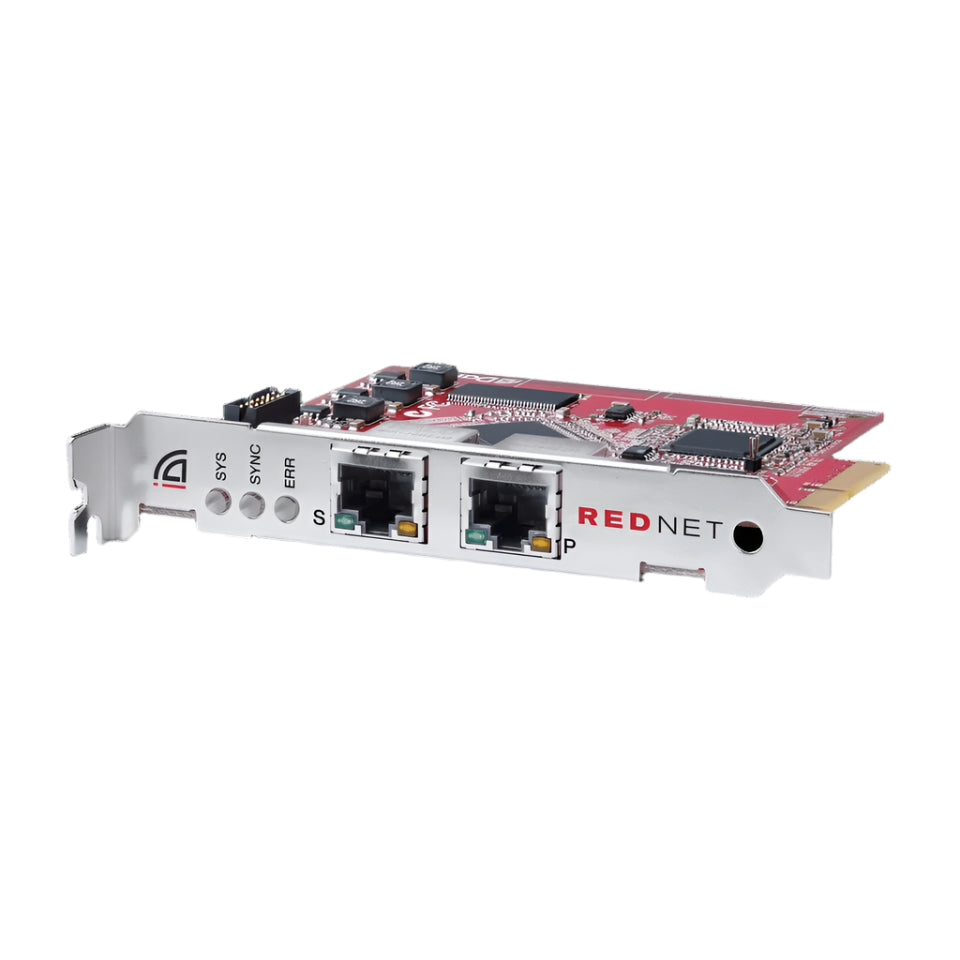

Focusrite RedNet PCIeR 128x128 Dante Interface for Mac and PC

$839.40

The RedNet PCIeR is an internal 4x PCIe card designed to be installed in a computer's standard PCI Express slot or a compatible Thunderbolt expansion chassis. It acts as a bridge between the host computer and a Dante audio-over-IP network, supporting bidirectional audio connectivity via dual rear panel RJ45 Gigabit Ethernet ports. This dual-port design provides seamless, automatic network redundancy, which is crucial for mission-critical live sound, broadcast, and recording studio environments. The card operates with ASIO and Core Audio applications on Intel-based Mac and Windows systems, delivering very low latency performance for tracking and demanding post-production workflows. The interface supports high-quality 24-bit audio at sample rates up to 192 kHz.

View Product Features

High Channel Count: Provides 128 inputs and 128 outputs at sample rates up to 96kHz, and 64 inputs and 64 outputs at 176.4kHz and 192kHz.
Ultra-Low Latency: Delivers very low latency, with approximately 1.6ms round-trip latency when used with RedNet analogue I/O units at 96kHz.
Network Redundancy: Features primary and secondary dual RJ45 Gigabit Ethernet ports that automatically switch to provide seamless network redundancy and maximum reliability.
Driver Compatibility: Operates with industry-standard ASIO (Windows) and Core Audio (Mac) drivers.
Broad Compatibility: Compatible with most modern computers featuring a standard 4-lane PCI Express card slot (note: not compatible with Apple Silicon processors).
Remote Control and Metering: Allows for remote signal metering, control, and configuration via the RedNet Control software.
Audio Standards Support: Fully compliant with the AES67 standard.
Power: The card is powered over the PCIe slot, eliminating the need for an external power supply.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the Focusrite RedNet PCIeR 128x128 Dante Interface for Mac and PC

Key Features

High Channel Count: Provides 128 inputs and 128 outputs at sample rates up to 96kHz, and 64 inputs and 64 outputs at 176.4kHz and 192kHz.
Ultra-Low Latency: Delivers very low latency, with approximately 1.6ms round-trip latency when used with RedNet analogue I/O units at 96kHz.
Network Redundancy: Features primary and secondary dual RJ45 Gigabit Ethernet ports that automatically switch to provide seamless network redundancy and maximum reliability.
Driver Compatibility: Operates with industry-standard ASIO (Windows) and Core Audio (Mac) drivers.
Broad Compatibility: Compatible with most modern computers featuring a standard 4-lane PCI Express card slot (note: not compatible with Apple Silicon processors).
Remote Control and Metering: Allows for remote signal metering, control, and configuration via the RedNet Control software.
Audio Standards Support: Fully compliant with the AES67 standard.
Power: The card is powered over the PCIe slot, eliminating the need for an external power supply.
