Ashly

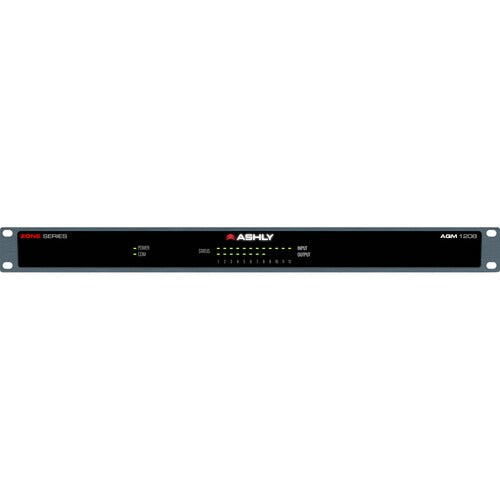

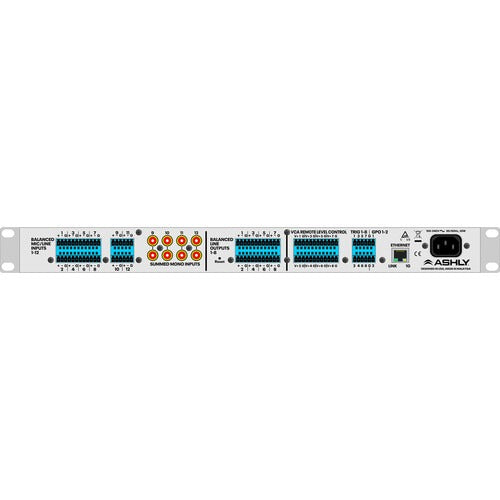

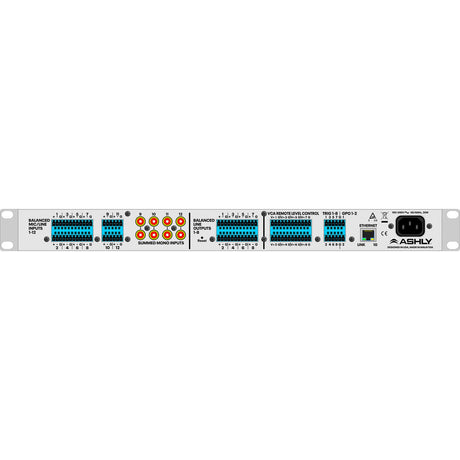

Ashly AQM1208 12-Input / 8-Output Standalone Zone Mixer with AquaControl DSP

$1,499.00

The Ashly AQM1208 is an advanced, stand-alone 12-input x 8-output networkable zone mixer and digital signal processor (DSP). Designed for external amplification systems, this 1U rack-mount unit offers the power and flexibility needed for multi-zone mic mixing, paging, music distribution, and noise masking applications in retail, hospitality, educational, and corporate environments.

View Product Features

• Intuitive AquaControl™ Software: Browser-based interface works with any web-enabled device—no app required.
• Flexible I/O configuration: 12 balanced mic/line inputs, 4 RCA summed inputs, and 8 balanced line outputs.
• Advanced DSP functions: Includes auto-mixing, multi-priority ducking, EQs, dynamics, crossovers, and FIR filters.
• Comprehensive remote access: Ethernet control from anywhere for configuration and troubleshooting.
• Built-in scheduler and clock: Automates timed events for different operations and functions.
• Versatile remote control options: Supports various wall remotes, GPI triggers, GPOs, and virtual web pages.

In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Ashly AQM1208 12-Input / 8-Output Standalone Zone Mixer with AquaControl DSP

The Ashly AQM1208 is a standalone digital signal processor and zone mixer designed to provide sophisticated audio management without the need for a connected computer after initial setup. This unit offers 12 analog inputs and 8 analog outputs, creating a flexible matrix for routing and mixing in commercial audio installations such as restaurants, retail chains, houses of worship, and corporate facilities. It is equipped with Ashly's powerful AquaControl DSP platform, which provides comprehensive processing tools on every channel, including parametric EQ, dynamics (compressor/limiter/gate), delay, and matrix mixing. The "standalone" capability means all processing and routing configurations are stored internally and run independently, ensuring reliable operation even if the network connection is lost.

Control and configuration are achieved through Ashly's intuitive AquaControl software, which connects to the unit via USB or Ethernet for initial setup and occasional adjustments. The processor supports the creation and recall of multiple presets, allowing the audio behavior of a space to change for different events or times of day automatically. Its robust build and focus on stability make it ideal for 24/7 operation in fixed installations. By combining a substantial I/O count, deep processing, and standalone operation in a single rack unit, the AQM1208 serves as a central, intelligent hub for complex multi-zone audio systems, providing integrators with a powerful yet dependable tool for system design.

Key Features

• Intuitive AquaControl™ Software: Browser-based interface works with any web-enabled device—no app required.
• Flexible I/O configuration: 12 balanced mic/line inputs, 4 RCA summed inputs, and 8 balanced line outputs.
• Advanced DSP functions: Includes auto-mixing, multi-priority ducking, EQs, dynamics, crossovers, and FIR filters.
• Comprehensive remote access: Ethernet control from anywhere for configuration and troubleshooting.
• Built-in scheduler and clock: Automates timed events for different operations and functions.
• Versatile remote control options: Supports various wall remotes, GPI triggers, GPOs, and virtual web pages.

Ashly AQM1208 12-Input / 8-Output Standalone Zone Mixer with AquaControl DSP Specs

Processing Matrix
Input Channels
12
Output Channels
8
DSP Platform
AquaControl
Operation & Control
Operation Mode
Standalone
Configuration Interface
AquaControl Software (USB/Ethernet)
Preset Memory
Multiple
Physical Design
Rack Units
1 U
Primary Function
Zone Mixer & DSP Processor
Key Feature
Computer-Independent Operation

Key Features

• Intuitive AquaControl™ Software: Browser-based interface works with any web-enabled device—no app required.
• Flexible I/O configuration: 12 balanced mic/line inputs, 4 RCA summed inputs, and 8 balanced line outputs.
• Advanced DSP functions: Includes auto-mixing, multi-priority ducking, EQs, dynamics, crossovers, and FIR filters.
• Comprehensive remote access: Ethernet control from anywhere for configuration and troubleshooting.
• Built-in scheduler and clock: Automates timed events for different operations and functions.
• Versatile remote control options: Supports various wall remotes, GPI triggers, GPOs, and virtual web pages.
