Tascam

TASCAM LM-8ST Rackmount 8-Channel Line Mixer

$799.00

The LM-8ST from TASCAM is a professional-quality line mixer that provides you with 8 stereo channels, perfect for live performance and installed audio applications. The 1RU unit features 8 pairs of balanced 1/4" TRS inputs, which are switchable from +4 or -10dB. A pair of balanced XLR outputs are provided, the second of which has pre or post-fader bussing.

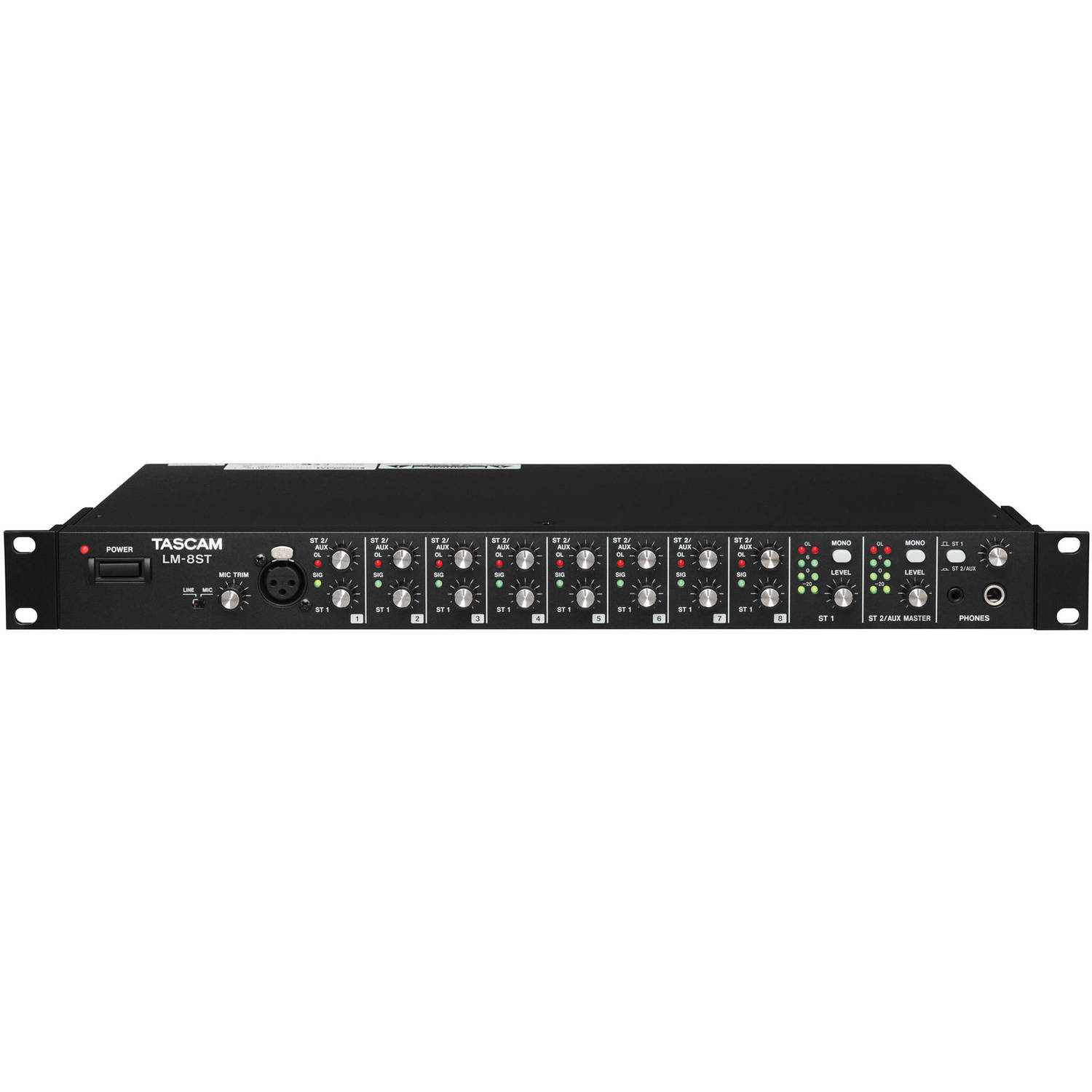

The mixer's front panel features a mic input with its own level control, as well as 1/4" and 3.5mm headphone jacks for monitoring. Each channel has 2 level control knobs and is switchable to the pre-fader or post-fader output. LED meters let you keep tabs on audio levels. A stereo balanced buss output/input is provided for cascade applications. A ground lift switch is provided to reduce hum caused by ground loops.

View Product Features
  • Slim 1RU chassis fits into any standard equipment rack
  • 8 pairs of balanced 1/4" TRS inputs are switchable from +4 or -10dB
  • A pair of balanced XLR outputs are provided, the second of which has pre or post-fader bussing
  • Mic input on the front panel with independent level control
  • Standard 1/4" and 3.5mm headphone jacks
  • Each channel has 2 level control knobs and is switchable to the pre-fader or post-fader output
  • LED meters let you keep tabs on audio levels
  • Stereo balanced buss output/input is provided for cascade applications
  • Ground lift switch reduces hum caused by ground loops
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    LM-8ST

    TASCAM LM-8ST Rackmount 8-Channel Line Mixer

    $799.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the TASCAM LM-8ST Rackmount 8-Channel Line Mixer

The LM-8ST from TASCAM is a professional-quality line mixer that provides you with 8 stereo channels, perfect for live performance and installed audio applications. The 1RU unit features 8 pairs of balanced 1/4" TRS inputs, which are switchable from +4 or -10dB. A pair of balanced XLR outputs are provided, the second of which has pre or post-fader bussing.

The mixer's front panel features a mic input with its own level control, as well as 1/4" and 3.5mm headphone jacks for monitoring. Each channel has 2 level control knobs and is switchable to the pre-fader or post-fader output. LED meters let you keep tabs on audio levels. A stereo balanced buss output/input is provided for cascade applications. A ground lift switch is provided to reduce hum caused by ground loops.

Key Features

  • Slim 1RU chassis fits into any standard equipment rack
  • 8 pairs of balanced 1/4" TRS inputs are switchable from +4 or -10dB
  • A pair of balanced XLR outputs are provided, the second of which has pre or post-fader bussing
  • Mic input on the front panel with independent level control
  • Standard 1/4" and 3.5mm headphone jacks
  • Each channel has 2 level control knobs and is switchable to the pre-fader or post-fader output
  • LED meters let you keep tabs on audio levels
  • Stereo balanced buss output/input is provided for cascade applications
  • Ground lift switch reduces hum caused by ground loops

TASCAM LM-8ST Rackmount 8-Channel Line Mixer Specs

Mixer
Number of Analog Input Channels
8 (8 Mono / 8 Stereo)
Number of Mic Preamps
1
Analog Output Channels
1x Stereo Master Output 1x Stereo ALT Master Output 1x Stereo Bus/Subgroup Output 1x Stereo Headphone Output
Mix Routing
2x Stereo Aux Bus/Subgroup
Faders & Level Adjustment
No
Meters
8x Single LED
Signal Processing
Dynamic Processing
No
Sidechain Filters
No
EQ
No
Solo/Mute
No
Built-In Effects
No
Performance
I/O Impedance
XLR Mic Input: 2.4 Kilohms 1/4" Stereo Input: 16 Kilohms Stereo Output: 94 Ohms
Connectivity

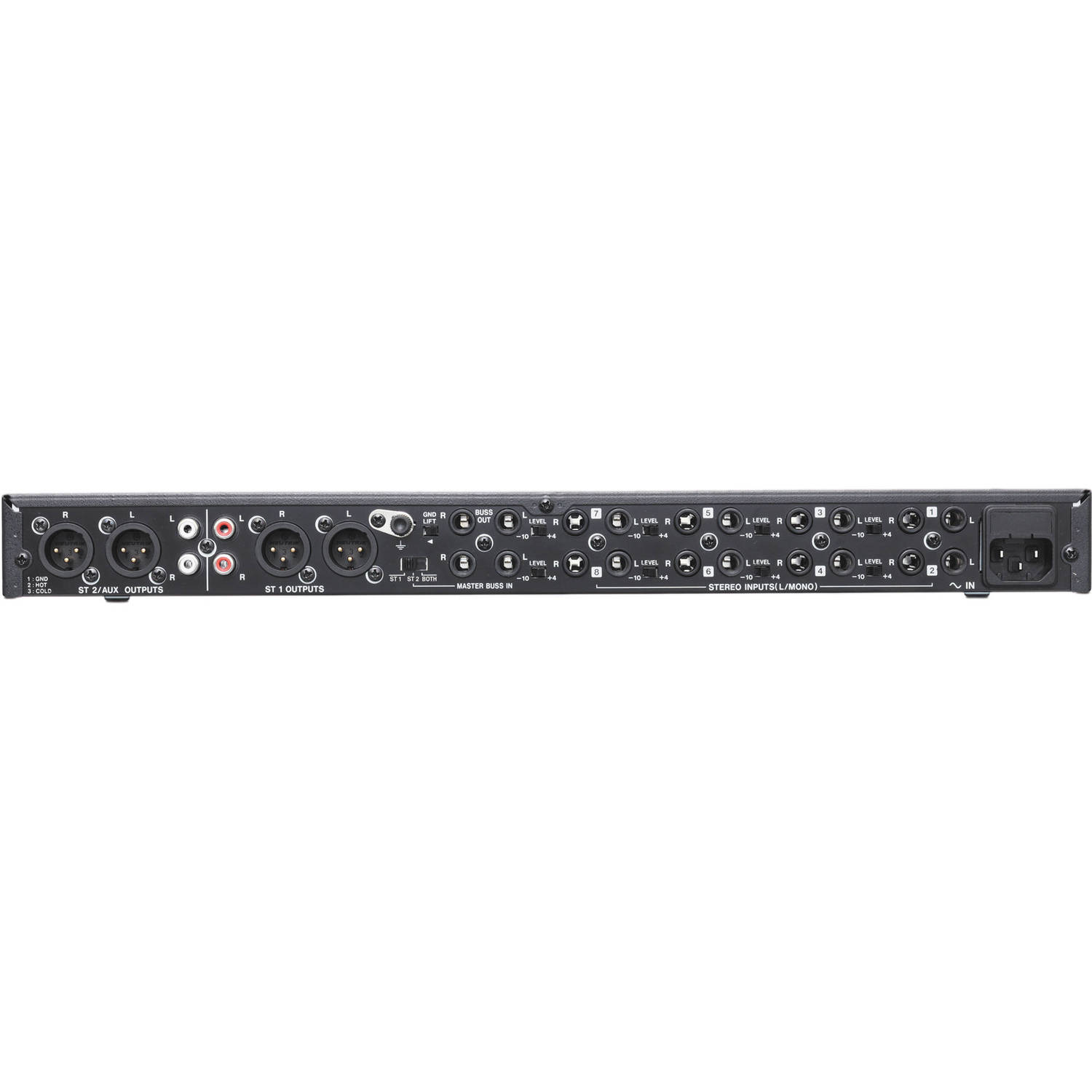

Analog Inputs
1x XLR 3-Pin Mic Input 16x 1/4" TRS Input (8 Stereo Pairs) 2x 1/4" Main Input (1 Stereo Pair)
Analog Outputs
1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output 2x 1/4" Main Output (1 Stereo Pair) 4x XLR 3-Pin Output (2 Stereo Pairs) 2x Stereo RCA Coaxial Output
Phantom Power
No
Digital I/O
No
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Power Consumption
15 W
Physical
Rack Mountable
Yes
Rackmount Size
1 U
Dimensions
19 x 1.7 x 11" / 482 x 44 x 280 mm
Weight
8.4 lb / 3.8 kg

Key Features

  • Slim 1RU chassis fits into any standard equipment rack
  • 8 pairs of balanced 1/4" TRS inputs are switchable from +4 or -10dB
  • A pair of balanced XLR outputs are provided, the second of which has pre or post-fader bussing
  • Mic input on the front panel with independent level control
  • Standard 1/4" and 3.5mm headphone jacks
  • Each channel has 2 level control knobs and is switchable to the pre-fader or post-fader output
  • LED meters let you keep tabs on audio levels
  • Stereo balanced buss output/input is provided for cascade applications
  • Ground lift switch reduces hum caused by ground loops
