SKU: MODEL 16

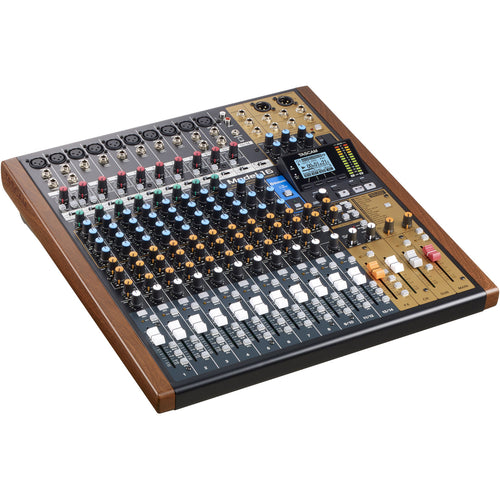

TASCAM Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface

$899.00 - $1,299.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The highly flexible TASCAM Model 16 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured, space-saving mixer offers 14 input channels including 10 HDDA microphone preamps with phantom power, two 1/4" Hi-Z jacks, eight balanced 1/4" mono line inputs, and two balanced 1/4" stereo line inputs. Additionally, the last stereo input can accept signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack. There is single-knob compression available on the first eight channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX presets. The main and sub stereo buses offer simple grouping as well as a selectable and assignable 4-band semi-parametric EQ for fine tuning your mix. The Model 16 offers 15 faders, with 60mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment. The integrated 16-track recorder takes its cue from TASCAM's Portastudio line, offering multitrack recording with the ability to record the 14 input channels plus the main mix to an SD card as well as multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to overdub and punch in/out without extensive menu diving. Additionally, the Model 16 features a built-in 16x14 USB 2.0 audio interface (up to 24-bit / 48 kHz resolution) for DAW-based recording and playback. Read more

Features

  • 14 Input Channels
  • 10 HDDA Microphone Preamps
  • 14 Line Inputs and 2 Hi-Z Inputs
  • Single-Knob Compressor on Channels 1-8
  • 4-Band EQ for Main or Monitor Outputs
  • 3 Aux Sends, 16 Editable Multi-FX
  • 16-Track SD Recorder with Overdubbing
  • USB 2.0 Audio Interface (16-In x 14-Out)
  • Wireless Bluetooth 5.0 Connectivity
  • Rack Mountable via Optional Hardware

Business Financing Options Avaiable

View Available Financing

The highly flexible TASCAM Model 16 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured, space-saving mixer offers 14 input channels including 10 HDDA microphone preamps with phantom power, two 1/4" Hi-Z jacks, eight balanced 1/4" mono line inputs, and two balanced 1/4" stereo line inputs. Additionally, the last stereo input can accept signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack. There is single-knob compression available on the first eight channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX presets. The main and sub stereo buses offer simple grouping as well as a selectable and assignable 4-band semi-parametric EQ for fine tuning your mix. The Model 16 offers 15 faders, with 60mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment. The integrated 16-track recorder takes its cue from TASCAM's Portastudio line, offering multitrack recording with the ability to record the 14 input channels plus the main mix to an SD card as well as multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to overdub and punch in/out without extensive menu diving. Additionally, the Model 16 features a built-in 16x14 USB 2.0 audio interface (up to 24-bit / 48 kHz resolution) for DAW-based recording and playback. Read more

Features

  • 14 Input Channels
  • 10 HDDA Microphone Preamps
  • 14 Line Inputs and 2 Hi-Z Inputs
  • Single-Knob Compressor on Channels 1-8
  • 4-Band EQ for Main or Monitor Outputs
  • 3 Aux Sends, 16 Editable Multi-FX
  • 16-Track SD Recorder with Overdubbing
  • USB 2.0 Audio Interface (16-In x 14-Out)
  • Wireless Bluetooth 5.0 Connectivity
  • Rack Mountable via Optional Hardware

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the TASCAM Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface

There is single-knob compression available on the first eight channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX presets. The main and sub stereo buses offer simple grouping as well as a selectable and assignable 4-band semi-parametric EQ for fine tuning your mix. The Model 16 offers 15 faders, with 60mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment. The integrated 16-track recorder takes its cue from TASCAM's Portastudio line, offering multitrack recording with the ability to record the 14 input channels plus the main mix to an SD card as well as multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to overdub and punch in/out without extensive menu diving. Additionally, the Model 16 features a built-in 16x14 USB 2.0 audio interface (up to 24-bit / 48 kHz resolution) for DAW-based recording and playback.

Key Features

  • 14 Input Channels
  • 10 HDDA Microphone Preamps
  • 14 Line Inputs and 2 Hi-Z Inputs
  • Single-Knob Compressor on Channels 1-8
  • 4-Band EQ for Main or Monitor Outputs
  • 3 Aux Sends, 16 Editable Multi-FX
  • 16-Track SD Recorder with Overdubbing
  • USB 2.0 Audio Interface (16-In x 14-Out)
  • Wireless Bluetooth 5.0 Connectivity
  • Rack Mountable via Optional Hardware

Already own this item and want to sell it?

Click here to sell your item

TASCAM Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface Specs

General
Form Factor
Desktop
Number of Tracks
16
Maximum Simultaneous Tracks
14x Recording
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
12
Built-In Microphone
No
Input Level Adjustment
14x Fader
Number of Headphone Mixes
1x Master
Sample Pads
No
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs: Up to 79 dB USB, SD: 24 dB XLR Mic Inputs: 0 dB to 50 dB 1/4" Line Inputs: -10 dB to +40 dB (Channels 1 to 8) -20 dB to +30 dB (Channels 9 to 12)
High-Pass Filter
100 Hz, 18 dB/Octave
EQ
4-Band EQ
EQ Parameters
Mono Channels: High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.55 Q (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 12 kHz Mid: ±15 dB at 600 Hz, 0.55 Q (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) Master: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.5 to 5 Q (Parametric) Low: ±15 dB at 60 Hz (Shelving)
Solo/Mute
Mute per Input Channel
Connectivity
Analog Audio I/O
10x XLR 3-Pin Balanced Mic Input 12x 1/4" TRS Balanced Line Input 1x Stereo RCA Coaxial Unbalanced Line Input 2x XLR 3-Pin Balanced Main Output 3x 1/4" TRS Balanced Aux Output 2x 1/4" TRS Balanced Control Room Output 1x 1/4" TRS Headphone Output 2x 1/4" TRS Balanced Subgroup/Bus Output 1x 1/8" / 3.5 mm TRS Unbalanced Stereo Output 2x 1/4" TRS Unbalanced Insert In/Out
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
No
Host Connection / USB
1x USB-B (Class-Compliant)
Host Connection Protocol
USB 2.0
Sync I/O
No
Network I/O
No
MIDI I/O
No
Other I/O
1x 1/4" TS Footswitch Input
Wireless
Bluetooth
Performance
Frequency Response
Analog: 20 Hz to 30 kHz +0.5/-1 dB Digital: 20 Hz to 20 kHz +0.5/-1 dB
Maximum Input Level
RCA Inputs: +8 dBV 1/8" / 3.5 mm Inputs: +8 dBV XLR Mic Inputs: +10 dBu 1/4" Line Inputs: +22 dBu Insert Return: +18 dBu
Maximum Output Level
Monitor/FX/Subgroup/Control Room Outputs: +16 dBu Main Outputs: +22 dBu Insert Send: +18 dBu
Headphone Output Power
10 mW per Channel into 60 Ohms (Max)
Impedance
RCA Inputs: 10 Kilohms 1/8" / 3.5 mm Inputs: 10 Kilohms XLR Mic Inputs: 1.8 Kilohms 1/4" Line Inputs: 22 Kilohms Headphone Outputs: 32 Ohms Control Room/FX/Monitor/Subgroup Outputs: 200 Ohms Insert Return: 10 Kilohms Insert Send: 100 Ohms Main Outputs: 100 Ohms
THD
Mic Inputs: < 0.01% (Min Gain, +10 dBu Input, 1 kHz) < 0.004% (Min Gain, +4 dBu Input, 1 kHz)
Crosstalk
-80 dB (1 kHz)
EIN
-127 dBu (150-Ohm Source, Max Gain)
Digital Audio
Audio File Formats
BWF, WAV
Sample Rates
44.1 / 48 kHz
Bit Depths
16 / 24-Bit
Audio Storage & Playback
Supported Media
SD Card
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Supported Media Capacity
SD: 512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 512 GB Maximum
File System Support
SD: FAT16 SDHC: FAT32 SDXC: exFAT
Compatibility
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPhone Android Smartphone
Required Hardware
Available USB 2.0 Port
Power
Power Requirements
AC Input, AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter
Included
Power Consumption
40 W
Physical
Dimensions
16.9 x 18.2 x 4.4" / 43 x 46.3 x 11.3 cm (Including Controls and Protrusions)
Weight
15.4 lb / 7.0 kg

Key Features

  • 14 Input Channels
  • 10 HDDA Microphone Preamps
  • 14 Line Inputs and 2 Hi-Z Inputs
  • Single-Knob Compressor on Channels 1-8
  • 4-Band EQ for Main or Monitor Outputs
  • 3 Aux Sends, 16 Editable Multi-FX
  • 16-Track SD Recorder with Overdubbing
  • USB 2.0 Audio Interface (16-In x 14-Out)
  • Wireless Bluetooth 5.0 Connectivity
  • Rack Mountable via Optional Hardware
