Yamaha

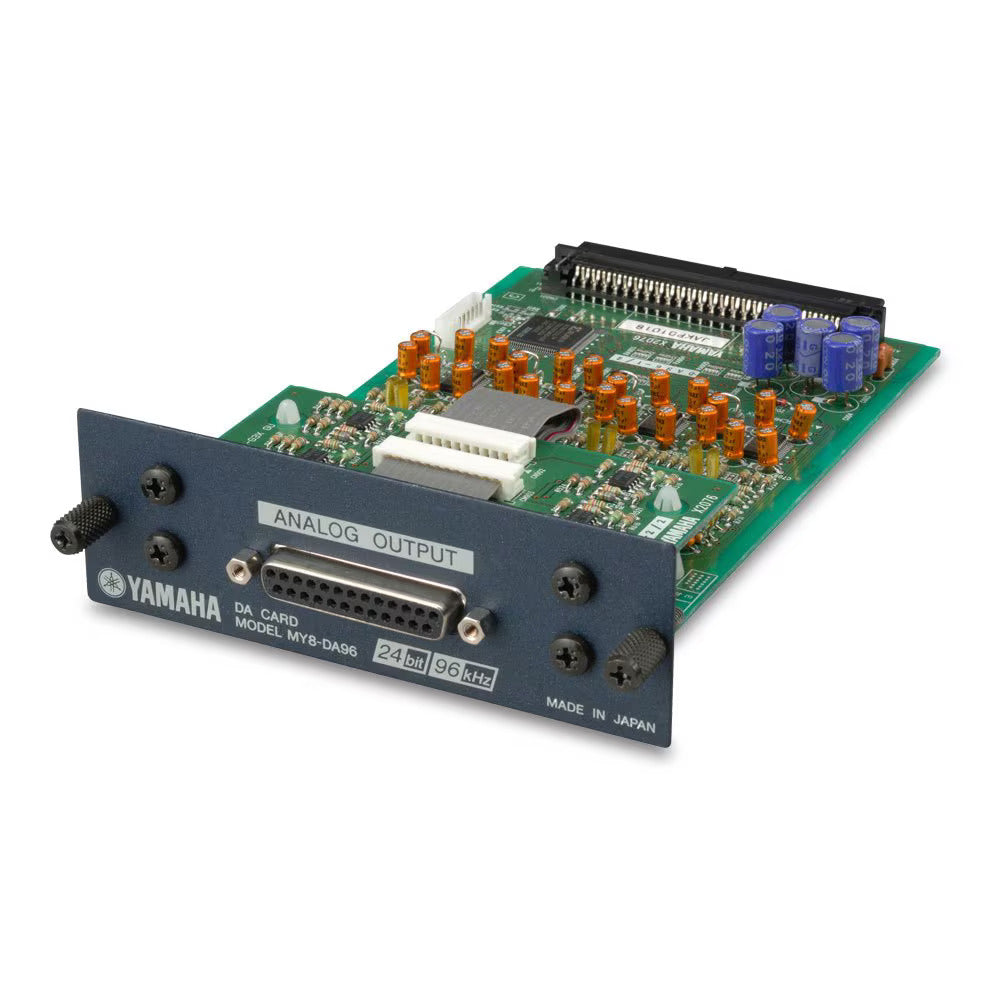

Yamaha MY8DA96 DA CARD

$0.00 -

The Yamaha MY8-DA96 is an optional digital-to-analog output card for compatible Yamaha digital mixing consoles and signal processors. It has eight analog outputs.

View Product Features

  • 8 Analog Outputs: Provides 8 channels of high-quality analog outputs via Euroblock connectors.
  • High-Quality DA Converters: Utilizes premium digital-to-analog converters for pristine sound reproduction.
  • 96kHz Support: Supports high sampling rates up to 96kHz for pristine audio quality.
  • Euroblock Connectors: Uses secure, screw-terminal Euroblock type connectors for easy installation.
  • Word Clock Synchronization: Allows external synchronization via word clock reference.
  • Mini-YGDAI Format: Fits into compatible Yamaha Mini-YGDAI expansion slots.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Yamaha MY8DA96 DA CARD

The Yamaha MY8DA96 is a professional 8-channel digital-to-analog output card designed to expand the analog output capabilities of Yamaha digital mixing consoles and other compatible digital audio systems. This interface card provides eight channels of high-fidelity analog audio output, converting pristine digital audio from the console's internal bus or routing matrix into balanced analog signals suitable for driving power amplifiers, recording devices, or external processors. It is a critical component for systems requiring additional discrete outputs beyond the console's built-in analog connections, such as for driving multiple zones of installed sound, sending feeds to broadcast trucks, or providing independent monitor mixes. The card adheres to Yamaha's high standards for audio conversion, ensuring transparent signal integrity and accurate reproduction.

Engineered to support high-resolution audio, the "96" in its model number indicates its capability to handle sampling rates up to 96 kHz, making it suitable for demanding applications where superior audio quality is paramount. Each of the eight channels outputs a balanced analog signal via a reliable, industry-standard D-Sub 25-pin connector, which is typically connected to a breakout cable terminating in individual XLR or TRS jacks for integration into a patchbay or direct connection to downstream equipment. The card is designed for simple installation into an available Mini-YGDAI expansion slot on compatible Yamaha consoles, where it is immediately recognized by the system and its outputs become available for patching within the console's software.

Built with professional reliability in mind, the MY8DA96 features high-quality digital-to-analog converters (DACs) and robust circuitry for stable, noise-free operation in live and installed environments. Its integration is seamless, extending the console's I/O footprint without compromising the digital audio path's quality. For engineers using Yamaha digital mixers like the DM2000, PM5D, or similar, the MY8DA96 represents an essential expansion tool, providing the necessary analog outputs to build complex, large-scale audio systems while maintaining the sonic excellence expected from professional digital audio equipment.

Key Features

  • 8 Analog Outputs: Provides 8 channels of high-quality analog outputs via Euroblock connectors.
  • High-Quality DA Converters: Utilizes premium digital-to-analog converters for pristine sound reproduction.
  • 96kHz Support: Supports high sampling rates up to 96kHz for pristine audio quality.
  • Euroblock Connectors: Uses secure, screw-terminal Euroblock type connectors for easy installation.
  • Word Clock Synchronization: Allows external synchronization via word clock reference.
  • Mini-YGDAI Format: Fits into compatible Yamaha Mini-YGDAI expansion slots.

Yamaha MY8DA96 DA CARD Specs

Interface Specifications
Format
8-channel Digital-to-Analog
Connector
25-pin D-Sub female
Output Type
Balanced analog
Sample Rate Support
32, 44.1, 48, 88.2, 96 kHz
Audio Performance
Resolution
24-bit
Dynamic Range
>110 dB (A-weighted)
THD+N
<0.03%
Output Impedance
200 Ω
Physical & Compatibility
Card Format
Yamaha Mini-YGDAI slot
Dimensions
Publicly available spec required
Power Consumption
5W typical
Compatibility
DM2000, PM5D, 02R96, etc.
Electrical Specifications
Output Level
+24 dBu maximum (balanced)
Cable Breakout
Requires DB25 to 8x XLR/TRS cable
Common Mode Rejection
>40 dB at 1 kHz
Signal Reference
Word Clock
Derived from console or external via other card
