Elation

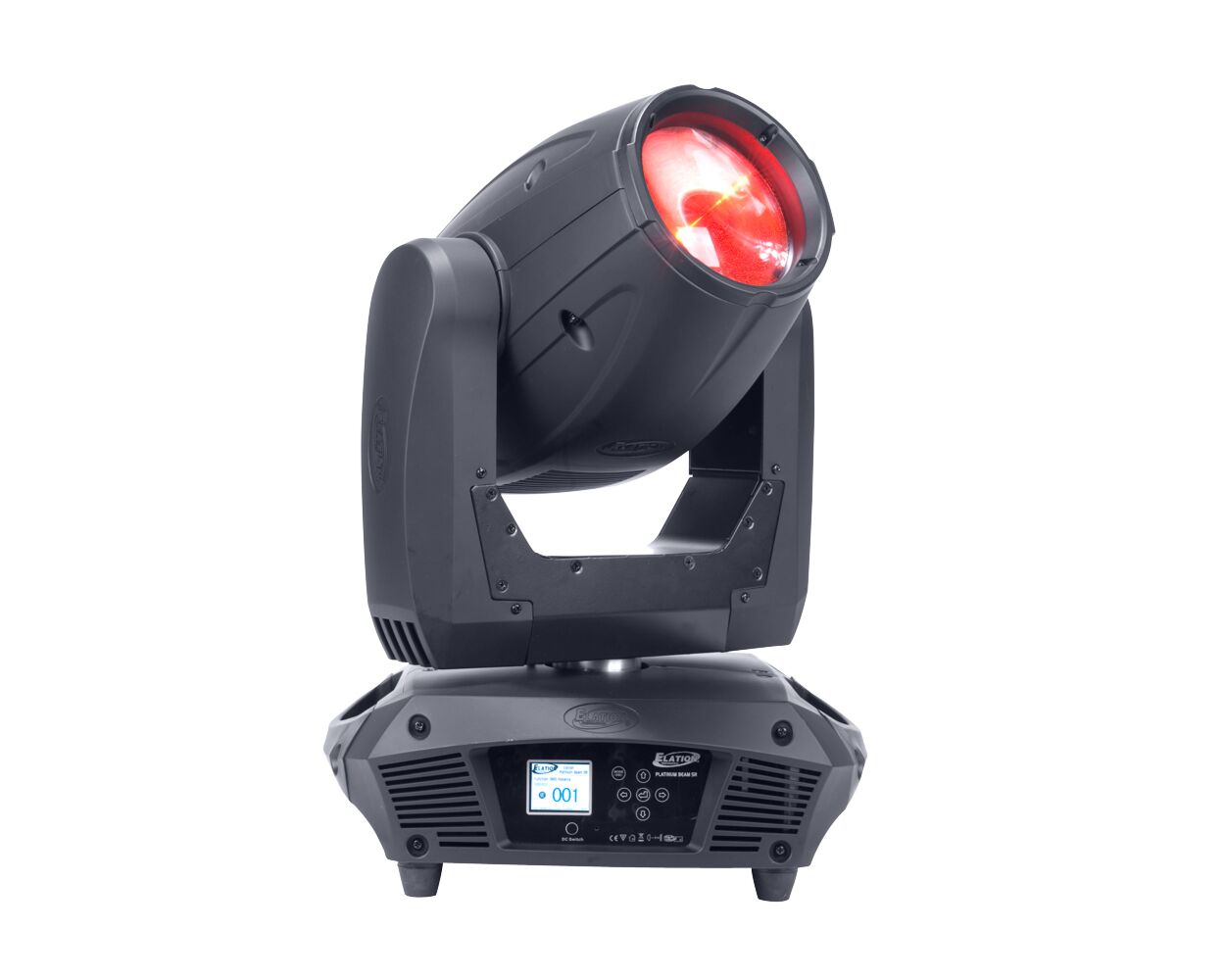

Elation CL-EPB619 Platinum Beam 5R Moving Lights

$0.00

The Platinum Beam 5R is a compact and lightweight moving head fixture that uses a Philips MSD Platinum 5R 189W lamp to produce a sharp, narrow, and concentrated beam of light. Its optical design allows for an output comparable to much larger and higher-wattage fixtures. The unit features a full range of effects, including a rotating gobo wheel, a color wheel with 12 dichroic colors, and a rotating prism for splitting the beam. With its fast 3-phase motors, it is capable of extremely quick and precise movements. A hybrid frost filter allows the fixture to double as a wash-style effect.

View Product Features

Light source: Philips MSD Platinum 5R 189W discharge lamp.
Beam angle: A razor-sharp 2.5° fixed beam.
Output: Generates 6,600 lumens, with 28,360 lux measured at 15 meters.
Color wheel: 12 dichroic colors plus white, including CTO and CTB correction filters and UV.
Gobo wheel: Features 8 rotating, indexing, and interchangeable metal gobos.
Prism: 8-facet rotating prism for splitting and multiplying the beam effect.
Frost filter: A hybrid frost filter diffuses the beam to create a soft wash effect.
Dimmer and strobe: Includes a mechanical dimmer (0–100%) and a variable-speed strobe effect.
Motors: Features high-speed, 16-bit 3-phase motors for ultra-fast and accurate pan and tilt movements.
Pan/Tilt: 540° or 630° pan and 265° tilt movement.
Control and connectivity
DMX modes: 11, 13, and 16 DMX channel modes.

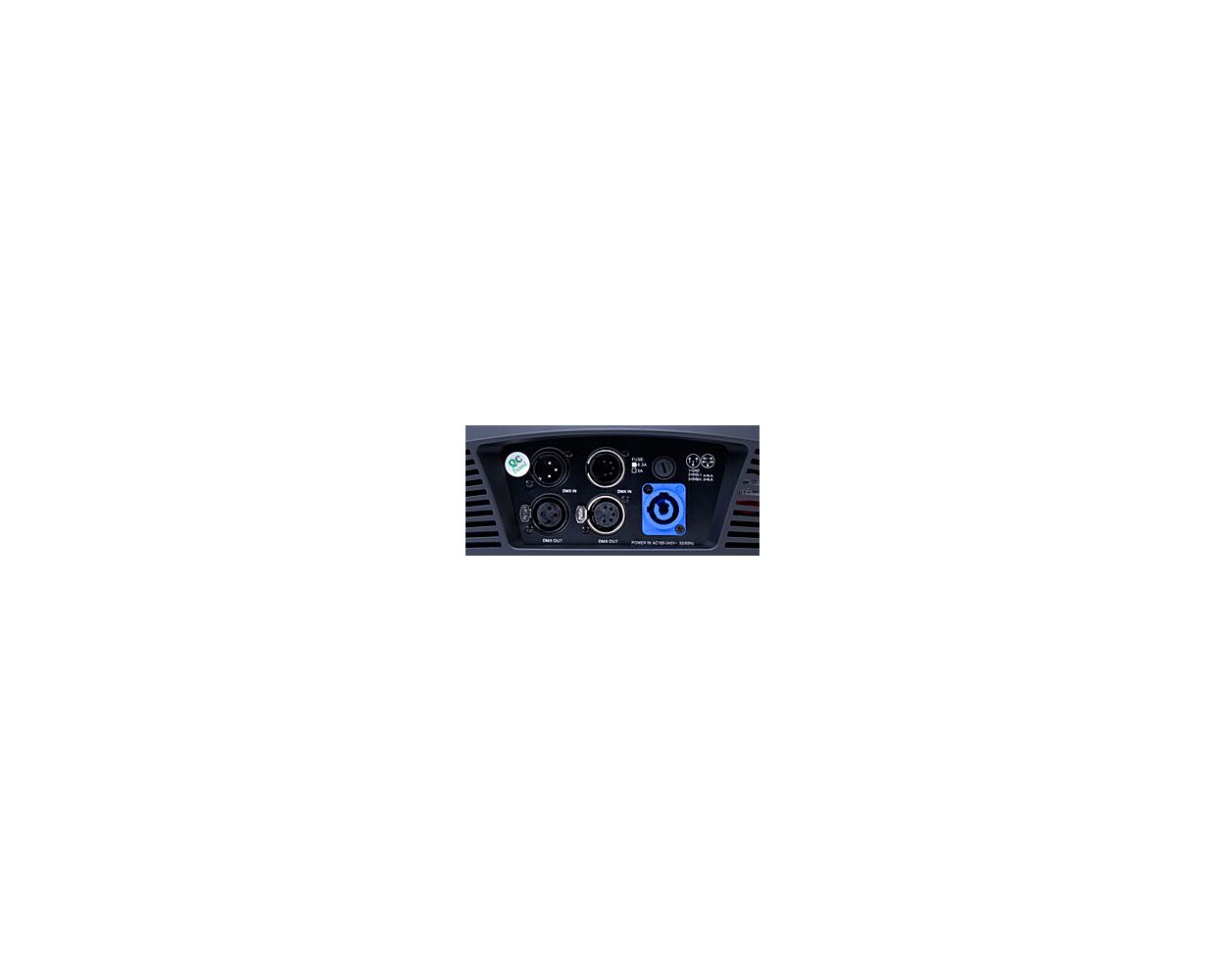

Connections: 3-pin and 5-pin DMX input/output.

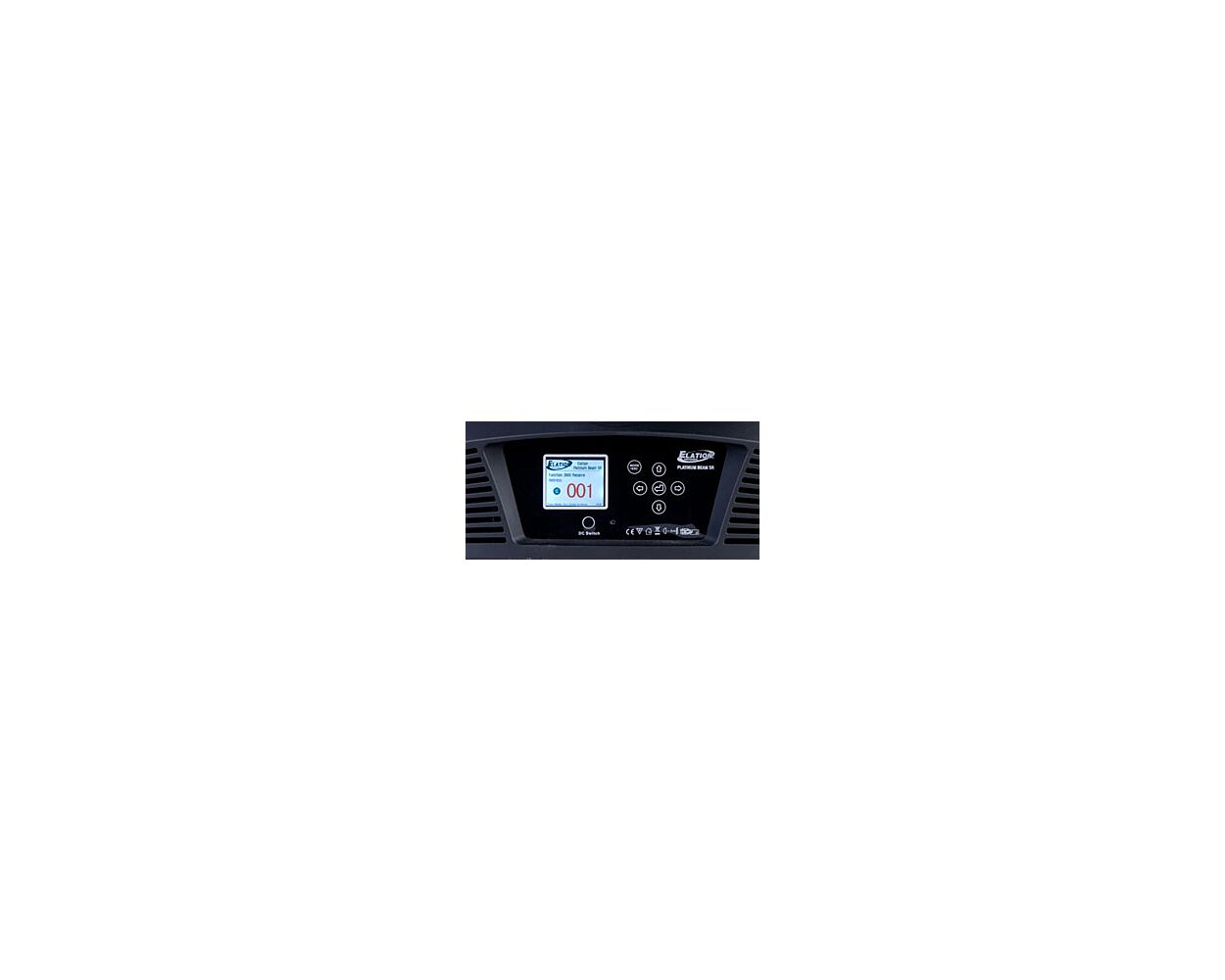

User interface: A 6-button touch control panel with a 180° reversible display.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Elation CL-EPB619 Platinum Beam 5R Moving Lights

Key Features

Light source: Philips MSD Platinum 5R 189W discharge lamp.
Beam angle: A razor-sharp 2.5° fixed beam.
Output: Generates 6,600 lumens, with 28,360 lux measured at 15 meters.
Color wheel: 12 dichroic colors plus white, including CTO and CTB correction filters and UV.
Gobo wheel: Features 8 rotating, indexing, and interchangeable metal gobos.
Prism: 8-facet rotating prism for splitting and multiplying the beam effect.
Frost filter: A hybrid frost filter diffuses the beam to create a soft wash effect.
Dimmer and strobe: Includes a mechanical dimmer (0–100%) and a variable-speed strobe effect.
Motors: Features high-speed, 16-bit 3-phase motors for ultra-fast and accurate pan and tilt movements.
Pan/Tilt: 540° or 630° pan and 265° tilt movement.
Control and connectivity
DMX modes: 11, 13, and 16 DMX channel modes.
Connections: 3-pin and 5-pin DMX input/output.
User interface: A 6-button touch control panel with a 180° reversible display.

Elation CL-EPB619 Platinum Beam 5R Moving Lights Specs

Key Features

Light source: Philips MSD Platinum 5R 189W discharge lamp.
Beam angle: A razor-sharp 2.5° fixed beam.
Output: Generates 6,600 lumens, with 28,360 lux measured at 15 meters.
Color wheel: 12 dichroic colors plus white, including CTO and CTB correction filters and UV.
Gobo wheel: Features 8 rotating, indexing, and interchangeable metal gobos.
Prism: 8-facet rotating prism for splitting and multiplying the beam effect.
Frost filter: A hybrid frost filter diffuses the beam to create a soft wash effect.
Dimmer and strobe: Includes a mechanical dimmer (0–100%) and a variable-speed strobe effect.
Motors: Features high-speed, 16-bit 3-phase motors for ultra-fast and accurate pan and tilt movements.
Pan/Tilt: 540° or 630° pan and 265° tilt movement.
Control and connectivity
DMX modes: 11, 13, and 16 DMX channel modes.
Connections: 3-pin and 5-pin DMX input/output.
User interface: A 6-button touch control panel with a 180° reversible display.
