SKU: C1805-47

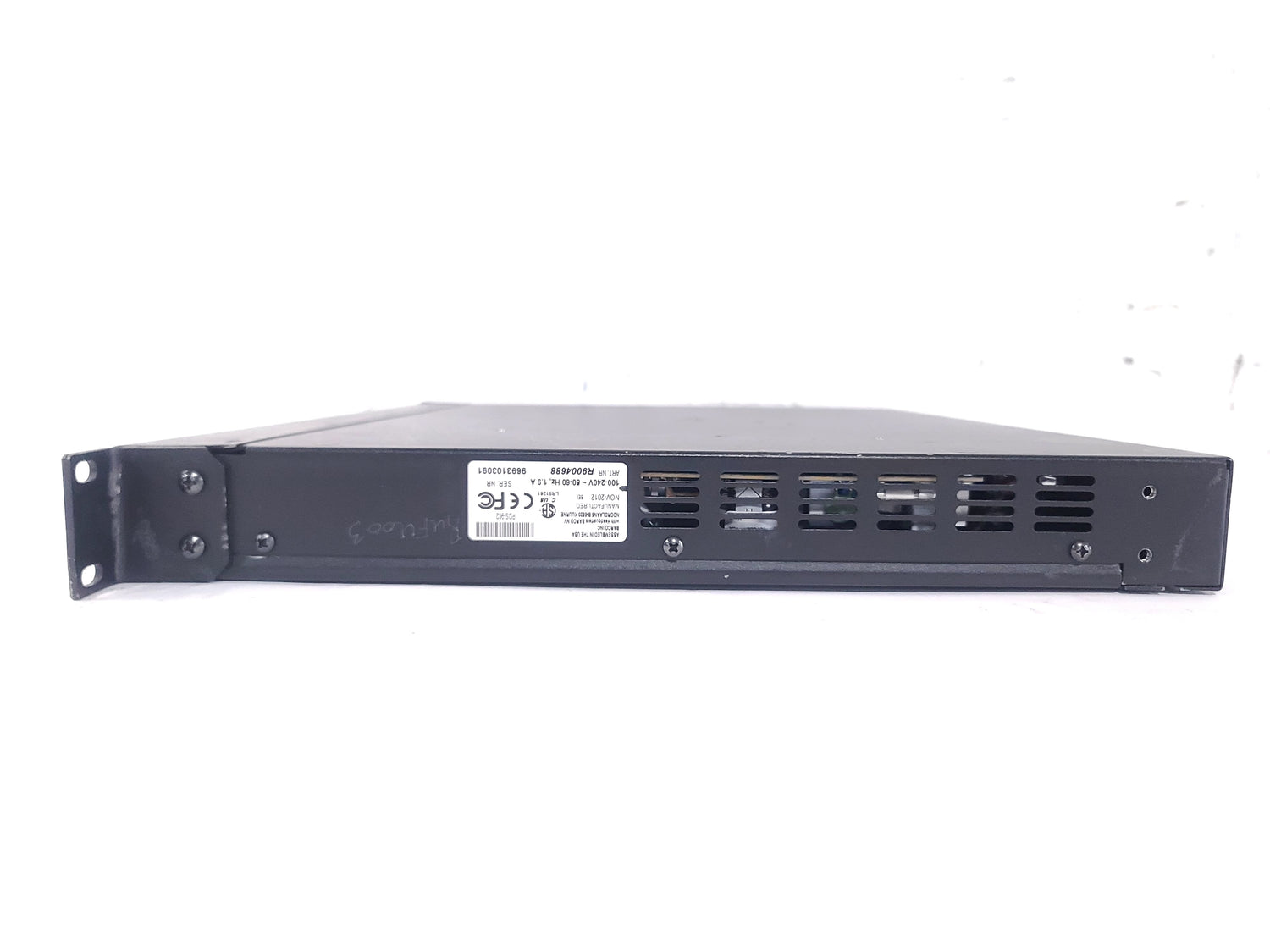

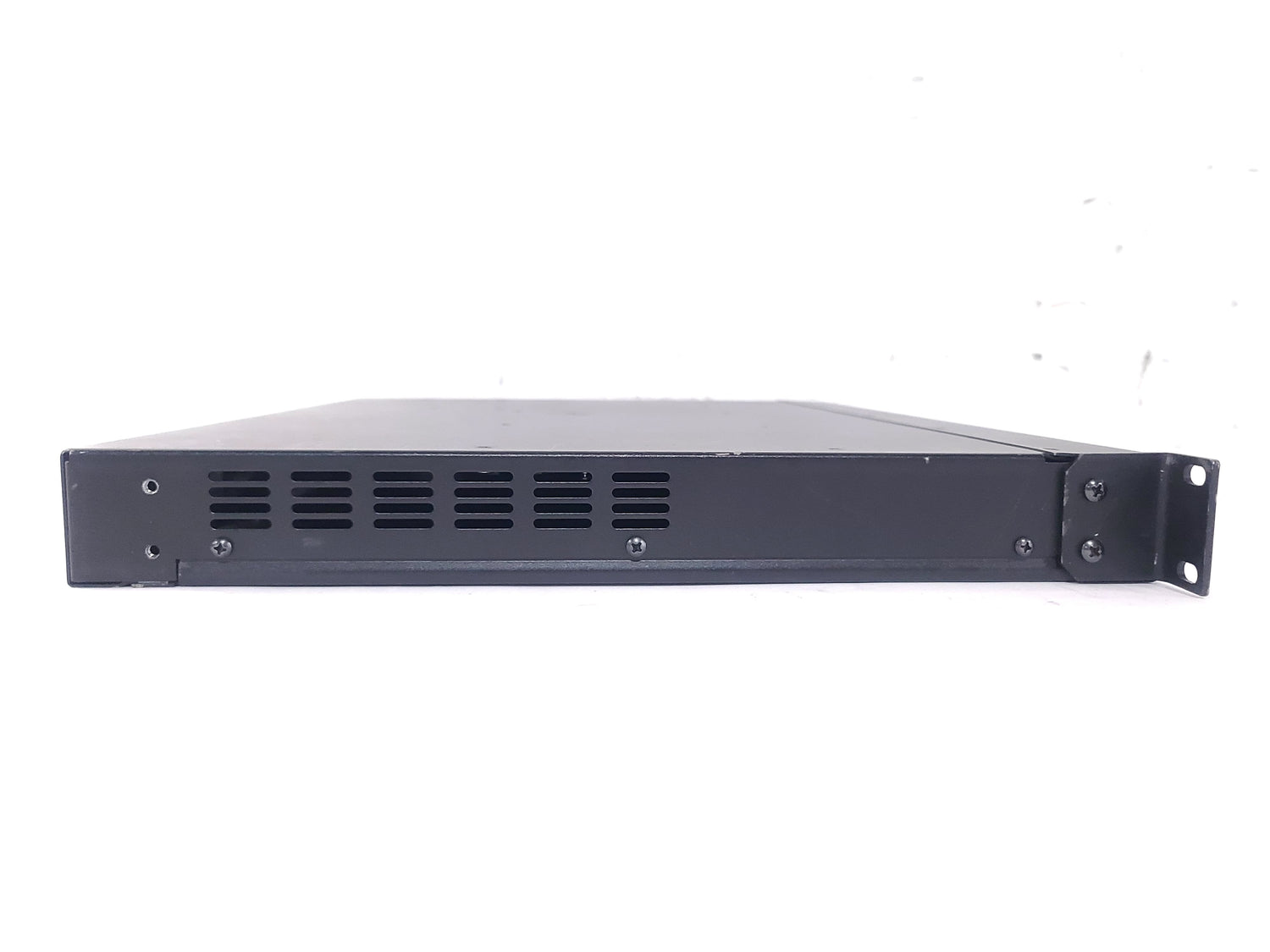

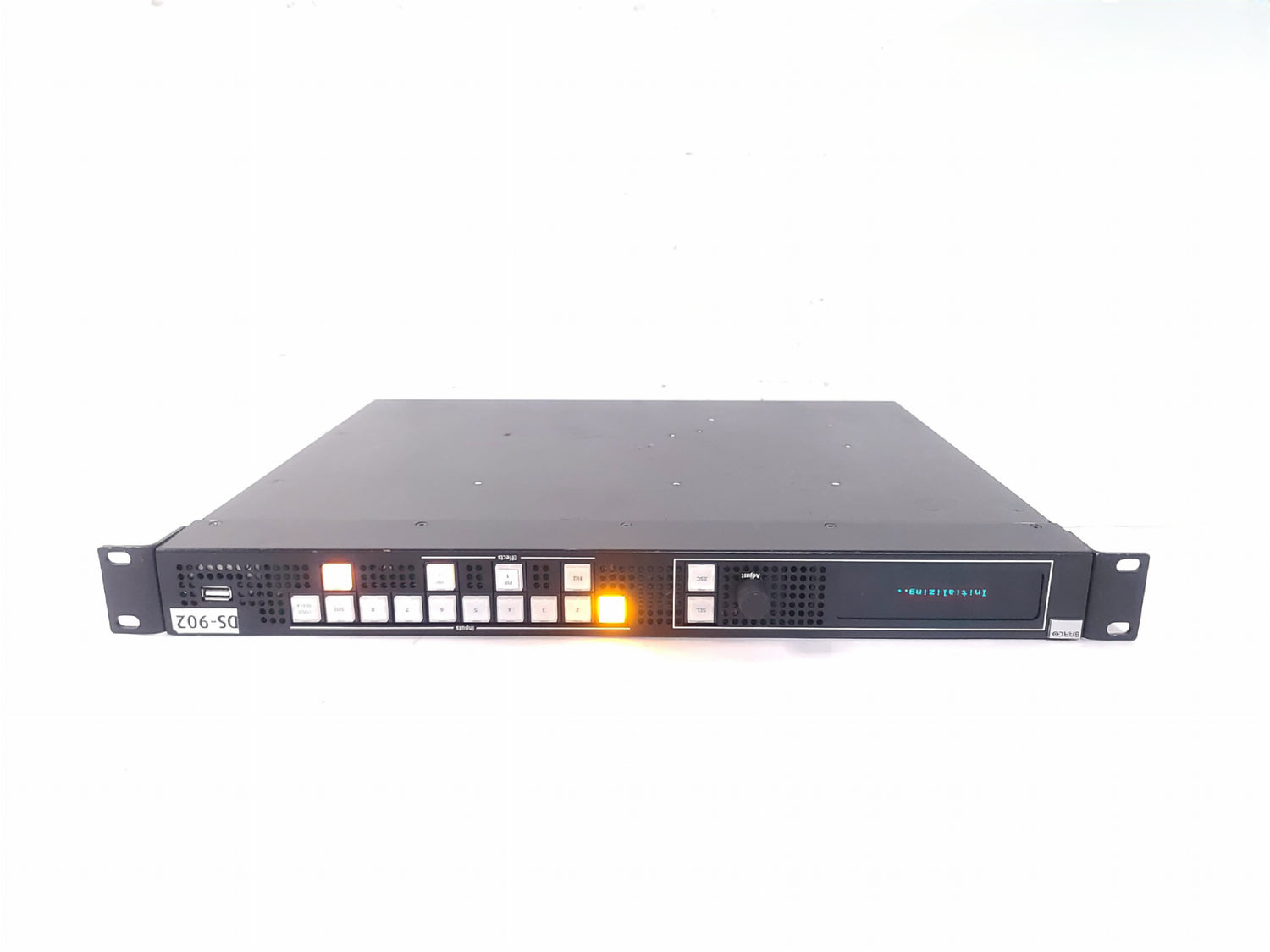

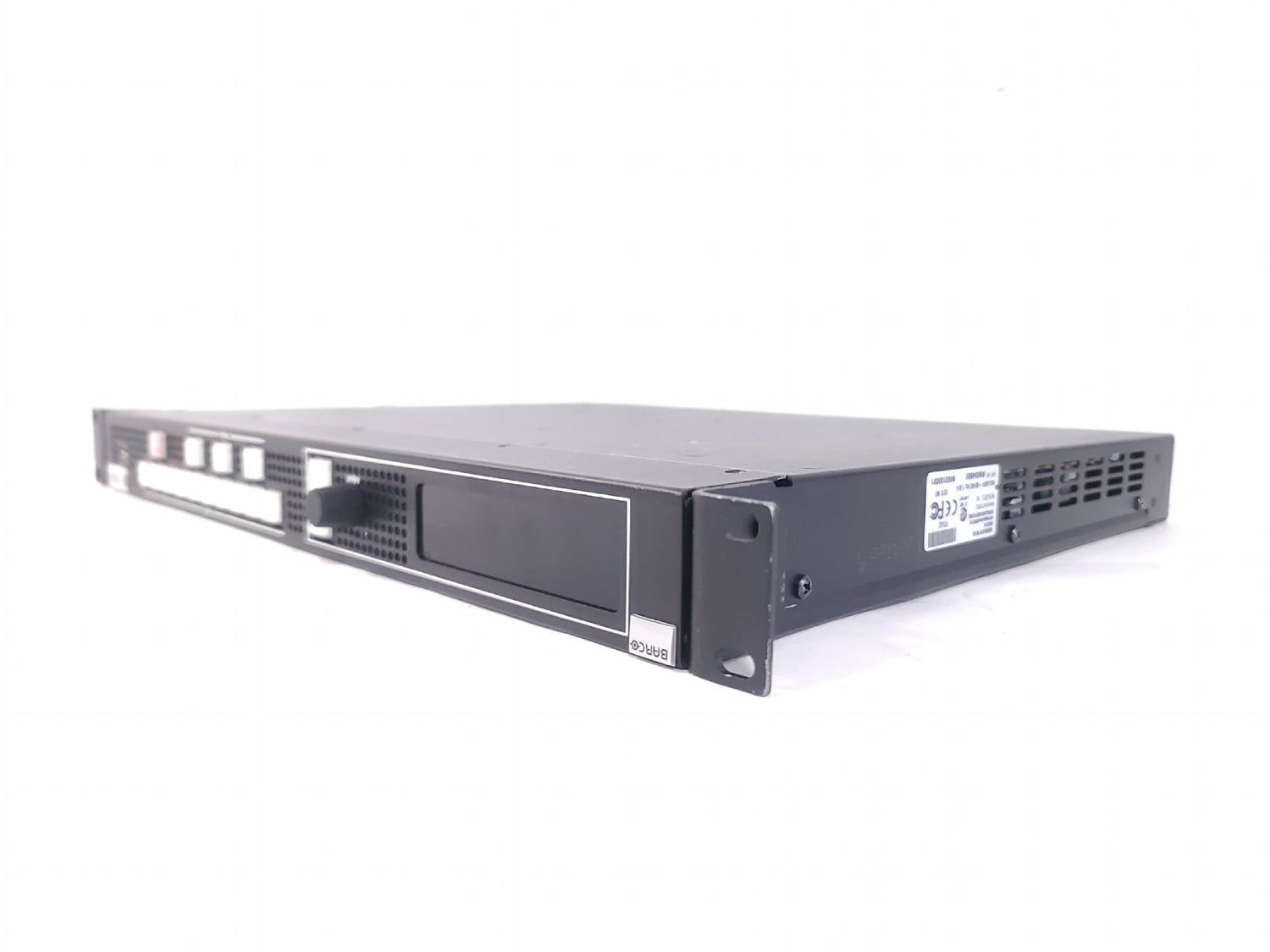

Barco R9004688 PDS‑902 Digital Switcher in Hard Carrying Case

$30.74 $112.48

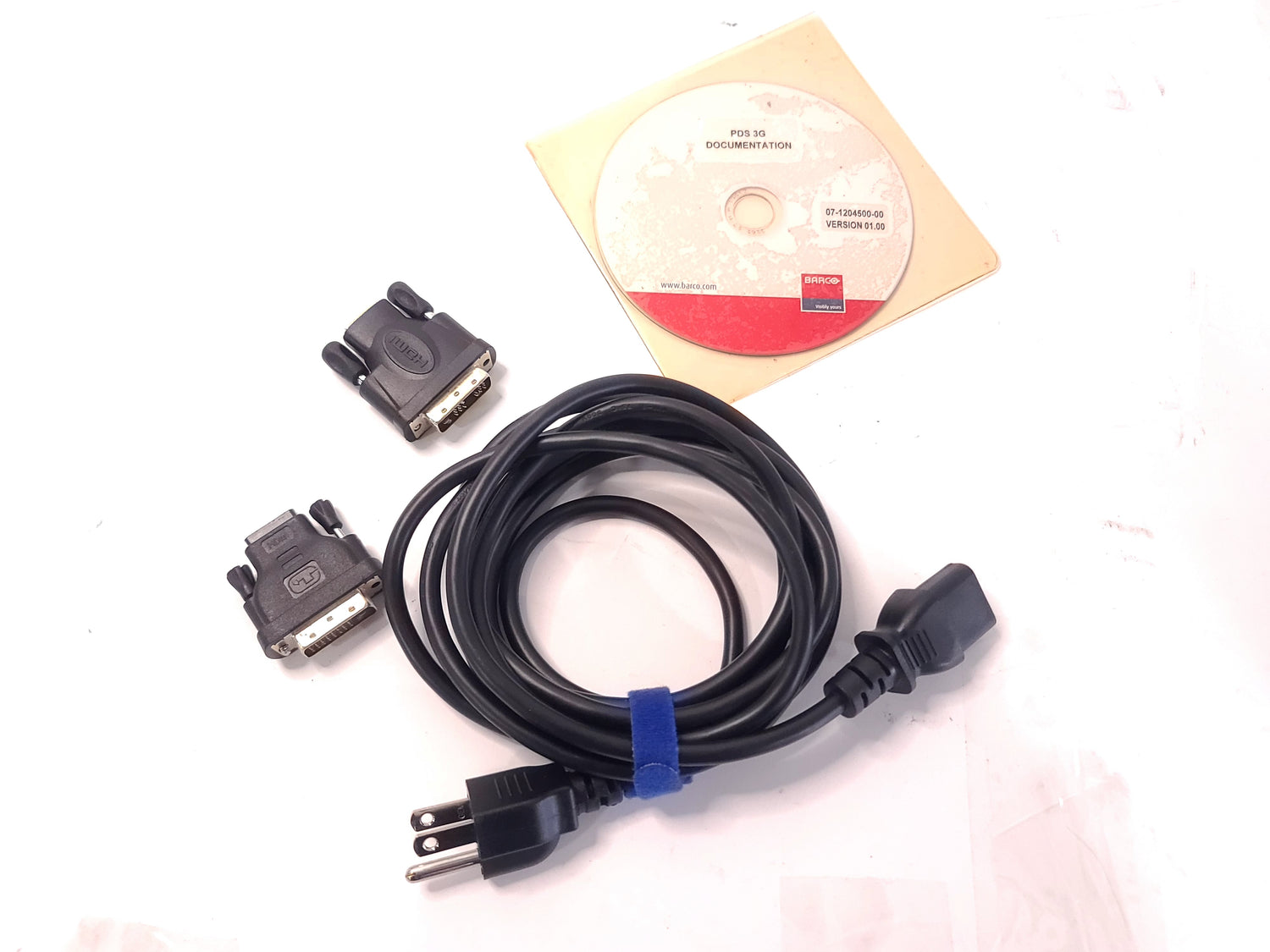

Items Included

  • Barco R9004688 PDS?902 Digital Switcher in Hard Carrying Case

Item Notes

Used. Power Tested.

Condition: Out of stock
Once stock replenishes, inventory will display below.
Title
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

The Barco PDS-902 Digital Switcher features four DVI-I inputs, one 3G/HD/SD SDI, and four universal analog inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to 3 images that can be used as a logo source during the presentation. Built-in test patterns are also provided. Read more

Features

  • Fast source acquisition
  • Fast and seamless switching
  • Auxiliary control from Encore and ScreenPRO-II Controllers
  • High-quality scaling technology
  • 10-Bit sampling and processing

Business Financing Options Avaiable

The Barco PDS-902 Digital Switcher features four DVI-I inputs, one 3G/HD/SD SDI, and four universal analog inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to 3 images that can be used as a logo source during the presentation. Built-in test patterns are also provided. Read more

Features

  • Fast source acquisition
  • Fast and seamless switching
  • Auxiliary control from Encore and ScreenPRO-II Controllers
  • High-quality scaling technology
  • 10-Bit sampling and processing

About the Barco R9004688 PDS‑902 Digital Switcher in Hard Carrying Case

The Barco R9004688 PDS-902 Digital Switcher is a professional-grade multi-format presentation switcher designed to deliver dependable video source management for live events, corporate presentations, educational facilities, and broadcast environments. Combining advanced image scaling with seamless switching technology, the unit enables operators to manage multiple video sources efficiently while maintaining excellent visual quality across connected displays and projection systems.

Supporting a wide selection of digital and analog input formats, the PDS-902 allows seamless integration of computers, cameras, media players, and other professional AV equipment into a unified workflow. Dedicated Program and Preview outputs provide operators with complete confidence during live productions, while integrated processing features - including Picture-in-Picture, high-quality scaling, transition effects, and image memory - offer enhanced presentation flexibility for demanding audiovisual applications.

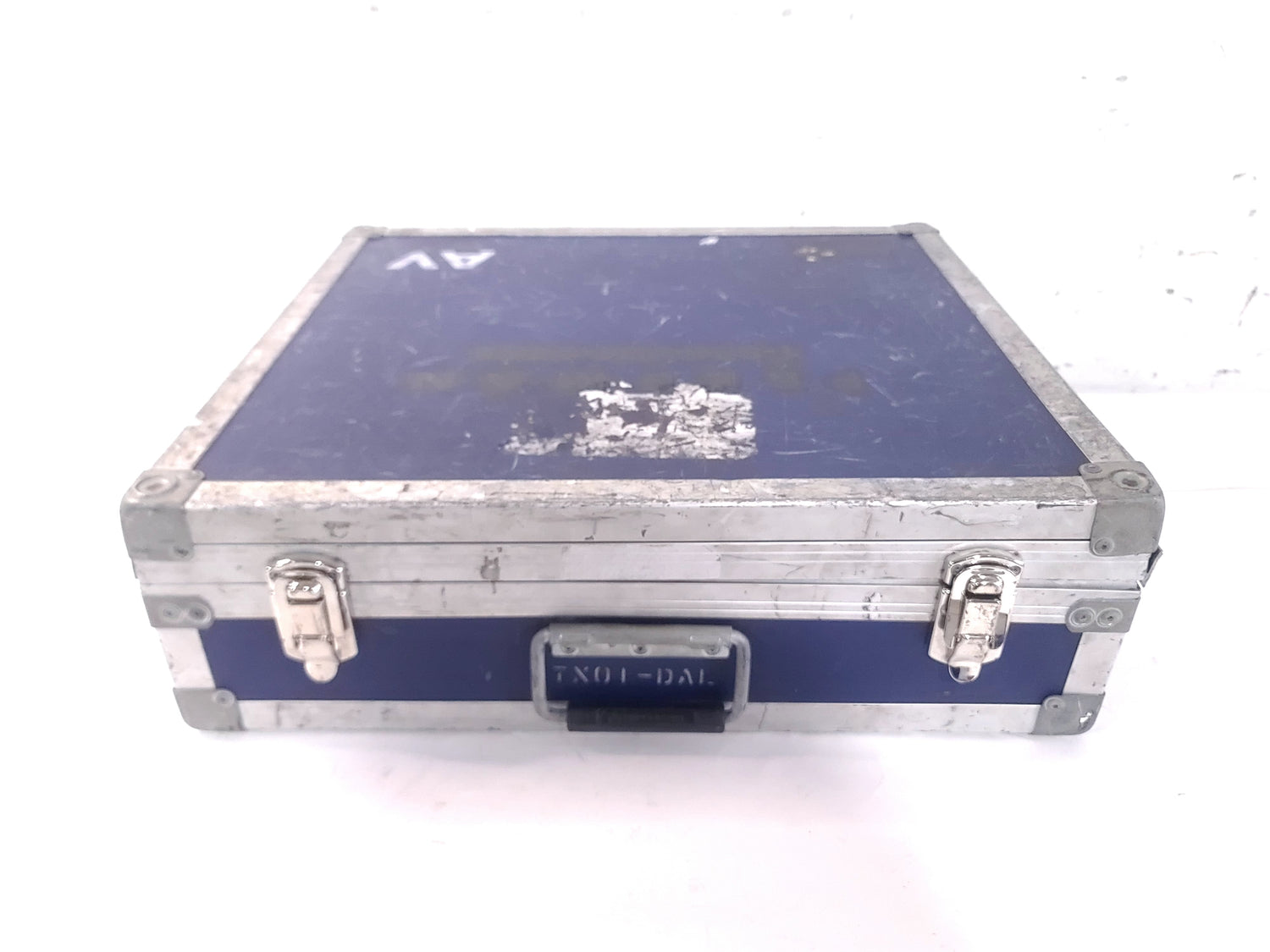

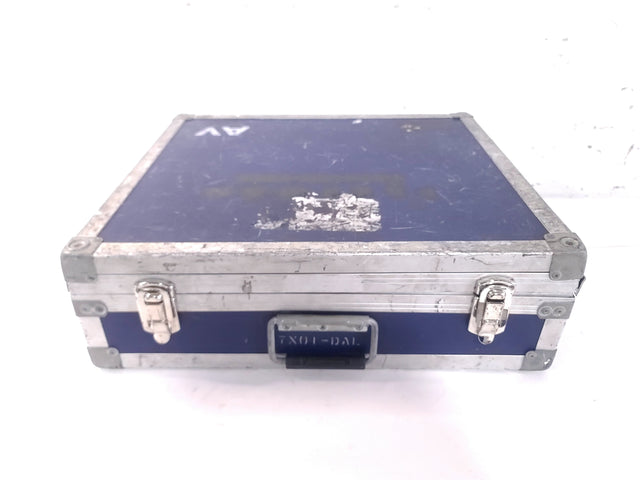

This package includes the Barco PDS-902 Digital Switcher housed in a protective hard carrying case, making it particularly suitable for rental companies, mobile production teams, and field technicians who require secure transportation between venues. The rugged case provides additional protection during storage and transit, helping preserve the switcher in professional touring and production environments.

Key Features

  • Fast source acquisition
  • Fast and seamless switching
  • Auxiliary control from Encore and ScreenPRO-II Controllers
  • High-quality scaling technology
  • 10-Bit sampling and processing

Barco R9004688 PDS‑902 Digital Switcher in Hard Carrying Case Specs

System Architecture
Product Model
Barco R9004688 PDS-902
Equipment Type
Professional Digital Presentation Switcher
Video Processing Engine
High-Performance Integrated Scaler
Switching Technology
Seamless Multi-Format Switching
Rack Configuration
1RU Standard Rack Unit

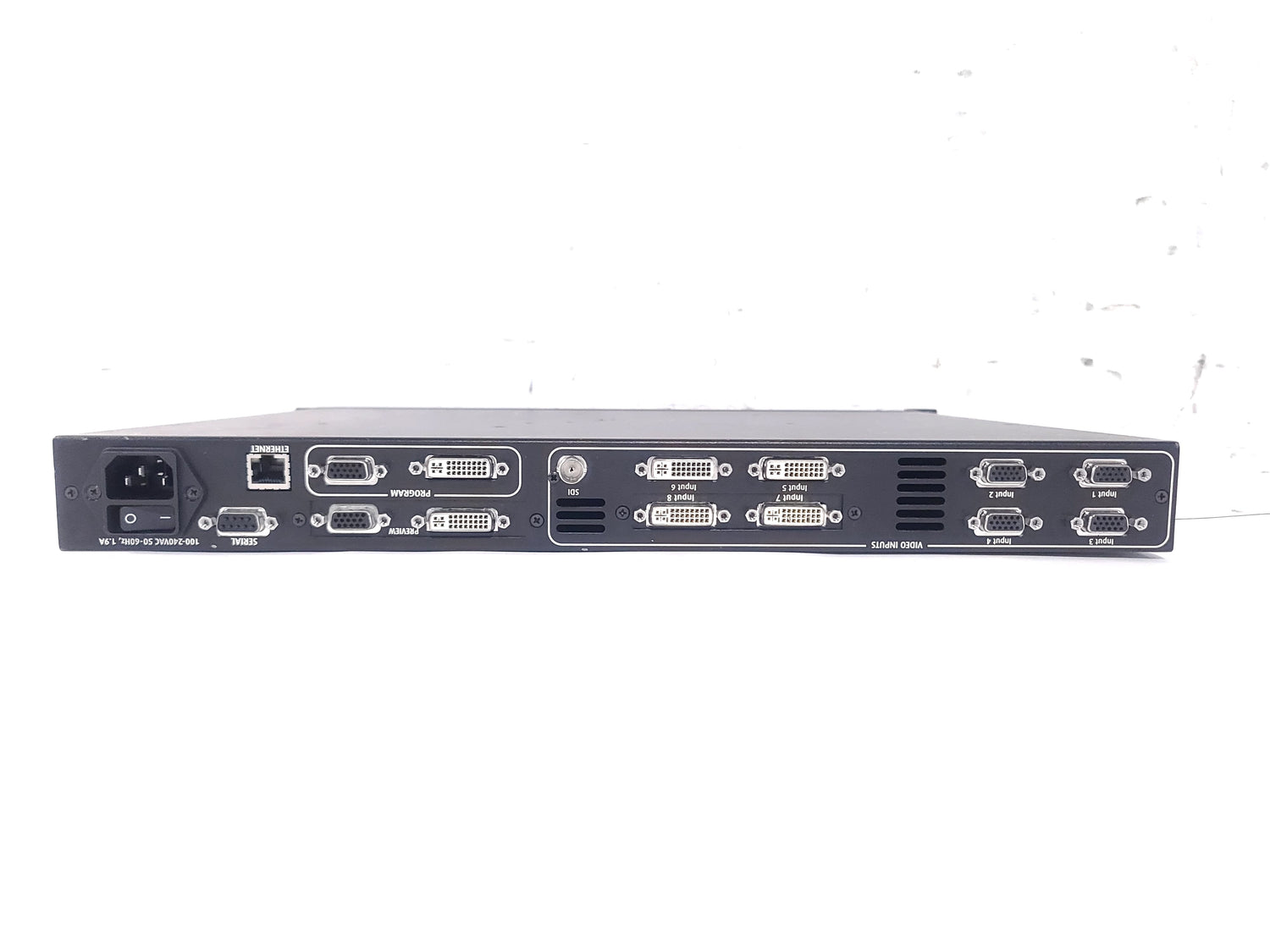

Source Connectivity
Digital Video Inputs
4 x DVI-I
Analog Video Inputs
4 x HD-15 (VGA)
SDI Interface
1 x 3G/HD/SD-SDI Input
Input Compatibility
Computer, Broadcast and Video Sources
Automatic Format Recognition
Supported
Display Outputs
Program Video Outputs
DVI-I, VGA, 3G-SDI
Preview Video Outputs
DVI-I and VGA
Maximum Display Resolution
Up to 1920 x 1200 (WUXGA)
Output Scaling
Independent per Output
Display Support
Projectors, LED Walls, Professional Monitors
Advanced Functions
Picture-in-Picture
Dual PiP Capability
Image Storage
Internal Still Memory
Transition Processing
Cut, Mix and Fade Effects
Test Signal Generator
Integrated
HDCP Support
Compliant
Control Interfaces
Network Port
RJ-45 Ethernet (10/100)
USB Connectivity
Firmware and Service Updates
Control Methods
Front Panel, Browser Interface, External Control Systems
Configuration Management
Network-Based Setup

Key Features

  • Fast source acquisition
  • Fast and seamless switching
  • Auxiliary control from Encore and ScreenPRO-II Controllers
  • High-quality scaling technology
  • 10-Bit sampling and processing
