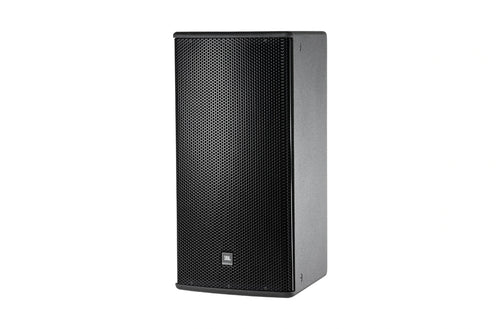

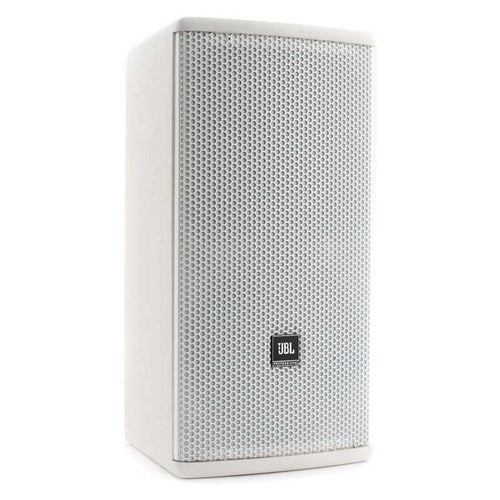

The JBL AM5212/00 is a versatile and wide-dispersion two-way loudspeaker engineered for flexible installation in a broad spectrum of commercial sound reinforcement applications. Combining a 12-inch low-frequency transducer with a 1.5-inch compression driver, this model is designed to deliver clear, balanced audio coverage across large and often acoustically challenging spaces. Its defining characteristic is a rotatable horn offering a symmetrical 100° by 100° dispersion pattern, making it exceptionally effective for applications requiring broad horizontal and vertical coverage from a single cabinet, such as in retail environments, restaurants, transportation hubs, and conference rooms. The system provides an optimal blend of output power, sonic clarity, and installation adaptability for distributed audio and primary reinforcement roles where even, room-filling sound is a priority.

The acoustically optimized, rotatable constant-directivity waveguide is central to the loudspeaker's performance, ensuring consistent frequency response throughout its wide coverage angle. This design minimizes "hot spots" and dead zones, promoting uniform sound pressure levels and tonal quality across the listening area, which is crucial for both music reproduction and speech intelligibility. The horn can be manually rotated, allowing installers to orient the pattern to best suit the room's geometry—whether mounting the cabinet vertically as a traditional loudspeaker or horizontally for a low-profile installation under a shelf or overhang. This flexibility simplifies system design and improves acoustic outcomes in a variety of fixed installation scenarios.

Built for durability, the enclosure is constructed from rugged, 18mm void-free birch plywood and finished with a textured, scratch-resistant coating suitable for demanding use. It features a sturdy, powder-coated steel grille with acoustic foam backing for driver protection and aesthetic integration. Multiple integrated rigging points offer secure options for wall mounting, ceiling suspension, or pole mounting, facilitating straightforward deployment in diverse environments. With its wide, symmetrical coverage, robust construction, and practical mounting features, the AM5212/00 serves as a reliable and effective audio solution for delivering high-quality, intelligible sound to expansive audience areas in both foreground and background music systems.
