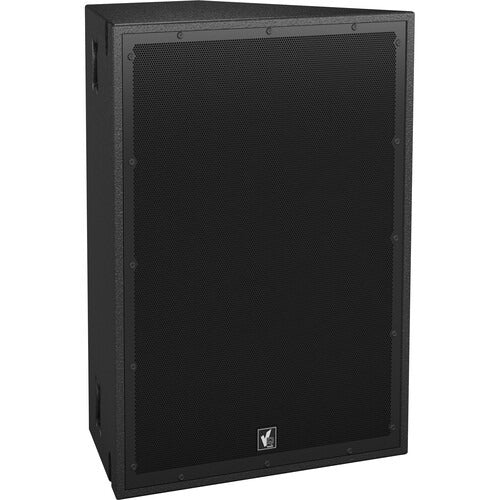

Tannoy VQ 100 3-Way Dual 12" Large Format Loudspeaker for High-Performance Installation Applications

$5,200.00

The VQ 100 is a full range, self-powered, three-way loudspeaker system designed for applications which require very high output capability with class leading pattern control. The VQ 100 is perfectly suited for use in arrays or singly in demanding applications. Unlike line array solutions, the VQ 100 can produce enough power and clarity to be used individually, or in paired clusters for wider coverage, maintaining your building’s aesthetics and sight lines.

With low frequency extension to 90 Hz, the VQ 100 can be combined with various subwoofers From the VSX series for extended bandwidth.

This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment.

View Product Features
  • 3-way full range large format loudspeaker for high-performance installation applications
  • 1,300 Watts continuous, 5,200 Watts peak power
  • Dual 12" low-frequency drivers in semi horn-loaded configuration
  • Dual Concentric 3.5" and 1.75" diaphragm compression drivers for mid and high frequency reproduction
  • Patented PSW waveguide technology provides acoustic centre alignment for coherent wavefront at horn throat
  • Phase coherent point source provides exceptional transient response and dispersion control
  • 100° conical dispersion allows installation of tightly packed point-source clusters
  • Precise time alignment eliminates interference from multiple driver sources
  • User configurable for bi-amp and tri-amp operation
  • Extremely high-efficiency design provides high SPL for modest power input
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    VQ 100_000

    Tannoy VQ 100 3-Way Dual 12" Large Format Loudspeaker for High-Performance Installation Applications

    $5,200.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Tannoy VQ 100 3-Way Dual 12" Large Format Loudspeaker for High-Performance Installation Applications

Designed for accurate sound reproduction, the Tannoy VQ 100 is a passive 3-way dual 12" loudspeaker with a dual concentric mid-high section that offers high output and optimal phase coherence for high-performance installation applications. The VQ 100's full-range output produces extremely powerful audio signals with class-leading pattern control. The 100° conical dispersion allows installations of tightly packed point-source clusters for wide coverage while maintaining the venue's aesthetics and sight lines.

The VQ 100 has a 1300W continuous (5200W peak) power handling. The dual 12" woofers are arranged in a semi-horn-loaded design, while the dual concentric 3.5" and 1.75" diaphragm compression drivers provide clear mid- and high-frequency reproduction. The maximum SPL is a massive 141 dB peak, plenty of volume to cover hundreds of patrons. The VQ 100 can be configured for use in bi-amp or tri-amp mode, in conjunction with a Lake LM26/44 digital signal processor (DSP) or Lab Gruppen PLM+ or D series platforms, with factory presets from the Lake Load Library.

Key Features

  • 3-way full range large format loudspeaker for high-performance installation applications
  • 1,300 Watts continuous, 5,200 Watts peak power
  • Dual 12" low-frequency drivers in semi horn-loaded configuration
  • Dual Concentric 3.5" and 1.75" diaphragm compression drivers for mid and high frequency reproduction
  • Patented PSW waveguide technology provides acoustic centre alignment for coherent wavefront at horn throat
  • Phase coherent point source provides exceptional transient response and dispersion control
  • 100° conical dispersion allows installation of tightly packed point-source clusters
  • Precise time alignment eliminates interference from multiple driver sources
  • User configurable for bi-amp and tri-amp operation
  • Extremely high-efficiency design provides high SPL for modest power input

Tannoy VQ 100 3-Way Dual 12" Large Format Loudspeaker for High-Performance Installation Applications Specs

System
Speaker Type
Passive Loudspeaker
Configuration
3-Way
Total Passive Power Handling
1300 W RMS / 5200 W Peak
Bi-Amp/Tri-Amp Power Handling
Low Frequency (LF) 1000 W RMS / 2000 W Peak Mid Frequency (MF) 200 W RMS / 400 W Peak High Frequency (HF) 90 W RMS / 180 W Peak
Constant Voltage / Transformer Taps
No
Nominal Impedance
LF: 4 Ohms / MF: 8 Ohms / HF: 8 Ohms
Drivers
LF Driver
2x 12" / 30.5 cm Woofer
MF Driver
1x 3.5" / 8.9 cm Horn-Loaded Compression Driver
HF Driver
1x 1.75" / 4.45 cm Horn-Loaded Compression Driver
Performance
Frequency Range/Response
90 Hz to 27 kHz (-10 dB) 115 Hz to 23 kHz (±3 dB)
Maximum SPL
135 dB (Continuous) 141 dB (Peak)
Speaker Sensitivity
111 dB
Coverage Angle
100° Conical
Signal Processing
EQ & Filters
No
Connectivity
Audio I/O
2x speakON NL4 Input 1x Barrier Strip 4-Pin Input
Physical
Color
Black
Mounting
12 x M10 Fly Point
Handles
2x Each Side 2x Top 2x Bottom
Construction Material
Perforated Metal Grille, Plywood
Environmental Resistance
No
Dimensions
36.4 x 27.3 x 20.3" / 92.5 x 69.3 x 51.6 cm
Weight
143 lb / 64.9 kg

Key Features

  • 3-way full range large format loudspeaker for high-performance installation applications
  • 1,300 Watts continuous, 5,200 Watts peak power
  • Dual 12" low-frequency drivers in semi horn-loaded configuration
  • Dual Concentric 3.5" and 1.75" diaphragm compression drivers for mid and high frequency reproduction
  • Patented PSW waveguide technology provides acoustic centre alignment for coherent wavefront at horn throat
  • Phase coherent point source provides exceptional transient response and dispersion control
  • 100° conical dispersion allows installation of tightly packed point-source clusters
  • Precise time alignment eliminates interference from multiple driver sources
  • User configurable for bi-amp and tri-amp operation
  • Extremely high-efficiency design provides high SPL for modest power input
