Tannoy

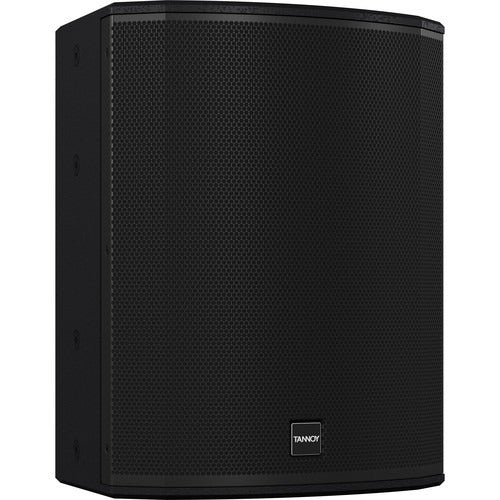

Tannoy VXP 12-UL 1,600 Watt 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated LAB GRUPPEN IDEEA Class-D Amplification

$1,749.00

The VXP 12 Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 12 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 12 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment.

View Product Features
  • Full-range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
  • 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
  • 12" Dual Concentric full range driver for point source phase coherence
  • Tightly controlled 90º dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Switchable full-range or high-pass filter operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi-matte black paint
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    VXP 12-UL

    Tannoy VXP 12-UL 1,600 Watt 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated LAB GRUPPEN IDEEA Class-D Amplification

    $1,749.00
    View Product
  • New

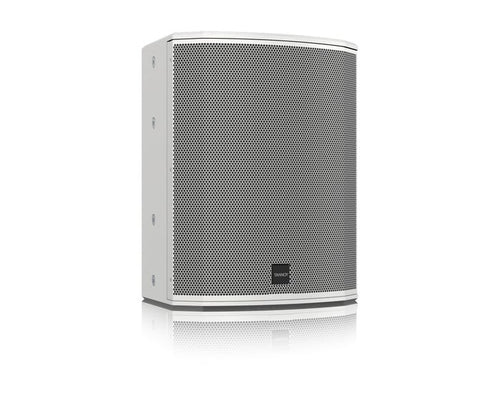

    VXP 12-WH-UL

    Tannoy VXP 12-WH-UL 1,600 Watt 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated LAB GRUPPEN IDEEA Class-D Amplification (White)

    $1,749.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Tannoy VXP 12-UL 1,600 Watt 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated LAB GRUPPEN IDEEA Class-D Amplification

VXP Series combines the class-leading performance of the passive VX Series with Lab.gruppen’s new Integrated IntelliDrive Energy Efficient Amplifier module, bringing ultra reliabl and perfectly matched power to the equation for audible superiority in a self-powered box.

Conceived, engineered and built with precision in the United Kingdom, VXP Series represents a brand new evolution in Tannoy’s core philosophies in self-powered loudspeaker design. Tannoy VXP 12 combines the technological refinement of the passive VX 12 with the brand new IDEEA™ integrated power module from Lab.gruppen. The result is a compact, ultra-reliable and efficient, self-powered loudspeaker offering a punchy and sonically superior solution for small-medium scale sound reinforcement and high performance speech reproduction where clarity and vocal character are paramount. The VXP 12 has also been acoustically matched with the wider range of VXP Series models, making it a perfectly capable component within much larger installations.

Key Features

  • Full-range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
  • 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
  • 12" Dual Concentric full range driver for point source phase coherence
  • Tightly controlled 90º dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Switchable full-range or high-pass filter operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi-matte black paint

Tannoy VXP 12-UL 1,600 Watt 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated LAB GRUPPEN IDEEA Class-D Amplification Specs

System
Frequency response
70 Hz - 25 kHz ±3 dB 58 Hz - 30 kHz -10 dB
Nominal dispersion
75° conical @ -6 dB points
Directivity factor (Q)
9.7
Directivity index (DI)
9.9
Power handling (IEC)
Passive
400 W continuous, 1,600 W peak
Bi-amp
LF: 400 W continuous, 1,600 W peak HF: 80 W continuous, 320 W peak
Sensitivity
99 dB (1 W @ 1 m)
Maximum SPL
Passive
125 dB continuous, 131 dB peak
Bi-amp
LF: 126 dB continuous, 132 dB peak HF: 125 dB continuous, 131 dB peak
Impedance
Passive
8 Ω
Bi-amp
8 Ω / 8 Ω
Crossover Type
Passive / Bi-amp switchable
Components
1 x 15" (380 mm) constant directivity PowerDual
Enclosure
Connectors
2 x Industry-standard 4-pole twist-lock speaker connectors 1 x barrier strip terminals
Wiring
Passive
Pins 1+ / 1- Input, Pins 2+ / 2- Link
Bi-Amp
Pins 1+ / 1- LF, Pins 2+ / 2- HF
Dimensions H x W x D
591 x 451 x 421 mm (23.3 x 17.8 x 16.6")
Net weight
25.5 kg (56.2 lbs)
Construction
18 mm (3/4") enclosure / 18 mm (3/4") front, plywood, vented and internally braced
Finish
Semi matte black paint (white optional)
Grille
Powder coated perforated steel
Flying hardware
M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry standard brackets M6 x 4 inserts

Key Features

  • Full-range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
  • 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
  • 12" Dual Concentric full range driver for point source phase coherence
  • Tightly controlled 90º dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Switchable full-range or high-pass filter operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi-matte black paint
