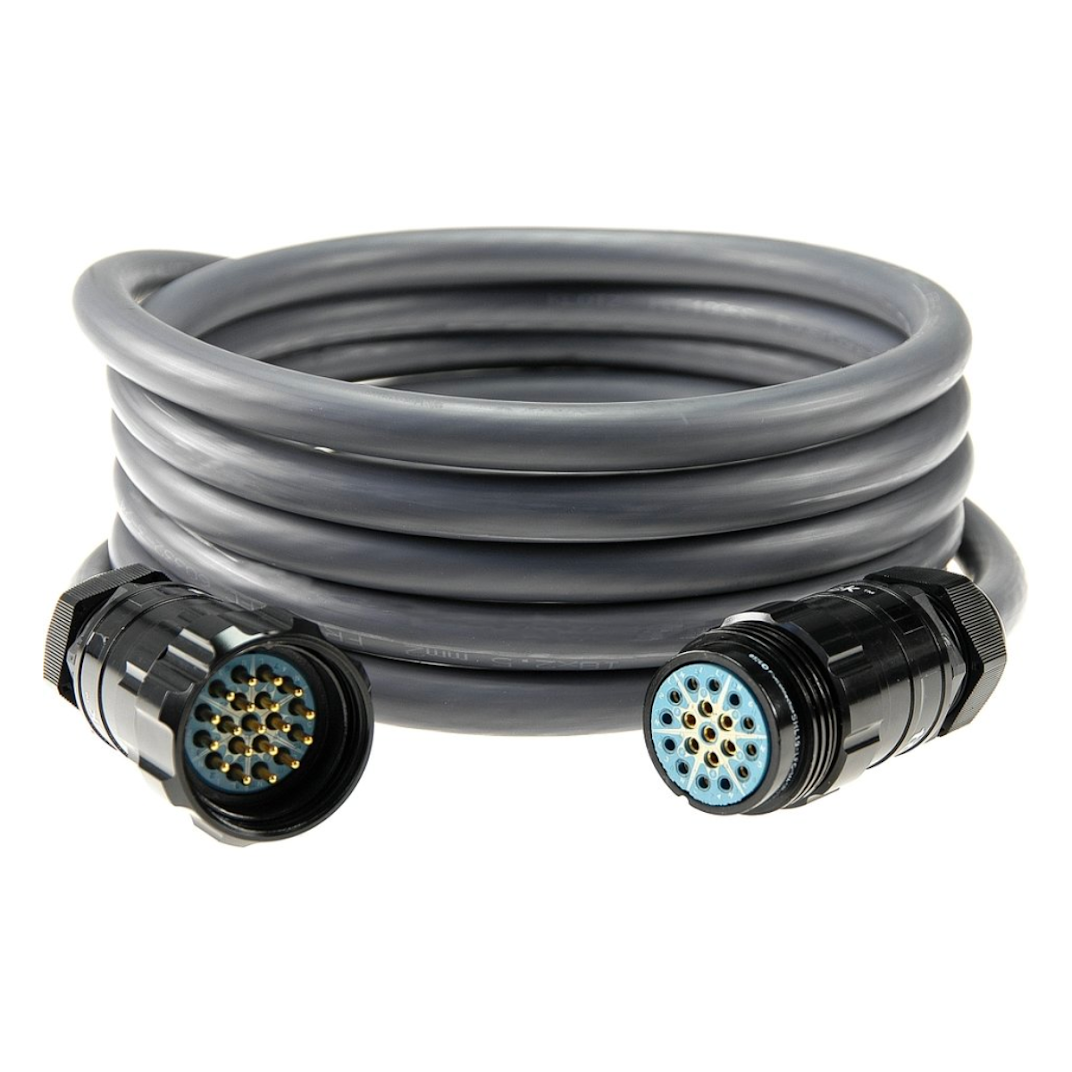

100' - 12 AWG 600V Heavy Duty 19-Pin Socapex M-F Cable

$499.00

This 100-foot (approx. 30-meter) 12 AWG 600V heavy-duty 19-pin Socapex Male-to-Female extension cable is an essential component for professional power distribution in large-scale stage lighting, live events, and studio applications. It provides a robust and efficient solution for delivering power to multiple fixtures with a single run of cable, minimizing clutter and simplifying setup and teardown procedures. The cable features 14 individual 12 American Wire Gauge (AWG) conductors (six live, six neutral, and two dedicated ground conductors) encased in a thick, protective outer jacket. This construction ensures excellent current handling capability, supporting up to 20 amps per circuit at typical ambient temperatures, with a total voltage rating of 600 VAC, suitable for most high-power requirements.

The cable assembly utilizes industry-standard 19-pin connectors (compatible with brands like Amphenol Socapex, Phase 3, and Veam VSC), which are precision-machined from aluminum alloy for enhanced durability. Safety is a paramount design feature, with elements such as "first make/last break" grounding contacts to protect users during connection and disconnection, and a touch-proof design when unmated. The flexible, stranded copper core, combined with a thick, oil and abrasion-resistant polyvinyl chloride (PVC) outer jacket, allows for easy coiling and handling while providing superior protection against physical damage and environmental factors. UL listing and compliance with various international safety standards further ensure reliable and safe operation in high-risk environments.

View Product Features

Robust construction: Machined aluminum housing with a hard black anodized finish.
High current capacity: Supports up to 20 amps at 30°C ambient temperature.
Enhanced safety: Features "first make, last break" grounding contacts.
Durable jacket: Polyvinyl chloride material resists wear, oils, and abrasions.
Industry standard connectors: Compatible with a wide range of power distribution systems.
Superior conductivity: Utilizes silver-plated brass contacts for optimal power transfer.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the 100' - 12 AWG 600V Heavy Duty 19-Pin Socapex M-F Cable

This 100-foot cable is a heavy-duty, multi-circuit assembly designed for professional stage lighting and power distribution in theatrical, concert, and event production environments. It terminates on each end with a 19-pin Socapex connector—one male and one female—creating a robust link for carrying multiple independent electrical circuits over a single, rugged cable. The use of 12 AWG (American Wire Gauge) conductors denotes a thick, high-current capacity wire suitable for distributing substantial power to lighting fixtures, motorized effects, or other equipment over long distances with minimal voltage drop. The 600V rating indicates its suitability for standard high-voltage stage lighting systems, ensuring safe operation within typical dimmer rack and distribution panel parameters.

The cable is constructed with a durable, flexible outer jacket, often made of neoprene or another tough, abrasion-resistant material, to withstand the physical demands of being dragged across floors, coiled, and subjected to the rigorous conditions of touring. Each internal conductor is individually color-coded and corresponds to a specific pin in the Socapex connector, maintaining a consistent pin-to-pin mapping essential for safe and predictable power distribution. The molded or machined connectors provide a secure, locking connection that prevents accidental disconnection, a critical safety feature in live event environments. This type of cable is a fundamental component for connecting a dimmer rack or company switch to multi-circuit break-out boxes located near lighting trusses or set pieces.

This heavy-duty Socapex cable enables efficient and organized power management for large-scale productions. By consolidating multiple circuits into one manageable cable, it significantly reduces clutter, setup time, and trip hazards compared to running numerous individual single-circuit cables. It is an indispensable tool for theatrical electricians and lighting technicians, providing a reliable, high-capacity backbone for the electrical infrastructure of any professional production.

Key Features

Robust construction: Machined aluminum housing with a hard black anodized finish.
High current capacity: Supports up to 20 amps at 30°C ambient temperature.
Enhanced safety: Features "first make, last break" grounding contacts.
Durable jacket: Polyvinyl chloride material resists wear, oils, and abrasions.
Industry standard connectors: Compatible with a wide range of power distribution systems.
Superior conductivity: Utilizes silver-plated brass contacts for optimal power transfer.
