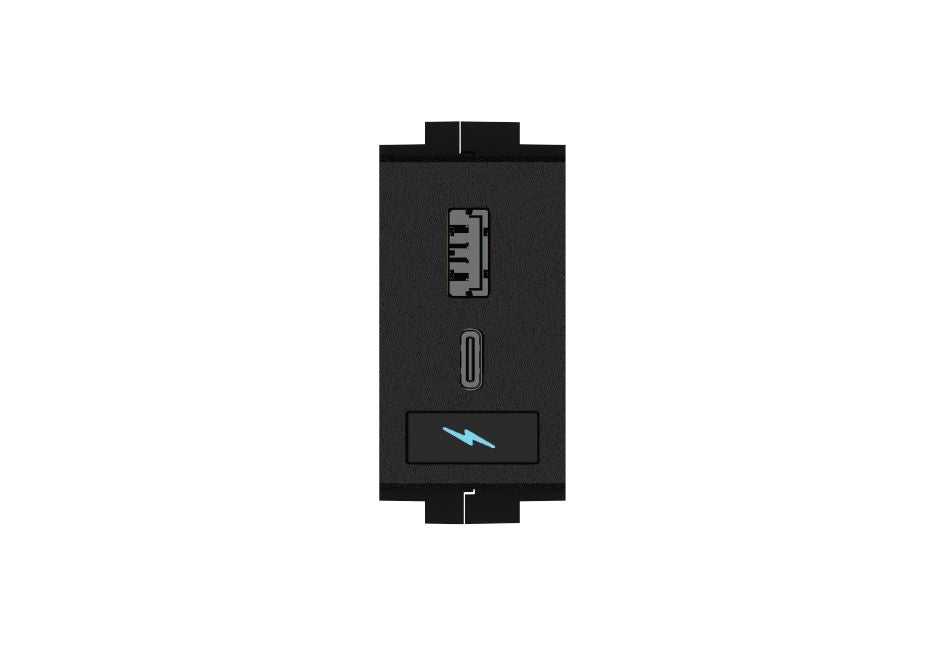

The USB Rapid Charging Module (FT2A-CHGR-USBA/C) is a single-space module designed for installation in a Crestron® FT2 ELEC Series FlipTop™. It provides one USB Type-C™ charging port and one USB Type-A charging port, which may be used simultaneously to quickly charge two mobile phones, laptops, or tablet devices at the table. The module is labeled with a backlit icon depicting the international symbol for a high-powered USB charging port.

The USB-C™ port supports rapid charging of a single device at up to 32.5 Watts. Variable rate charging at up to 20 Volts enables the USB-C device to negotiate the optimal voltage it requires based on its charging capabilities and current battery condition.

The USB-A port supports charging of a single device at up to 12 Watts at 5 Volts. When both ports are used simultaneously, USB-A charging is limited to 2.5 Watts (500 mA).

A maximum of two FT2A-CHGR-USBA/C modules may be installed in a single FT2-700-ELEC series FlipTop. When two modules are installed, each module must be positioned in a different module row and the FlipTop must be equipped with a second power supply (model FT2A-UTK-PWS, sold separately).

Note: The FT2A-CHGR-USBA/C is only compatible with FT2 ELEC series “Electrical” FlipTops™. It is not compatible with FT2 MECH series “Mechanical” FlipTops. The FT2A-CHGR-USBA/C is for powering and charging USB devices and does not pass USB data through to any other device.
