EAW

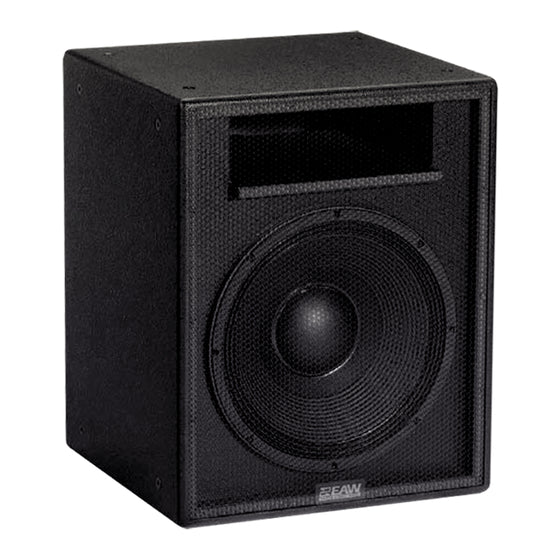

EAW SB150R Compact Subwoofer

$0.00

A dedicated subwoofer system with a 15 in transducer in a vented rectangular enclosure. Available in a portable version ('R' with handles and NL4 connectors) or a permanent installation version ('P' with barrier strip input and mounting/suspension points). ixR version contains an internal passive network for cross over to a JF80.
The SB150 provides high output sub bass response in a compact enclosure. Tuned enclosure venting extends LF response and minimizes driver strain. MX Series processors extend LF response and safeguard against cone excursion damage. Six year warranty.

View Product Features

  • Portable version
  • Compact subwoofer system
  • 15 in woofer, optimally vented
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the EAW SB150R Compact Subwoofer

The EAW SB150R is a compact, high-performance passive subwoofer designed to extend the low-frequency response of full-range sound systems in space-conscious applications. This subwoofer employs a single, long-excursion 15-inch driver housed within a carefully engineered bass-reflex enclosure to deliver powerful and articulate bass output from a relatively small footprint. Its design prioritizes both sonic impact and practical deployment, making it an ideal choice for reinforcing the low end in mobile DJ setups, small to medium live music venues, corporate AV, and fixed installations where floor space is at a premium. The "R" designation may indicate a model with specific impedance or a version designed for particular regional specifications, but its core function remains to provide a solid, scalable low-frequency foundation.

The enclosure is constructed from durable plywood and finished with a rugged textured coating, built to withstand the physical demands of transport and use. Its compact dimensions and integrated handles facilitate easy transportation and flexible placement, whether used as a standalone unit, in stacked pairs for increased output, or integrated with compatible top cabinets via pole-mount sockets. As a passive subwoofer, the SB150R requires connection to an external power amplifier and active crossover or system processor. This allows sound engineers to precisely tailor the subwoofer's frequency response, apply protective limiting, and seamlessly blend it with the main loudspeakers to create a cohesive full-range system.

For sound providers and installers needing powerful bass reinforcement without the bulk of larger subwoofers, the EAW SB150R offers an efficient and reliable solution. Its combination of a robust 15-inch driver, tuned port design, and sturdy construction enables it to produce deep, punchy low frequencies that enhance music, film soundtracks, and live performances. When properly powered and processed, this compact subwoofer delivers a significant performance boost, ensuring that audio systems have the necessary low-end weight and definition for a complete and engaging listener experience.

Key Features

  • Portable version
  • Compact subwoofer system
  • 15 in woofer, optimally vented

EAW SB150R Compact Subwoofer Specs

Driver Configuration
Woofer Size
15 inches
Woofer Quantity
1
Enclosure Type
Bass Reflex (Ported)
Electrical Specifications
Impedance
8 ohms
Power Handling (Continuous)
400 W
Power Handling (Peak)
1600 W
Sensitivity
96 dB
Performance Data
Frequency Response
45 Hz - 150 Hz (-10 dB)
Maximum SPL
128 dB Peak
Physical Design
Enclosure Material
Plywood
Dimensions (H x W x D)
22.0 x 22.0 x 22.0 inches
Weight
75 lbs
Deployment & Integration
Pole Socket
Yes (for Full-Range Tops)
Amplification
External Required
Processing
External Crossover/DSP Required

Key Features

  • Portable version
  • Compact subwoofer system
  • 15 in woofer, optimally vented
