Lab.Gruppen

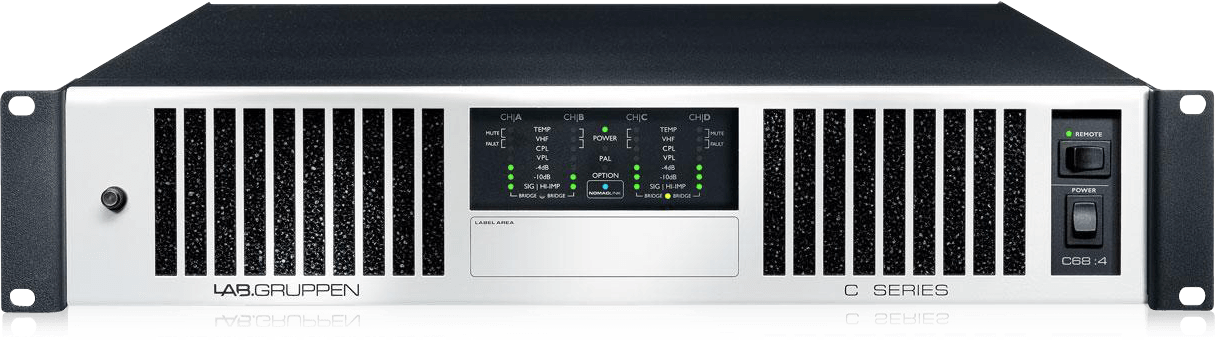

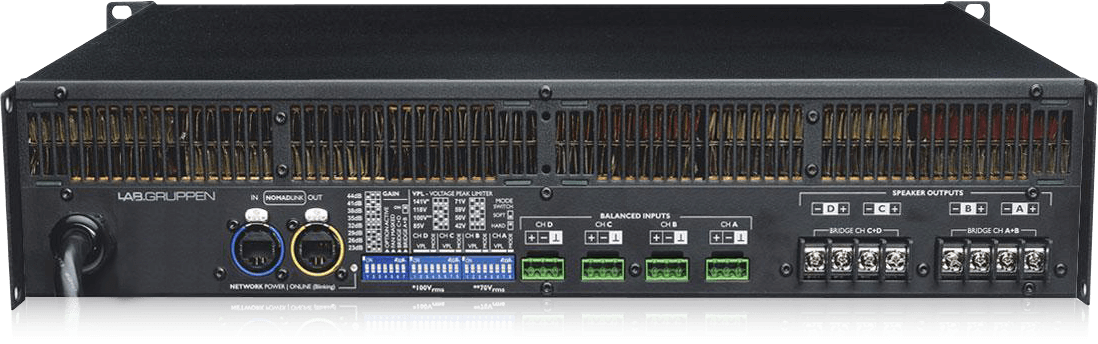

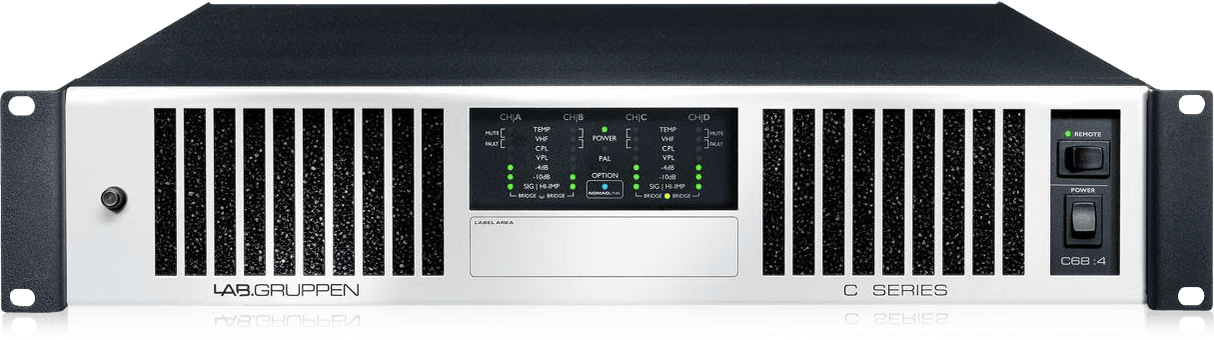

Lab.Gruppen C 68:4 6,800W 4-Channel Amplifier w/ NomadLink Network Monitoring and Dedicated Control for Install Applications

$0.00

The C 68:4 Delivers 4 × 1700 W at 4 OHMS, Making This Amplifier Powerful Enough for the Vast Majority of Demanding Installed Sound Applications.

The C 68:4 delivers 4 × 1700 W at 4 ohms, making this amplifier powerful enough for the vast majority of demanding installed sound applications. Packaged in a compact 2U chassis, the C 68:4 sets a new standard for high power in an installation-dedicated amplifier.

C Series amplifiers are uniquely capable of adapting to a wide variety of demanding load conditions. Each channel has an individually configurable Voltage Peak Limiter (VPL™), which allows the output to be optimized for any loudspeaker load – whether one massive subwoofer or a series of small 100/70 V loudspeakers. VPL works in combination with adjustable input gain to achieve maximum headroom regardless of input levels or output impedances.

Every C Series is ready for the NomadLink® network right out of the box. With NomadLink, key amplifier parameters are displayed via DeviceControl software, and remote control of channel mutes and power on/off is managed efficiently under network control.

View Product Features

  • 6,800 Watt, 4-channel amplifier with up to 1,700 Watts output per channel and NomadLink network for monitoring and control
  • Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
  • 4 x 1,200 Watts into 2 Ohms, 4 x 1,700 Watts into 4 Ohms, 4 x 1,200 Watts into 8 Ohms, 4 x
  • 625 Watts into 16 Ohms, 4 x 1,600 Watts into Hi-Z 70 V, 4 x 1,200 Watts into Hi-Z 100 V
  • Proven and reliable Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency
  • Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Lab.Gruppen C 68:4 6,800W 4-Channel Amplifier w/ NomadLink Network Monitoring and Dedicated Control for Install Applications

The C 68:4 is a high-density, four-channel networked amplifier engineered to provide robust, intelligent power for medium to large-scale fixed installation sound systems, including corporate auditoriums, transportation hubs, large houses of worship, and sophisticated multi-zone commercial projects. Delivering a substantial total power output of 6,800 watts through an efficient Class D architecture, this amplifier balances formidable performance with the operational intelligence required for modern, centrally managed audio networks. Its integrated NomadLink networking capability is a critical feature, allowing the unit to be seamlessly incorporated into a dedicated control and monitoring ecosystem. Through this system, integrators can remotely configure settings, monitor real-time performance metrics such as output level and thermal status, and receive proactive alerts for each channel, thereby enabling predictive maintenance and simplifying the management of complex, distributed audio systems from a single workstation.

Built for unwavering reliability in continuous operation, the amplifier incorporates a comprehensive suite of protection mechanisms designed to safeguard both the unit itself and the valuable loudspeakers it drives. These include advanced load monitoring, thermal management with adaptive cooling, and protection against DC offset, short circuits, and overload conditions. The unit supports flexible signal routing and accepts inputs via traditional balanced analog connections as well as through its digital network interface, offering integrators significant design versatility. Dedicated installation features, such as configurable GPIO ports for remote triggering and system muting, make it particularly suited for integrated environments where the amplifier must interact with broader building automation or security systems.

Sonically, the C 68:4 is designed for accuracy and control, providing clean, transparent amplification that faithfully reproduces the source material across all four channels. Its substantial power reserve ensures ample headroom for dynamic audio content, contributing to a system that sounds articulate and powerful without distortion or compression. The combination of high-fidelity amplification, networked control, and installation-focused practicality positions this amplifier as a core component for professional integrators. It delivers not only the necessary electrical power but also the critical diagnostic and control intelligence that defines modern, reliable, and scalable installed audio infrastructure.

Key Features

  • 6,800 Watt, 4-channel amplifier with up to 1,700 Watts output per channel and NomadLink network for monitoring and control
  • Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
  • 4 x 1,200 Watts into 2 Ohms, 4 x 1,700 Watts into 4 Ohms, 4 x 1,200 Watts into 8 Ohms, 4 x
  • 625 Watts into 16 Ohms, 4 x 1,600 Watts into Hi-Z 70 V, 4 x 1,200 Watts into Hi-Z 100 V
  • Proven and reliable Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency
  • Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times

Lab.Gruppen C 68:4 6,800W 4-Channel Amplifier w/ NomadLink Network Monitoring and Dedicated Control for Install Applications Specs

Power Output Specifications
Total System Power
6,800 Watts
Channels
4
Power per Channel (4Ω)
4 x 1700W
Network Intelligence
Monitoring Platform
NomadLink
Remote Diagnostics
Real-Time Channel Monitoring
Control Interface
Ethernet RJ-45
Signal Integration
Primary Inputs
Balanced XLR Analog
Network Audio
Digital via NomadLink
Signal Routing
Fully Flexible Matrix
Output & Protection
Minimum Load Impedance
2Ω per Channel
Protection Circuits
Thermal, Short-Circuit, DC, Overload
Output Connectors
Euroblock Terminals
Installation & Physical Design
Rack Height
3U
Cooling Method
Intelligent Variable-Speed Fans
Mains Voltage
100-240V AC, Auto-Sensing

Key Features

  • 6,800 Watt, 4-channel amplifier with up to 1,700 Watts output per channel and NomadLink network for monitoring and control
  • Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
  • 4 x 1,200 Watts into 2 Ohms, 4 x 1,700 Watts into 4 Ohms, 4 x 1,200 Watts into 8 Ohms, 4 x
  • 625 Watts into 16 Ohms, 4 x 1,600 Watts into Hi-Z 70 V, 4 x 1,200 Watts into Hi-Z 100 V
  • Proven and reliable Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency
  • Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times
