Martin Audio

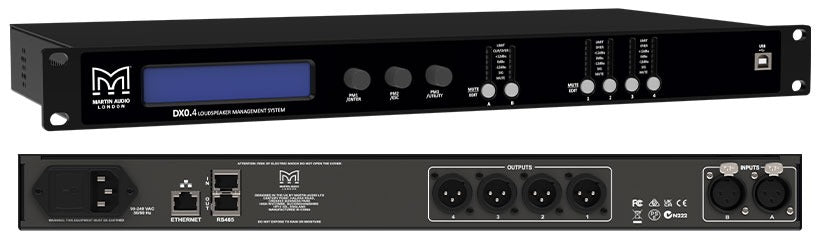

Martin Audio DX0.4 2 in, 4 out network system controller

$950.00

The DX0.4 is the ideal processing tool to partner the ADORN, CDD and BlacklineX ranges or indeed any system where comprehensive system control and protection is required, perhaps where there may be budget constraints.

The DX0.4 offers a substantial array of processing options. Routing is freely assignable from the 2 inputs to the 4 outputs. Input and output equalization is available with a choice of 14 filter options. An input noise gate will help deal with noisy signal sources. Input and output delay is available to time align components in a system. Crossover filters with slopes from -6dB/octave up to -48dB/octave are available in the three most popular filter types, and a two-stage limiter; program and peak, will protect your speakers from damage due to excessive power.

View Product Features

Professional 2-input, 4 output system processor for a wide range of system applications.
Comprehensive, sophisticated processing options including EQ, gate, delay and limiting to optimize and protect a system.
Fully assignable matrix routing of both inputs to any output with attenuation option on each routing node.
Two balanced XLR inputs with up to 12dB of gain, polarity invert, 600ms of delay, 10 band parametric EQ with a choice of 14 filter types individually selectable for each band.
Four balanced XLR outputs with 12dB of gain, polarity invert, 200ms delay, high and low pass filters with cut-off slopes from -6dB/oct to -48dB/oct using either Bessel, Butterworth or Linkwitz Riley filters. 8 band parametric EQ with up a choice of 14 filter types, Independent Program and Peak Limiters
Convenient front panel controls and LCD display with an intuitive menu system for programming or modifying settings. One press mute buttons for all inputs and outputs.
Front panel USB port for quick and easy PC connection.
Networking option using either Ethernet or RS485 for larger systems.
Output channel preset import function to quickly and easily compile a system to suit any application utilizing a library of Martin Audio product channel presets.
Six segment LED metering for input and output levels and limiter operation.
32 User Presets to store system configurations.
3-level customizable user modes with individual password protection.
Universal switch mode mains PSU accepts 90 to 240V, 50/60Hz.

In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

New

TMP-DX0.4

Martin Audio DX0.4 2 in, 4 out network system controller

$950.00

View Product

Already own this item and want to sell it?

Click here to sell your item

About the Martin Audio DX0.4 2 in, 4 out network system controller

Key Features

Professional 2-input, 4 output system processor for a wide range of system applications.
Comprehensive, sophisticated processing options including EQ, gate, delay and limiting to optimize and protect a system.
Fully assignable matrix routing of both inputs to any output with attenuation option on each routing node.
Two balanced XLR inputs with up to 12dB of gain, polarity invert, 600ms of delay, 10 band parametric EQ with a choice of 14 filter types individually selectable for each band.
Four balanced XLR outputs with 12dB of gain, polarity invert, 200ms delay, high and low pass filters with cut-off slopes from -6dB/oct to -48dB/oct using either Bessel, Butterworth or Linkwitz Riley filters. 8 band parametric EQ with up a choice of 14 filter types, Independent Program and Peak Limiters
Convenient front panel controls and LCD display with an intuitive menu system for programming or modifying settings. One press mute buttons for all inputs and outputs.
Front panel USB port for quick and easy PC connection.
Networking option using either Ethernet or RS485 for larger systems.
Output channel preset import function to quickly and easily compile a system to suit any application utilizing a library of Martin Audio product channel presets.
Six segment LED metering for input and output levels and limiter operation.
32 User Presets to store system configurations.
3-level customizable user modes with individual password protection.
Universal switch mode mains PSU accepts 90 to 240V, 50/60Hz.
