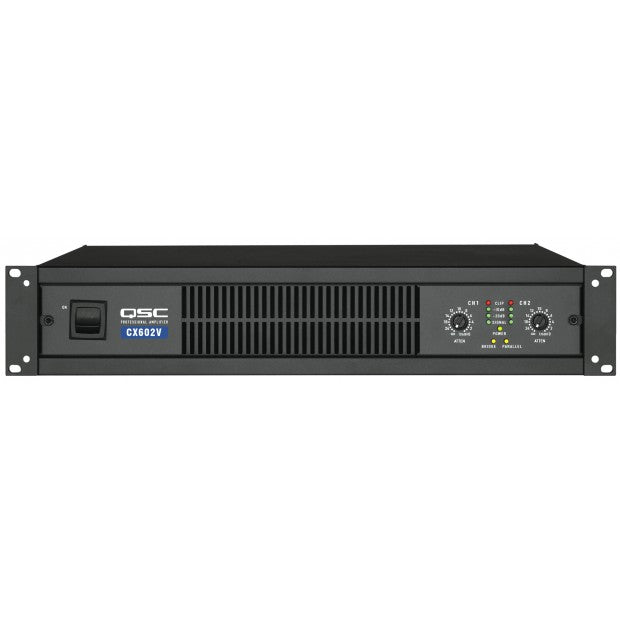

The 2 RU QSC CX-602V 2-Channel Power Amplifier is designed for 70V commercial applications such as restaurants, retail outlets, performance halls, houses of worship, sports clubs, gymnasiums, pubs, and more. The amplifier uses powerful PowerLight switch-mode power supply technology for high-performance and compact size. The HD15 DataPort connector allows for Q-SYS networked control and monitoring.

The output section features a Class-AB+B architecture with bipolar circuitry. The amplifier offers full protection from DC, infrasonic & ultrasonic, thermal overload, and short circuits. Automatic current limiting protects the amplifier from damage until the short is corrected. The DC protection systems prevent loudspeaker damage in the unlikely event of an output transistor failure. DC voltage from the power supply is never passed directly to your speakers, even in case of an output circuit breakdown.

The rear panel provides detachable Euro-style input connectors and a six-position barrier strip with dual-channel and bridged mono connections. There are DIP switch controls for clip limiters, bridged mono, and parallel operation, as well as selectable high-pass filters which offer 50 and 75 Hz settings and protect against speaker transformer saturation with minimal effect on program material.

The unit can directly drive 70V distributed loudspeakers in mono or stereo modes. Comprehensive front-panel indicators offer user feedback for signal, clip, bridged mono, and parallel input LEDs. The QSC CX602V ships with a power cord and a security plate.
