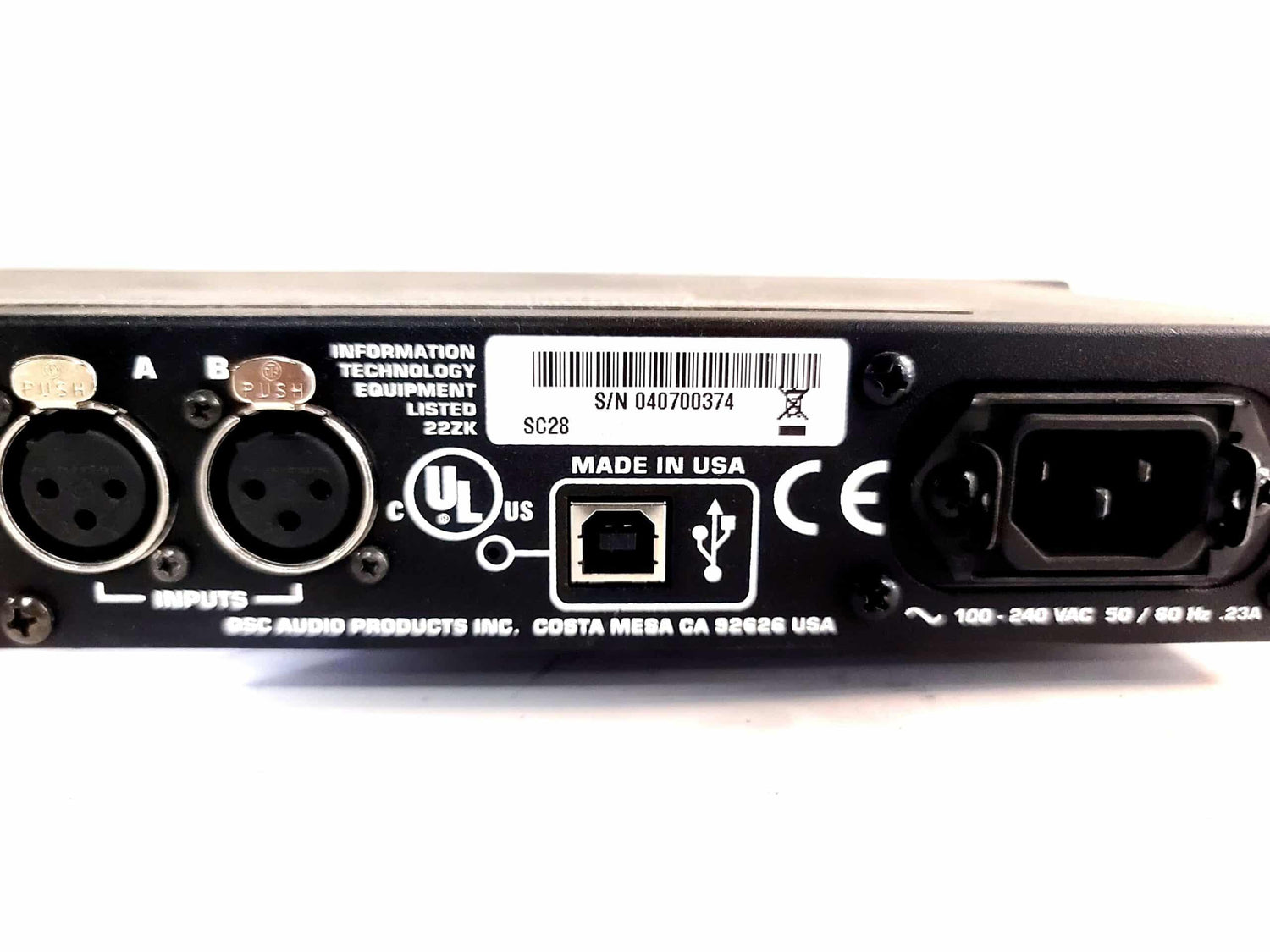

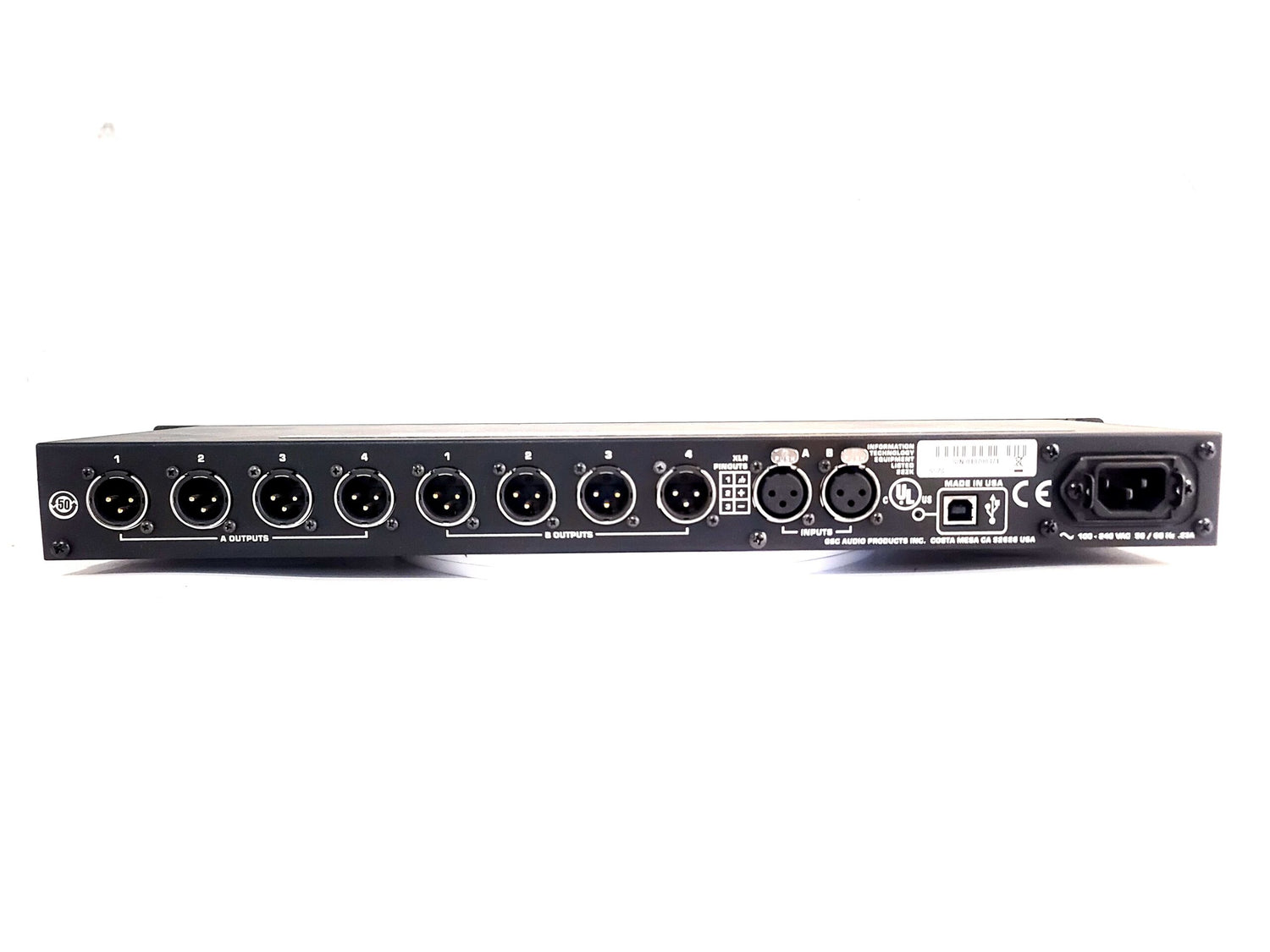

Audio inputs and outputs are via balanced, line-level, analog XLR connectors. Four outputs for each of the two inputs are provided for use with 2 or 3-way systems plus subwoofers. Simple to operate yet uncompromised in audio quality, the SC28 uses 48 kHz, 24-bit A/D and D/A conversion with 32-bit, floating point DSP for wide dynamic range and low distortion. Advanced DSP is capable of implementing tunings that incorporate IIR (Infinite Impulse Response) as well as FIR (Finite Impulse Response) filters.

QSC system engineers have employed the power of the SC28's FIR (finite impulse response) filters to implement "Intrinsic Correction™" of the loudspeaker. The goal of Intrinsic Correction™ is to provide a drive signal to the amplifiers and loudspeakers that will result in the most accurate acoustical magnitude, frequency and phase domain performance possible. When properly implemented, Intrinsic Correction™can compensate for many causal phenomena such as the effects of waveguide acoustical impedance and loudspeaker cone resonance. The result is a loudspeaker system with excellent power response and extremely natural, uncolored sound across its frequency band and coverage area. An array of loudspeakers with Intrinsic Correction™ tunings will also be very responsive to the use of equalization to compensate for array configuration, acoustical conditions or user preferences.
