RME

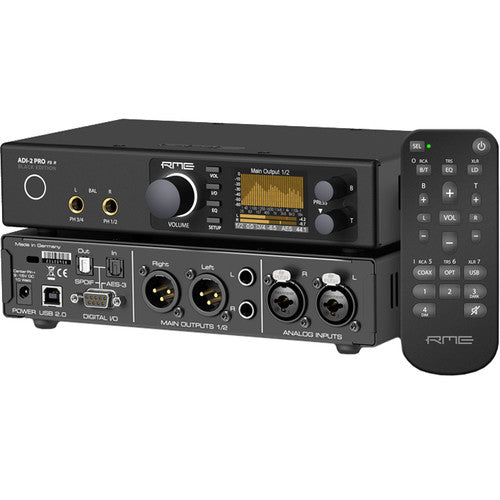

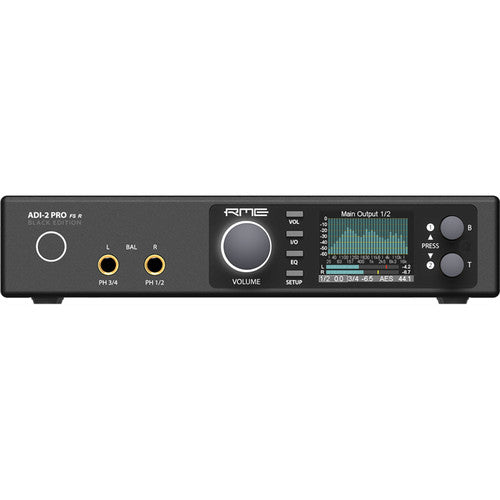

RME ADI-2 Pro FSR BE Reference AD/DA Converter with Extreme Power Headphone Amplifiers and Remote (Black Edition)
$1,999.00
Unit price
/
Styled in a black finish, the RME ADI-2 Pro FSR BE is a versatile reference-class AD/DA converter that can be used as a USB audio interface, a USB DAC with Extreme Power headphone amplifiers, or as a format converter with digital monitoring. Housed in a compact, half-rack enclosure, it delivers pristine 32-bit / 768 kHz audio quality to audio engineers and audiophiles alike, for studio, home, and mobile applications, ranging from analog/digital recording, PCM/DSD recording and playback, precise audio measurements, or use as a high-fidelity front-end and headphone amp for iPhone/iPad or other mobile devices.

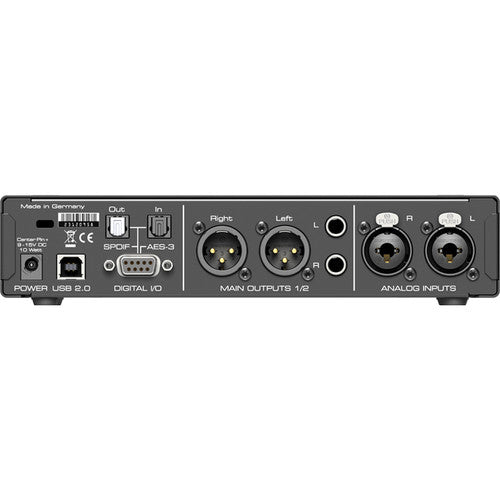

The ADI-2 Pro FSR BE is equipped with six input sources and eight output paths for simultaneous 2-channel analog-to-digital input conversion and 4-channel digital-to-analog output conversion. The I/O options include two servo-balanced analog line inputs, two separate balanced and unbalanced analog outputs, one optical S/PDIF I/O, which also supports two channels of ADAT operation and via the included digital breakout cable, one coaxial S/PDIF I/O and one AES/EBU I/O.
View Product Features
View Product Features
Out of Stock
0 in stock
Once stock replenishes, inventory will display below.
In-Stock Inventory
No products currently in stock
About the RME ADI-2 Pro FSR BE Reference AD/DA Converter with Extreme Power Headphone Amplifiers and Remote (Black Edition)
Key Features
RME ADI-2 Pro FSR BE Reference AD/DA Converter with Extreme Power Headphone Amplifiers and Remote (Black Edition) Specs
Analog Inputs
XLR
Input
XLR, servo-balanced
Input impedance balanced
18 kOhm, unbalanced: 9 kOhm
Input sensitivity switchable
+24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Digital Trim Gain range
0 dB up to +6 dB
Signal to Noise ratio (SNR) @ +13/19/24 dBu
120 dB RMS unweighted, 124 dBA
Signal to Noise ratio (SNR) @ +4 dBu
119 dB RMS unweighted, 123 dBA
Frequency response @ 44.1 kHz, -0.1 dB
5 Hz – 20.5 kHz
Frequency response @ 96 kHz, -0.5 dB
3 Hz – 45.5 kHz
Frequency response @ 192 kHz, -1 dB
2 Hz – 92.7 kHz
Frequency response @ 384 kHz, -1 dB
< 1 Hz – 124 kHz
Frequency response @ 768 kHz, -3 dB
< 1 Hz – 180 kHz
THD @ -1 dBFS
-116 dB, 0.00016 %
THD @ -10 dBFS
-125 dB, 0.000056 %
Channel separation
> 110 dB
TRS
As input XLR, but:
Input
6.3 mm TRS jack, servo-balanced, fully compatible to TS and RCA
Analog Outputs
1/2 XLR
Output level switchable
+24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Signal to Noise ratio (SNR) @ +13/19/24 dBu
120 dB RMS unweighted, 124 dBA
Signal to Noise ratio (SNR) @ +4 dBu
117 dB RMS unweighted, 120 dBA
Frequency response @ 44.1 kHz, -0.1 dB
0 Hz – 20.2 kHz
Frequency response @ 96 kHz, -0.5 dB
0 Hz – 44.9 kHz
Frequency response @ 192 kHz, -1 dB
0 Hz – 88 kHz
Frequency response @ 384 kHz, -1 dB
0 Hz – 115 kHz
Frequency response @ 768 kHz, -3 dB
0 Hz – 109 kHz
THD @ 0 dBFS
< -120 dB, 0.0001 %
THD+N @ 0 dBFS
-115 dB, 0.00018 %
Channel separation
> 110 dB
Output impedance
200 Ohm
1/2 TRS (rear)
As output XLR, but:
Output
6.3 mm TRS jack, impedance balanced
Maximum output level
+19 dBu
Signal to Noise ratio (SNR) @ +19 dBu
120 dB RMS unweighted, 123 dBA
Signal to Noise ratio (SNR) @ +13 dBu
118 dB RMS unweighted, 121 dBA
Signal to Noise ratio (SNR) @ +4 dBu
115 dB RMS unweighted, 118 dBA
Output impedance
100 Ohm unbalanced, 200 Ohm balanced
Phones 1/2
As Output 1/2 TS, but:
Output
6.3 mm TRS jack, unbalanced, stereo
Output impedance
0.1 Ohm
Signal to Noise ratio (SNR) @ +22 dBu
120 dB RMS unweighted, 123 dBA
Signal to Noise ratio (SNR) @ +7 dBu
118 dB RMS unweighted, 121 dBA
Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up
+22 dBu (10 V)
Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up
+7 dBu (1.73 V)
THD @ +18 dBu, 32 Ohm load, 1.2 Watt
-110 dB, 0.0003 %
THD+N @ + 18 dBu, 32 Ohm load
-107 dB, 0.00045 %
THD @ +14 dBu, 16 Ohm load, 0.94 Watt
-110 dB, 0.0003 %
Max power @ 0.001% THD
1.5 W per channel
Output Phones 3/4
As Output Phones 1/2, but:
Output levels at 0 dBFS
Hi-Power off +7 dBu, Hi-Power On +22 dBu
Balanced Phones mode
As before, but:
Output levels at 0 dBFS
Hi-Power off +13 dBu (3.46 V), Hi-Power On +28 dBu (19.5 V)
Output impedance
0.2 Ohm
Signal to Noise ratio (SNR) @ +28 dBu
123 dB RMS unweighted, 126 dBA
Signal to Noise ratio (SNR) @ +13 dBu
121 dB RMS unweighted, 125 dBA
Output level at 0 dBFS, Hi-Power On, load 150 Ohm or up
+28 dBu (19.5 V)
Output level at 0 dBFS, Hi-Power Off, load 8 Ohm or up
+13 dBu (3.46 V)
Max power @ 0.001% THD
2.9 W per channel
Digital Inputs
General
Lock Range
28 kHz – 200 kHz
Jitter suppression
> 50 dB (2.4 kHz)
Accepts Consumer and Professional format
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Input sensitivity 1.0 Vpp
SPDIF coaxial
1 x RCA, transformer-balanced, according to IEC 60958
High-sensitivity input stage (< 0.3 Vpp)
AES/EBU compatible (AES3-1992)
SPDIF optical
1 x optical, according to IEC 60958
ADAT compatible
Digital Outputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Output level 2.7 Vpp
Format Professional according to AES3-1992 Amendment 4
Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF coaxial
1 x RCA, according to IEC 60958
Output level 0.75 Vpp
Format Consumer SPDIF according to IEC 60958
Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF optical
1 x optical, according to IEC 60958
Format Consumer (SPDIF) according to IEC 60958
Sample rate 28 kHz up to 200 kHz
Digital
Clocks
Internal, AES In, SPDIF In, ADAT In
Jitter suppression of external clocks
> 50 dB (2.4 kHz)
Effective clock jitter influence on AD and DA conversion
near zero
PLL ensures zero dropout, even at more than 100 ns jitter
Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
Supported sample rates for external clocks
32 kHz up to 200
Internally supported sample rates
44.1 kHz up to 768 kHz
