RME

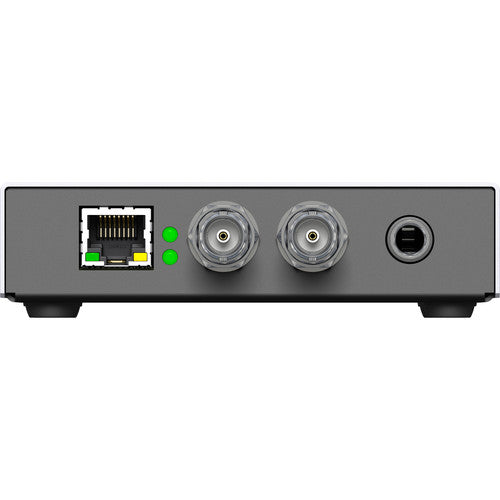

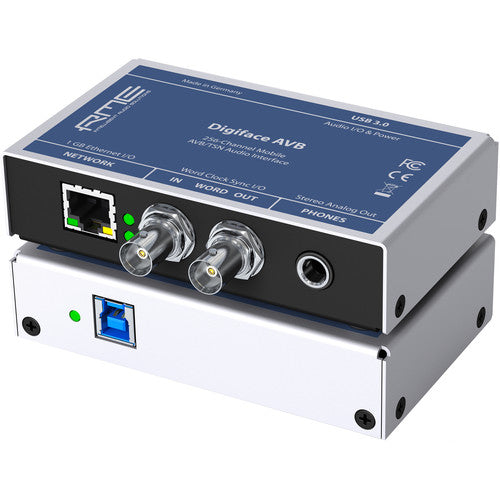

RME Digiface AVB 256-Channel Mobile AVB/USB Audio Interface

$1,149.00

The RME Digiface AVB 256-Channel Mobile AVB/USB Audio Interface is a compact, bus-powered device that transfers up to 256 channels of audio between a computer and an AVB (Audio Video Bridging) network, making it a powerful solution for large-scale audio networking applications.

The Digiface AVB acts as a high-channel-count bridge between a Mac or Windows PC and an IEEE 802.1 BA compliant AVB audio network via a single Gigabit Ethernet cable. It is a glimpse into the future of audio network technology, enabling synchronized and prioritized streaming of audio data over standard network infrastructure. Equipped with a USB 3.0 port, it provides up to 128 channels of input and 128 channels of output at sample rates up to 192 kHz.

The unit features RME's powerful DSP-based TotalMix FX mixer for unlimited routing and monitoring options, though it does not include DSP-based effects like EQ or reverb. The accompanying software includes an AVDECC controller to discover and manage all AVB devices on the network. Its small size, light weight, and bus-powered operation make it highly portable for use in broadcast, theatre, and large concert productions.

View Product Features
  • 128 inputs and 128 outputs for network audio
  • AVB streams audio over gigabit Ethernet networks
  • USB 3.0 for high-bandwidth low-latency computer connectivity
  • Bus-powered via USB for portable operation
  • TotalMix FX for zero-latency routing and monitoring
  • BNC word clock I/O for digital synchronization
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    Digiface AVB

    RME Digiface AVB 256-Channel Mobile AVB/USB Audio Interface

    $1,149.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME Digiface AVB 256-Channel Mobile AVB/USB Audio Interface

RME’s Digiface AVB showcases how audio can be transferred from a Mac or PC into the network and back using the AVB protocol stack. It allows to send up to 128 audio channels for record and playback at 48 kHz / 24 bit sampling frequency and 64 channels at 96 kHz (128 channels I/O AVB) or 32 channels at 192 kHz with quad speed (64 channels I/O AVB).

Key Features

  • 128 inputs and 128 outputs for network audio
  • AVB streams audio over gigabit Ethernet networks
  • USB 3.0 for high-bandwidth low-latency computer connectivity
  • Bus-powered via USB for portable operation
  • TotalMix FX for zero-latency routing and monitoring
  • BNC word clock I/O for digital synchronization

RME Digiface AVB 256-Channel Mobile AVB/USB Audio Interface Specs

Gigabit Ethernet Port
RJ45
100 Mbit/s, 1 Gbit/s
Standard port LEDs
yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Up to 16 AVB audio streams
AVDECC based exchange of status and control data
Network-based remote control of the unit (TotalMix Remote)
Word Clock In
BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed
Word Clock Out
BNC
Max level
5 Vss
Level with termination 75 Ohm
4.0 Vss
Internal impedance
10 Ohm
Output Analog Phones 33/34
Dynamic range (DR)
110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB
0 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB
0 Hz – 45 kHz
Frequency response @ 192 kHz, -1 dB
0 Hz - 89 kHz
THD @ -1 dBFS
- 96 dB, 0.0016 %
THD+N @ -1 dBFS
-95 dB, 0.0017 %
Channel separation
> 100 dB
Output
6.3 mm TRS jack, unbalanced
Output impedance
2 Ohm
Output level at 0 dBFS, 1 kOhm load
+9.5 dBu
Max power @ 0.1% THD
50 mW
Digital
Clocks
Internal, AVB, Word
Supported sample rates
44.1 kHz up to 192 kHz
General
Power supply
USB bus power
Typical power consumption
1.5 Watts
Current at 5 V bus power operation
300 mA
Max power consumption
2 Watts (400 mA)
Dimensions (WxHxD)
112 x 26 x 83 mm (4.41" x 1.02" x 3.27")
Weight
300 g (0.49 lbs)
Temperature range
+5° up to +50° Celsius (41° F up to 122°F)
Relative humidity
< 75%, non condensing

Key Features

  • 128 inputs and 128 outputs for network audio
  • AVB streams audio over gigabit Ethernet networks
  • USB 3.0 for high-bandwidth low-latency computer connectivity
  • Bus-powered via USB for portable operation
  • TotalMix FX for zero-latency routing and monitoring
  • BNC word clock I/O for digital synchronization
