Tannoy

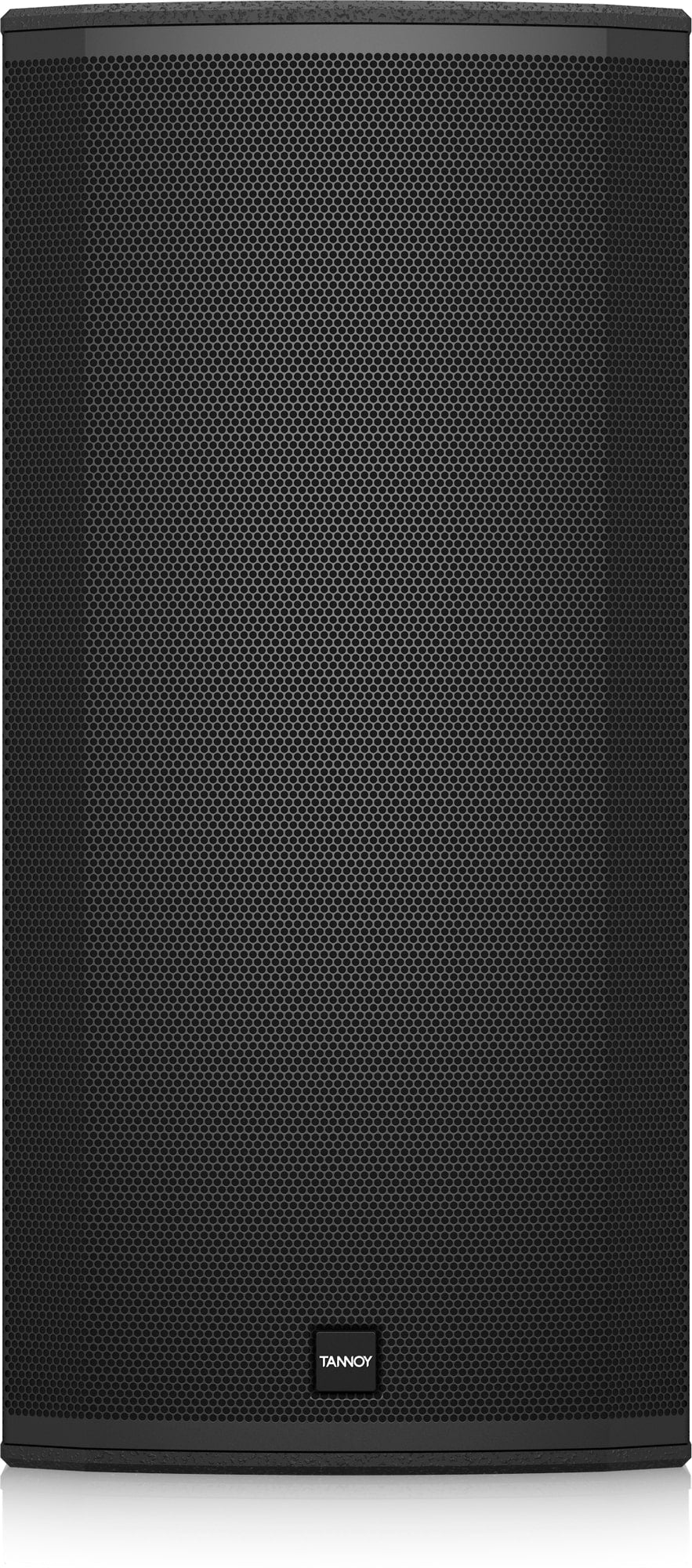

Tannoy VX 12.2Q 12.2Q 12" PowerDual Full Range Loudspeaker w/ Low Frequency Driver and Q-Centric Waveguide for Portable and Installation Applications

$1,649.00

The VX 12.2Q is a new class of device that delivers high SPL, low distortion audio coverage in a complete high performance loudspeaker cabinet. It provides a high impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for mid-scale portable/live PA applications. Thanks to its twin driver design for extended low frequency reproduction and flexible mounting options, the VX 12.2Q is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 12.2Q can also be configured for bi-amp operation.

View Product Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • 12" low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Tannoy VX 12.2Q 12.2Q 12" PowerDual Full Range Loudspeaker w/ Low Frequency Driver and Q-Centric Waveguide for Portable and Installation Applications

The Tannoy VX 12.2Q is a professional-grade, high-output 12-inch two-way powered loudspeaker designed for versatile use in both portable PA and permanent installation applications. Its core innovation is Tannoy's proprietary Q-Centric waveguide, which houses a 1.4-inch exit compression driver concentrically mounted within the LF driver's pole piece. This true coaxial alignment ensures perfect time and phase coherence between the high and low-frequency sound sources, resulting in exceptional stereo imaging, a wide and consistent coverage pattern, and a well-defined sweet spot, even when listeners are off-axis. The integrated Class-D amplifier module is specifically tuned to the speaker's components, providing optimized power and dynamic performance with built-in system protection.

Engineered for durability and ease of use, the VX 12.2Q features a rugged plywood enclosure with a textured, road-ready finish and ergonomic steel handles. The integrated amplifier offers comprehensive onboard processing, including user-selectable presets for different applications (e.g., Main, Monitor, Speech), a 3-band EQ, and delay. Connectivity is extensive, featuring both XLR and 1/4-inch inputs with a mix-thru link output, as well as a dedicated XLR input for an optional wireless microphone receiver. Multiple rigging points and an integrated pole mount socket provide flexible deployment options, whether as a standalone floor monitor, on a speaker stand, or flown in an array using optional hardware.

As a member of the VX Series, the 12.2Q delivers tour-grade performance in a highly practical, self-powered format. It excels as a main PA speaker for live bands and DJs, as a powerful stage monitor, or as a primary loudspeaker in fixed installations such as houses of worship or performance venues. Its combination of coaxial clarity, high output, integrated amplification, and robust build makes it a complete, reliable audio solution that eliminates the need for external crossovers and amplifier matching, streamlining setup and ensuring consistent, high-fidelity sound reinforcement.

Key Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • 12" low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation

Tannoy VX 12.2Q 12.2Q 12" PowerDual Full Range Loudspeaker w/ Low Frequency Driver and Q-Centric Waveguide for Portable and Installation Applications Specs

System Design
Enclosure Type
2-way, powered, coaxial
Waveguide Technology
Q-Centric Concentric Coaxial Waveguide
Drivers
Low-Frequency
12" (300 mm)
High-Frequency
1.4" (35 mm) exit compression driver (coaxial)
Amplification & Processing
Amplifier Class
Class D
Power Output (LF/HF)
700W / 200W
DSP Presets
Multiple (e.g., Main, Monitor, Speech)
EQ
3-band user adjustable
Connectivity
XLR & 1/4" inputs, Link output, Mic receiver input (optional)
Performance
Frequency Response
45 Hz - 20 kHz (-6 dB)
Maximum SPL
132 dB peak
Coverage Pattern
90° conical (Q-Centric waveguide)
Physical
Enclosure Material
Plywood
Finish
Textured black coating
Mounting
Pole socket, M10 rigging points
Dimensions (H x W x D)
25.0" x 16.1" x 14.2"
Weight
45.2 lbs (20.5 kg)

Key Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • 12" low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
