Avipas

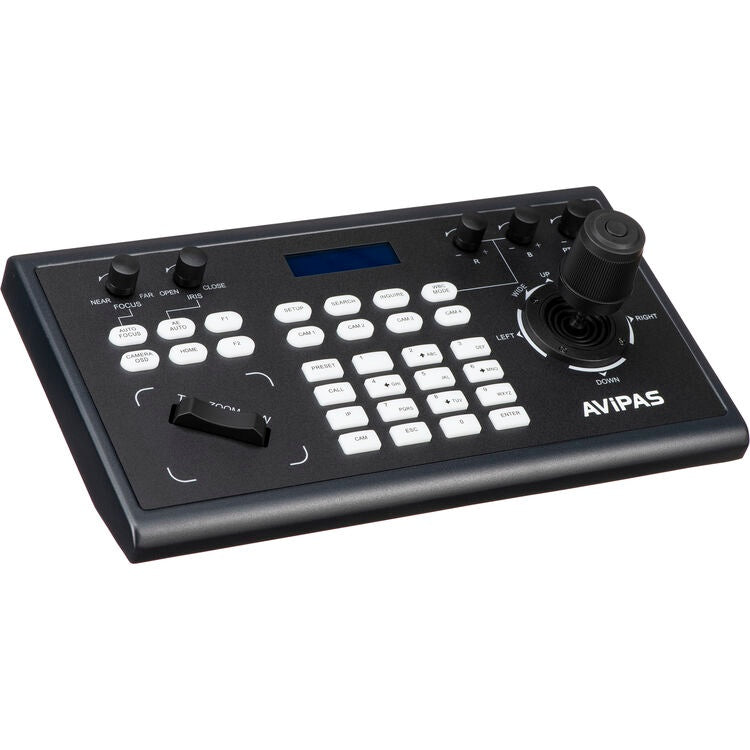

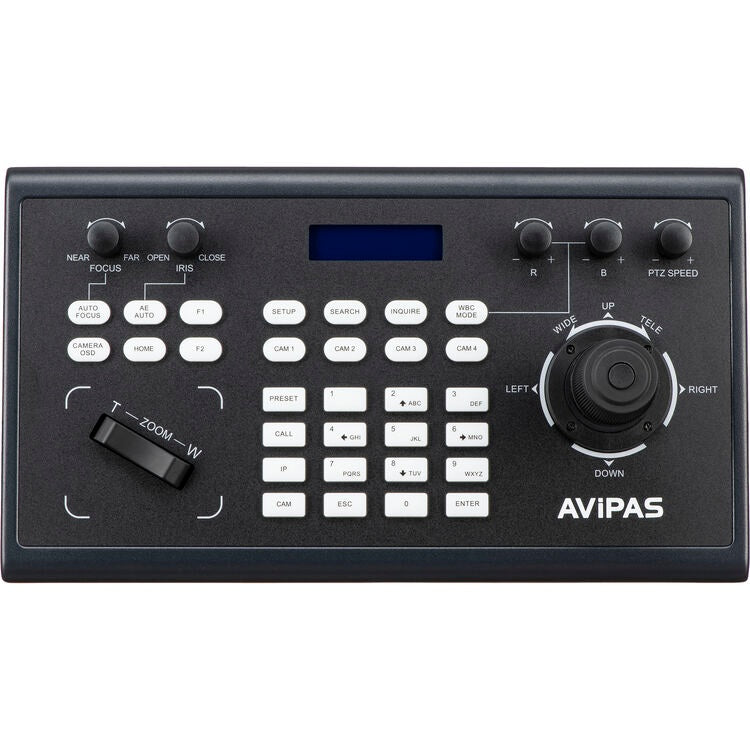

Avipas AV-3104IP Joystick PTZ Controller

$560.00

The AV-3104IP 4D Keyboard Controller from AViPAS offers joystick and button control for your PTZ cameras with support for VISCA, VISCA IP, Pelco-P, Pelco-D, and ONVIF protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.

View Product Features

  • 4D Pan / Tilt / Zoom / Lock PTZ Control
  • IP & Serial RS-232/422/485 Communication
  • 2 x IP & 2 x Serial Control Modes
  • VISCA/VISCA IP/Pelco-P & D/ONVIF Support
  • Power-over-Ethernet (PoE) Support
Low stock
1 in stock – Hurry while stock lasts

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Avipas AV-3104IP Joystick PTZ Controller

The AV-3104IP 4D Keyboard Controller delivers intuitive joystick and button control for PTZ cameras across multiple protocols. Supporting VISCA, VISCA IP, Pelco-P, Pelco-D, and ONVIF, it connects seamlessly via IP, RS-232, RS-422, and RS-485. Adjust pan, tilt, zoom, and lock speeds with precision, while the integrated LCD screen keeps you informed. Ideal for broadcast, surveillance, and live event production.

The controller also offers presets including gain, iris, focus, red and blue gain, and speed control settings to control the finer settings on the PTZ camera. The AV-3104IP 4D features two IP control modes using VISCA IP and ONIF and two serial control modes using RS-422 and RS-232. The unit comes with a 12 VDC power supply or it can be powered using Power-over-Ethernet (PoE).

Key Features

  • 4D Pan / Tilt / Zoom / Lock PTZ Control
  • IP & Serial RS-232/422/485 Communication
  • 2 x IP & 2 x Serial Control Modes
  • VISCA/VISCA IP/Pelco-P & D/ONVIF Support
  • Power-over-Ethernet (PoE) Support

Avipas AV-3104IP Joystick PTZ Controller Specs

Control I/O
1x RJ45 (LAN), 1x Block (RS-422), 1x DE-15/DB-15 (RS-232)
Controls
1x Pan/Tilt, Zoom Joystick
PoE Support
Yes
Power Consumption
0.6 W

Key Features

  • 4D Pan / Tilt / Zoom / Lock PTZ Control
  • IP & Serial RS-232/422/485 Communication
  • 2 x IP & 2 x Serial Control Modes
  • VISCA/VISCA IP/Pelco-P & D/ONVIF Support
  • Power-over-Ethernet (PoE) Support
