Barco

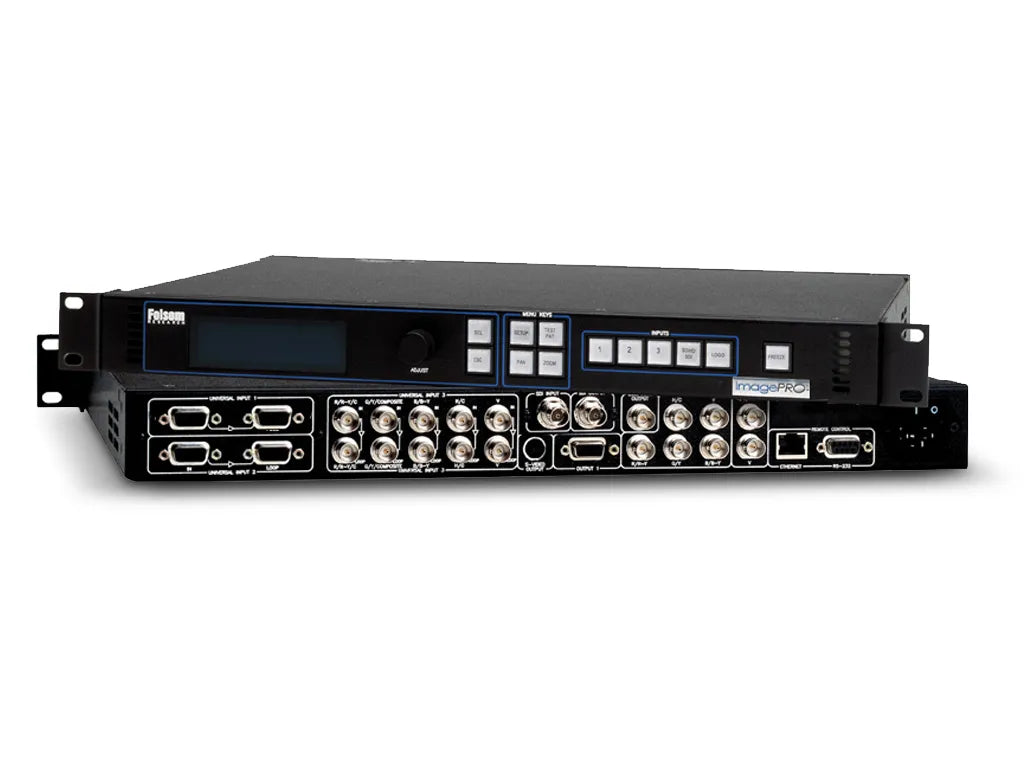

Barco Folsom R9860411 ImagePRO-SDI Scaler/Converter

$119.00

The ImagePRO-HD is engineered to accept numerous input formats—including RGB, HDTV, component, S-video, composite (NTSC, PAL, and SECAM), DVI, and HD/SD-SDI—and convert them into virtually any user-selectable output format. It is built with Barco's proprietary "Athena" 10-bit image processing technology, ensuring high image quality, crisp up- and down-conversion, and minimal processing delays. The unit features a user-friendly front panel with an electro-luminescent display and dedicated controls for source selection, parameter adjustments, and preset recall, making it ideal for demanding live event environments. The chassis is a durable 1U rack-mountable design.

View Product Features
  • Universal analog inputs with loop-through connectivity.
  • Athena 10-bit processing delivers superior image fidelity.
  • SDI input and output for digital broadcast compatibility.
  • Motion adaptive de-interlacing for HDTV sources.
  • Ethernet and RS-232 for real-time remote control.
  • 64-memory presets for instant scene recall.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

    No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Barco Folsom R9860411 ImagePRO-SDI Scaler/Converter

The Barco Folsom R9860411 ImagePRO-SDI is a professional all-in-one video scaler, scan converter, standards converter, switcher, and transcoder engineered for demanding live event, broadcast, and installation environments. Incorporating Folsom's proprietary Athena image processing technology, this 1U rack-mountable unit accepts a wide range of input formats and converts them into virtually any user-selectable output format while maintaining exceptional image quality with minimal processing delays. The device supports 10-bit processing per color channel, ensuring a high signal-to-noise ratio and preserving dynamic range, which is particularly evident in dark image regions and areas of subtle tonal variation.

The ImagePRO-SDI model features three universal analog inputs on two HD15 connectors and one 5-BNC connector, accepting RGBHV, RGBS, RGsB computer video, component video (SD or HDTV), S-Video, or composite video, all with buffered loop-through connectivity. A dedicated SD SDI input and output on BNC connectors provides digital broadcast compatibility, with the option to upgrade the unit to the full ImagePRO-HD specification for expanded capabilities including DVI I/O. A dedicated genlock BNC connector with loop-through ensures seamless integration with broadcast sync environments, eliminating image tearing and motion artifacts through frame rate conversion lock.

Advanced processing features include motion adaptive and field-to-frame de-interlacing modes, 3:2 pulldown detection for NTSC and 2:2 film detection for PAL video sources, user-defined aspect ratio conversion, pan and zoom, freeze frame, and logo image capture with dissolve capabilities. The unit supports NTSC, PAL, and SECAM decoding and encoding, making it a versatile solution for international applications. Control options include front panel electro-luminescent display with dedicated controls, Ethernet (TCP/IP) for network-based real-time control, and RS-232 serial connectivity. Executive mode protects system configuration settings during use, while 64 independent memory presets allow instant recall of sizing, centering, detail, contrast, brightness, and other configuration parameters.

Key Features

  • Universal analog inputs with loop-through connectivity.
  • Athena 10-bit processing delivers superior image fidelity.
  • SDI input and output for digital broadcast compatibility.
  • Motion adaptive de-interlacing for HDTV sources.
  • Ethernet and RS-232 for real-time remote control.
  • 64-memory presets for instant scene recall.

Barco Folsom R9860411 ImagePRO-SDI Scaler/Converter Specs

Input Connectors
Universal Analog Inputs
3 (channels)
Input 1 Connector
15-pin HD (RGBHV/RGBS/RGsB, Component, S-Video, Composite)
Input 2 Connector
15-pin HD (RGBHV/RGBS/RGsB, Component, S-Video, Composite)
Input 3 Connector
5 x BNC (RGBHV/RGBS/RGsB, Component)
SDI Input
1 x BNC (SD-SDI)
Genlock Input
1 x BNC (Blackburst, H/V Sync, C-Sync)
Input Loop-Through
All universal inputs and genlock (buffered)
Output Connectors
Primary RGB/Component Output
1 x 5-BNC
Secondary RGB/Component Output
1 x 15-pin HD
SDI Output
1 x BNC
Composite Output
1 x BNC
S-Video Output
1 x 4-pin mini-DIN
Signal Processing
Bit Depth
10-bit per color channel
De-interlacing
Motion Adaptive and Field-to-Frame
Pulldown Detection
3:2 (NTSC), 2:2 (PAL)
Aspect Ratio
User-defined conversion and adjustments
Pan & Zoom
Continuous real-time operation
Frame Lock
Genlock, H/V Lock, VLock
Memory & Presets
Memory Presets
64 independent configurations
Executive Mode
Protects system settings during use
Additional Features
Logo Capture
Image capture and recall
Logo Transition
Dissolve to/from stored logo
Freeze Frame
Yes
Input Auto-detection
Automatic format detection and acquisition

Key Features

  • Universal analog inputs with loop-through connectivity.
  • Athena 10-bit processing delivers superior image fidelity.
  • SDI input and output for digital broadcast compatibility.
  • Motion adaptive de-interlacing for HDTV sources.
  • Ethernet and RS-232 for real-time remote control.
  • 64-memory presets for instant scene recall.
