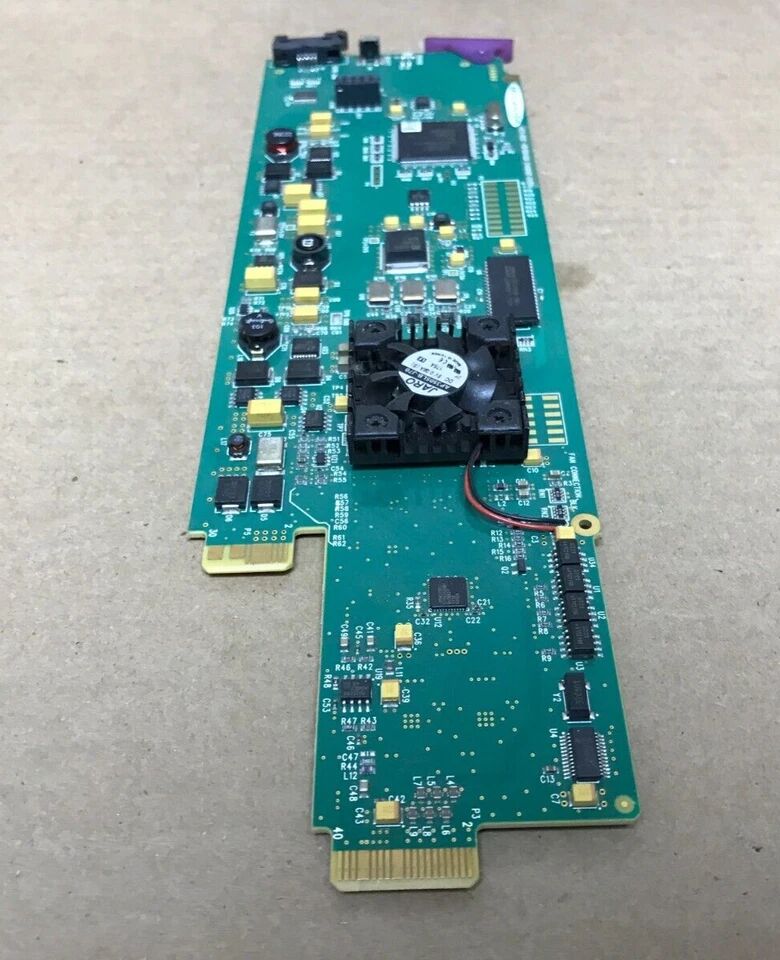

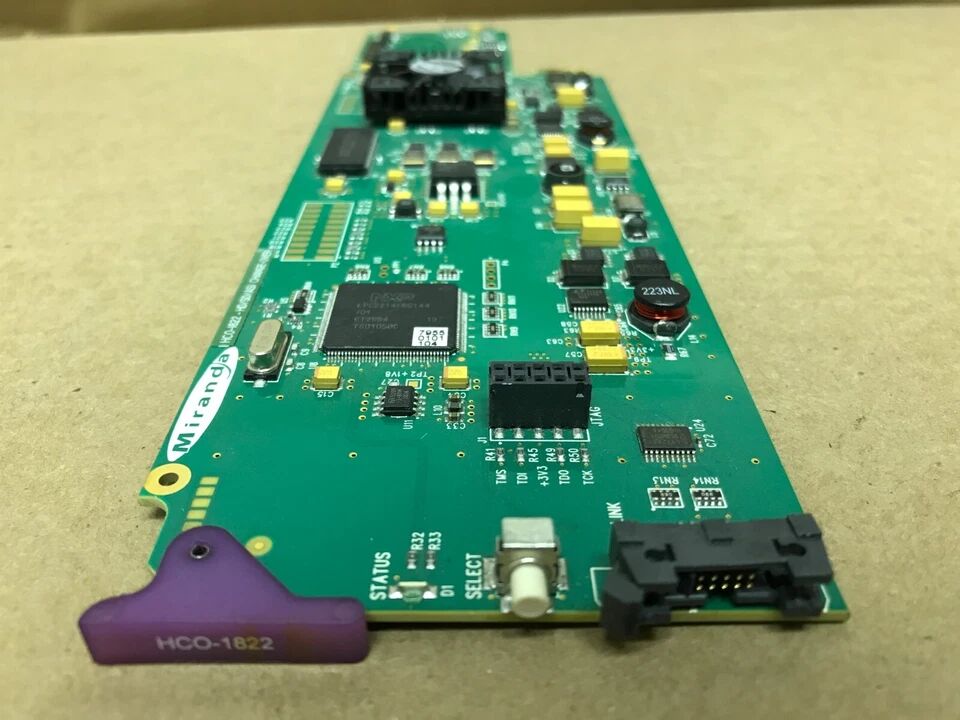

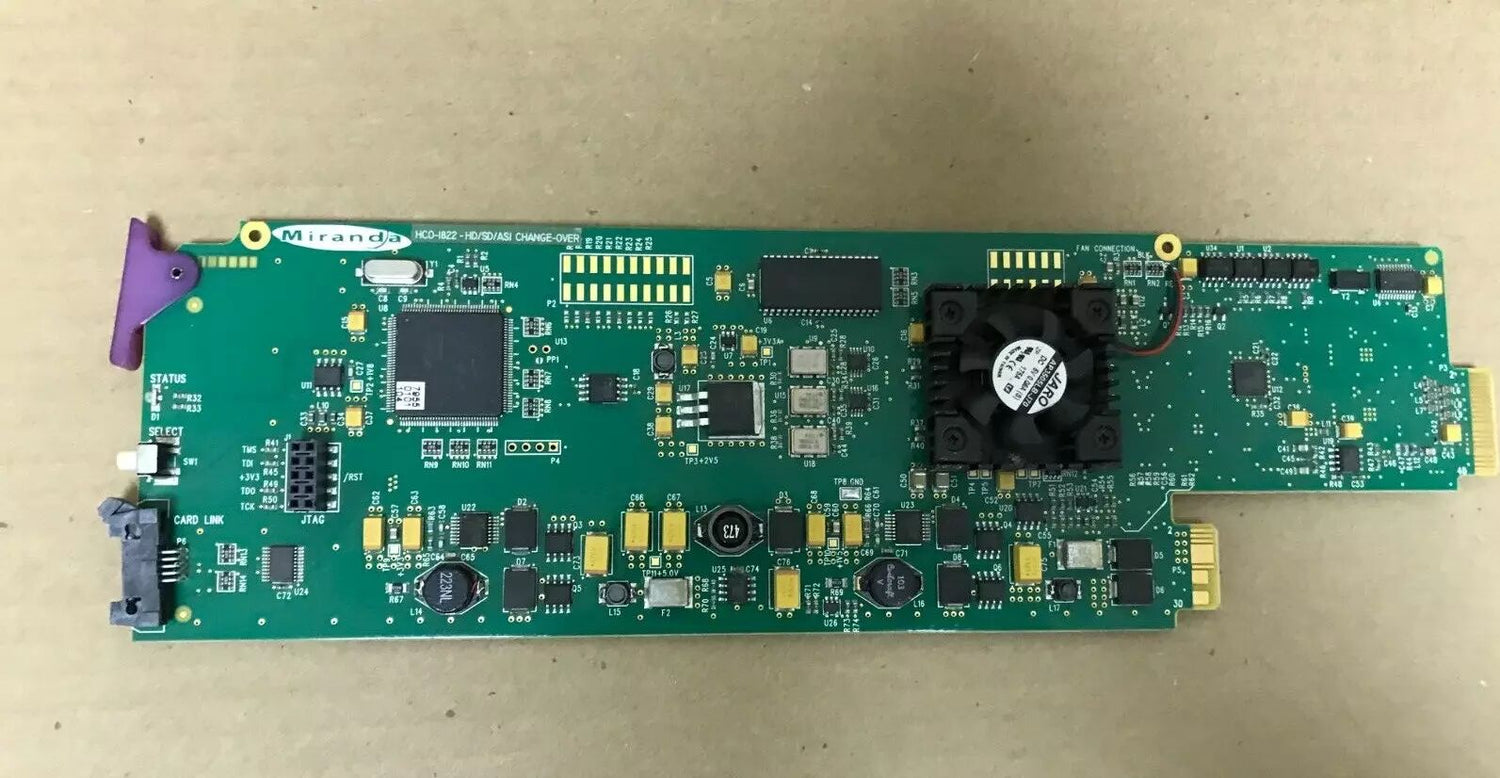

The Miranda HCO-1822 is a professional broadcast-grade 2x1 automatic change-over switch designed for mission-critical signal paths within Miranda's Densité 3RU modular frame system. Its primary function is to provide automatic and manual redundancy switching between two identical input signals—typically primary and backup feeds of video, audio, or ASI (Asynchronous Serial Interface) data—ensuring continuous on-air operation in the event of a failure on the primary path. The module monitors both input signals for critical parameters such as loss of signal, loss of lock, or out-of-tolerance conditions. When a fault is detected on the primary input, it automatically and seamlessly switches to the backup input with minimal disruption, often employing a "clean switch" mechanism that avoids glitches, clicks, or picture breaks during the transition. This is essential for broadcasters, playout centers, and network operators where signal integrity and uptime are non-negotiable.

Housed as a card that slides into the Densité frame, the HCO-1822 leverages the frame's power, cooling, and control infrastructure. The "OPT-CS" designation indicates it is equipped with the optional Clean Switch feature, which uses advanced processing to align the timing and phase of the two inputs before switching, guaranteeing a broadcast-quality transition without visual or audible artifacts. The module can be configured and controlled via the frame's software interface, allowing engineers to set failover priorities, adjust fault detection thresholds, and manually override the automatic switching. It supports a variety of signal formats, including HD-SDI, SD-SDI, and ASI, making it a versatile component for protecting critical feeds in a hybrid SDI/ASI infrastructure.

The value of this change-over switch lies in its role as an insurance policy for broadcast continuity. By providing intelligent, automatic redundancy in a compact, modular form factor, it protects against equipment failures, fiber cuts, or other signal path disruptions. Its integration into the Densité platform allows it to be part of a larger, managed system of processing and routing cards, all controlled from a single point. For chief engineers and network managers, the Miranda HCO-1822 offers peace of mind, ensuring that signal delivery remains robust and reliable, safeguarding the broadcaster's ability to stay on air under virtually all circumstances.
