Sony

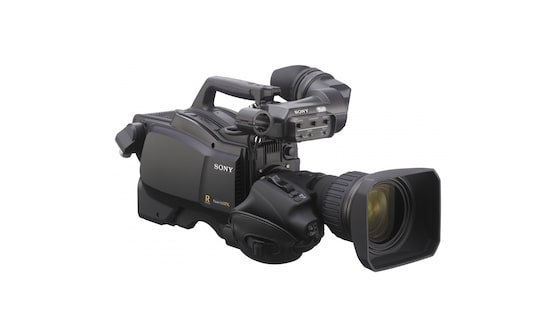

Sony HSC-100R HD/SD Digital Triax Broadcast Camera

$8,900.00

The Sony HSC-100R Digital Triax Broadcast Camera is a versatile HD/SD unit featuring a digital triax CCU input, designed to seamlessly integrate with traditional triax infrastructures for easy system upgrades. It supports cable lengths up to 3,937 ft to an optional CCU. Equipped with a 2/3" CCD sensor, the camera delivers F10 sensitivity at 1080i59.94 and F11 at 1080i50, maintaining a -60dB signal-to-noise ratio. It records in 720p and 1080PsF formats, with high-quality SD down-conversion. Optional HZC-PSF3 software enables 1080/29.97PsF/25PsF recording. The Sony Bayonet mount supports various lenses, while inputs and outputs include XLR audio and mic, HD/SD-SDI out, VF and return signals, SDI prompter/genlock/return inputs, and XLR intercom. Integrated electronic color correction and four ND filters enhance image control.

View Product Features

Multi-format operation
A wide range of capturing modes are available including 1080/29.97PsF* and
1080/25PsF*1 as well as 1080/50i, 1080/59.94i, 720/50p, 720/59.94p, 576/50i, and
480/59.94i.
* Optional HZC-PSF3 software is required.
Sophisticated 2/3-inch CCDs
The HSC Series camera is equipped with field-proven 2/3-inch type full-resolution 1920 x 1080 CCDs. Due to Sony’s advanced sensor technologies, the CCD imager offers a high sensitivity of F10 for 59.94 Hz and F11 for 50 Hz with a remarkable signal-to-noise ratio (S/N) of -60 dB (HD) for high-quality pictures in all kinds of demanding shooting environments.
High-quality 16-bit A/D conversion and DSP LSI
The HSC Series camera incorporates a high-performance 16-bit A/D converter with the latest technologies that enables captured images to be processed with maximum precision. Also, the Auto Lens Aberration Compensation function can optimize lens performance to provide stunning picture quality.
Digital Extender function
Digital Extender function expands the size of the image by a factor of 2 in the center of captured images by the image sensor. This function works without decrease in sensitivity, such as F-number drop, which occurs by the use of conventional optical
extender functions.
Auto Lens Aberration Compensation 2 (ALAC2) function
The ALAC2 function automatically reduces lens chromatic aberration by both horizontal and vertical compensation when a lens supporting ALAC2 function is
attached.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the Sony HSC-100R HD/SD Digital Triax Broadcast Camera

Key Features

Multi-format operation
A wide range of capturing modes are available including 1080/29.97PsF* and
1080/25PsF*1 as well as 1080/50i, 1080/59.94i, 720/50p, 720/59.94p, 576/50i, and
480/59.94i.
* Optional HZC-PSF3 software is required.
Sophisticated 2/3-inch CCDs
The HSC Series camera is equipped with field-proven 2/3-inch type full-resolution 1920 x 1080 CCDs. Due to Sony’s advanced sensor technologies, the CCD imager offers a high sensitivity of F10 for 59.94 Hz and F11 for 50 Hz with a remarkable signal-to-noise ratio (S/N) of -60 dB (HD) for high-quality pictures in all kinds of demanding shooting environments.
High-quality 16-bit A/D conversion and DSP LSI
The HSC Series camera incorporates a high-performance 16-bit A/D converter with the latest technologies that enables captured images to be processed with maximum precision. Also, the Auto Lens Aberration Compensation function can optimize lens performance to provide stunning picture quality.
Digital Extender function
Digital Extender function expands the size of the image by a factor of 2 in the center of captured images by the image sensor. This function works without decrease in sensitivity, such as F-number drop, which occurs by the use of conventional optical
extender functions.
Auto Lens Aberration Compensation 2 (ALAC2) function
The ALAC2 function automatically reduces lens chromatic aberration by both horizontal and vertical compensation when a lens supporting ALAC2 function is
attached.
