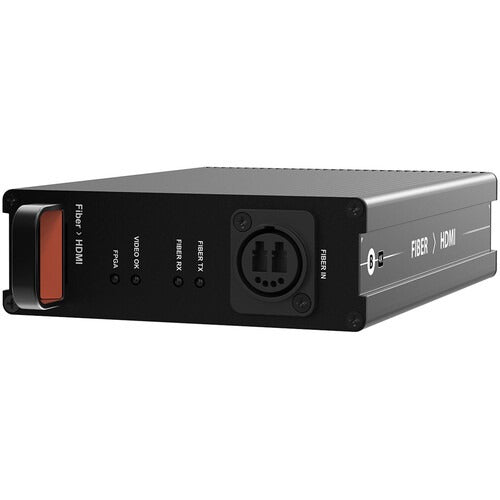

Theatrixx Technologies Fiber SDVoE to HDMI 2.0 + 1 Gb/s Ethernet Reversible Module (Multimode, OpticalCON Dual)
$2,165.00
Unit price
/
This Fiber SDVoE to HDMI 2.0 + 1 Gb/s Ethernet Reversible Module from Theatrixx Technologies is designed for mounting into the XVVRF8 8-Bay Reversible Frame in either direction, adding a multimode Fiber SDVoE (Software-Defined Video-over-Ethernet) input and offering OpticalCON Dual connectivity. It outputs via HDMI 2.0 and 1 Gb/s Ethernet, and it supports 4:2:2 and 4:4:4 video sampling and YUV and RGB color spaces. Having no exposed PCBs, the device is inherently protected against static, shock, and dust.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
-
New
-
About the Theatrixx Technologies Fiber SDVoE to HDMI 2.0 + 1 Gb/s Ethernet Reversible Module (Multimode, OpticalCON Dual)
Key Features
Theatrixx Technologies Fiber SDVoE to HDMI 2.0 + 1 Gb/s Ethernet Reversible Module (Multimode, OpticalCON Dual) Specs
Module Identification
Compatible Frame
Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame (3RU)
Module Function
SDVoE multimode fiber to HDMI 2.0 receiver / decoder

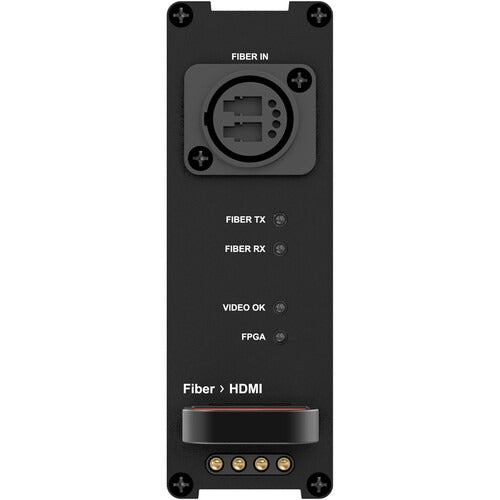

Fiber Input
Input Connector Type
10 Gbps Optical Ethernet, SFP-based
Fiber Type
Multimode (MM)
Connector Type
Neutrik OpticalCON DUO (duplex)
Input Signal Type
SDVoE (Software-Defined Video-over-Ethernet)

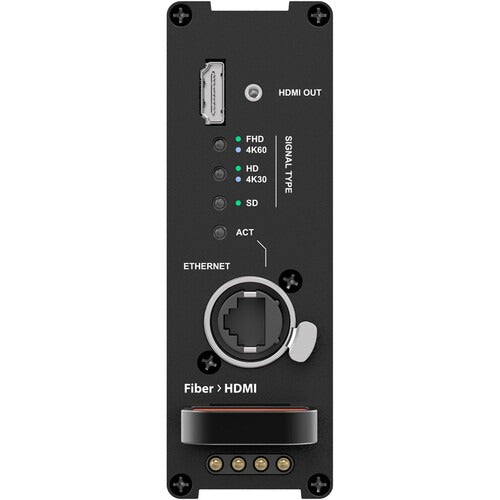

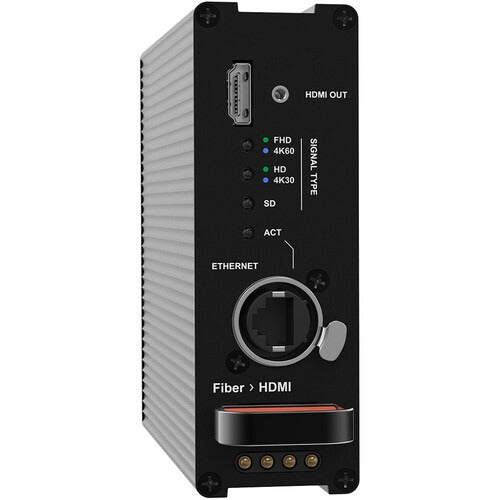

Video Output
Output Connector Type
HDMI 2.0 Type A with locking system
Maximum Output Resolution
4K60 (4096x2160 @ 60 Hz)
Chroma Subsampling Support
4:4:4 (8-bit) and 4:2:2 (10-bit)
High Dynamic Range
HDR10 and Dolby Vision
Supported HDMI Formats
All HDMI 2.0 specifications
Ethernet Pass-Through
Ethernet Port
1 x 1 Gbps Ethernet on Neutrik EtherCON
Function
Auxiliary signal pass-through (1 Gbps)
Audio Specifications
Embedded Audio Channels
Up to 8 channels
Audio Bit Depth
24-bit
Audio Sampling Rate
192 kHz maximum
Audio Passthrough
Embedded in HDMI output
Encoding & Performance
Encoding Technology
SDVoE (NT1000-based chipset)
Typical Latency
< 0.1 milliseconds (zero-frame)
Transmission Medium
10 Gigabit Ethernet / multimode fiber
Power Specifications
Power Source
XVVRF8 frame backplane via spring pins
Voltage
12 V DC
Power Consumption
20 W maximum
