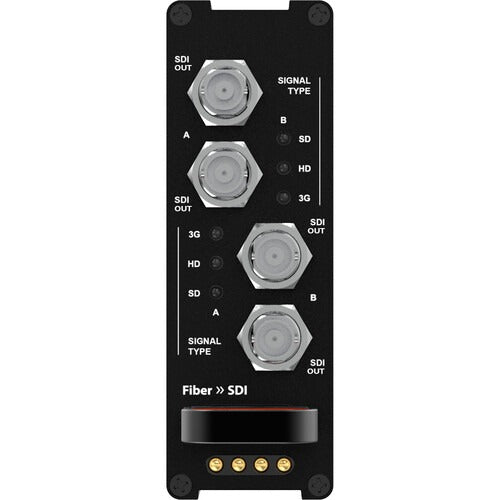

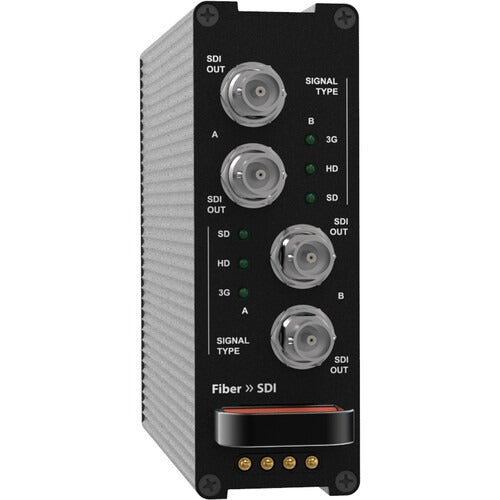

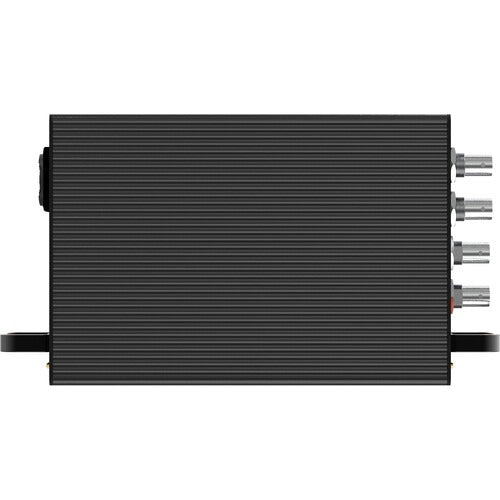

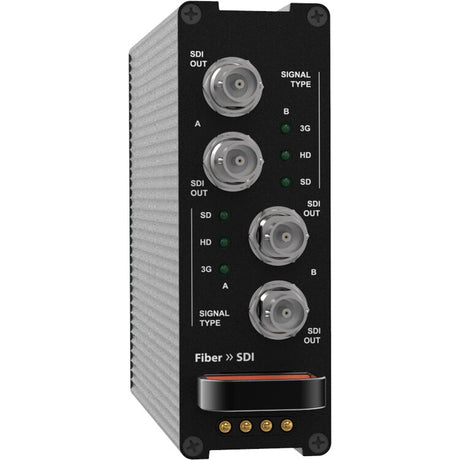

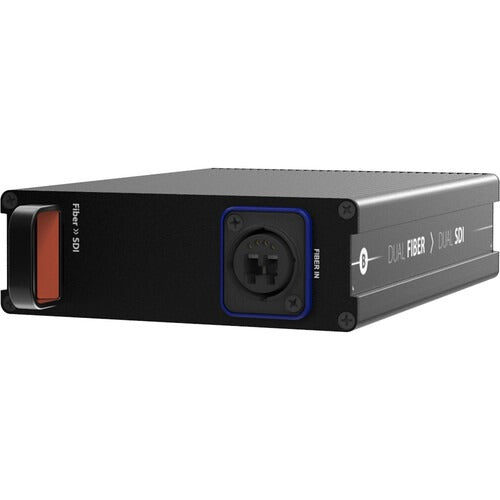

Theatrixx Technologies xVision Reversible Module (Dual Channel Fiber to 3G-SDI, Singlemode, OpticalCON Duo)
$1,599.00
Unit price
/
The Dual Fiber to Dual SDI Reversible Module fits in the Theatrixx 8-bay Frame.
The Theatrixx XVVRM2FIBER2SDIS2 module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
-
New
-
About the Theatrixx Technologies xVision Reversible Module (Dual Channel Fiber to 3G-SDI, Singlemode, OpticalCON Duo)
Key Features
Theatrixx Technologies xVision Reversible Module (Dual Channel Fiber to 3G-SDI, Singlemode, OpticalCON Duo) Specs
Module Identification
Compatible Frame
Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame (3RU)
Module Function
Dual-channel single-mode fiber to 3G-SDI converter
Optical Inputs
Input Connector Type
Neutrik OpticalCON DUO (duplex)
Number of Optical Inputs
2 independent channels
Fiber Type Supported
Single-mode (SM)
Optical Standard
3G/HD/SD-SDI over fiber
Maximum Transmission Distance
Several kilometers (single-mode typical range)
SDI Outputs
Output Connector Type
BNC (professional 75Ω)
Number of SDI Outputs
2 independent outputs (one per fiber channel)
Output Signal Type
Reclocked, amplified 3G-SDI
Output Impedance
75Ω
Video Format Support
3G-SDI Formats
SMPTE 424M (Level A and B) at 2.97 Gb/s
HD-SDI Formats
SMPTE 292M (1.485 Gb/s)
SD-SDI Formats
SMPTE 259M (270 Mb/s)
Embedded Audio
Full passthrough support
Power Specifications
Power Source
XVVRF8 frame backplane via spring pins
Voltage
12 V DC
Power Consumption
20 W maximum
Power Connection
Gold-plated redundant spring pins
Power Reliability
Magnetic retention with spring pin redundancy
