Avitech

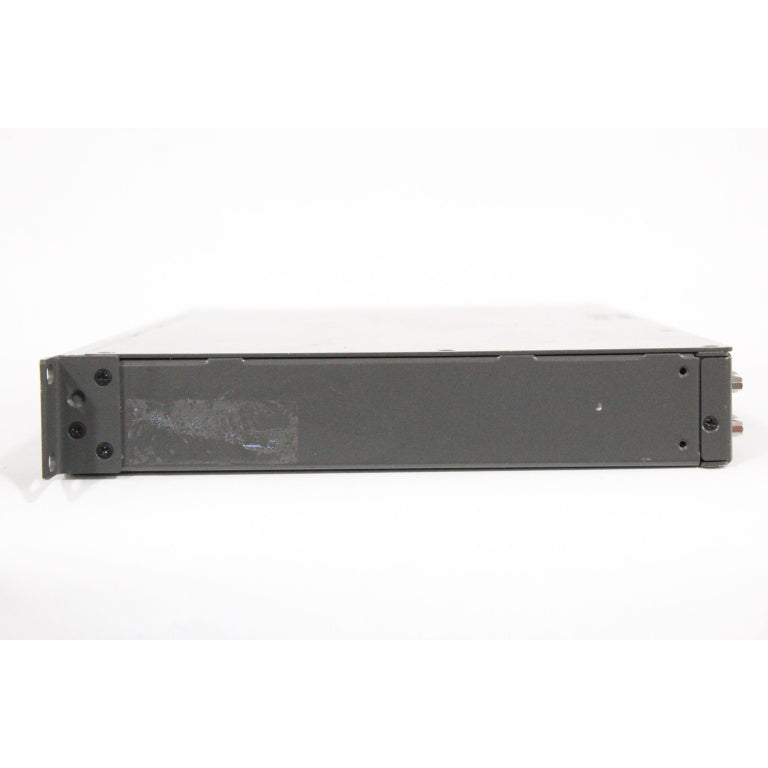

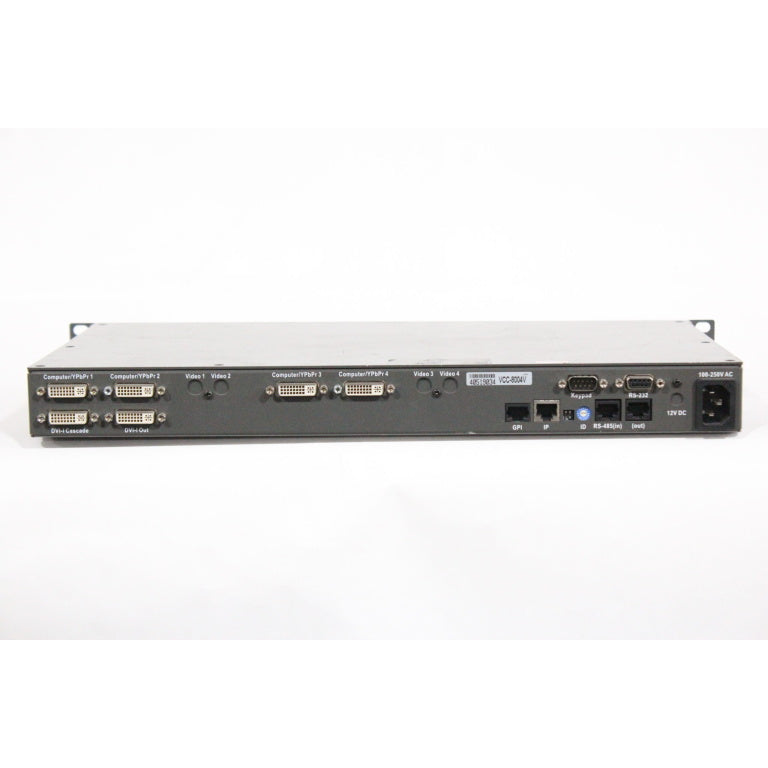

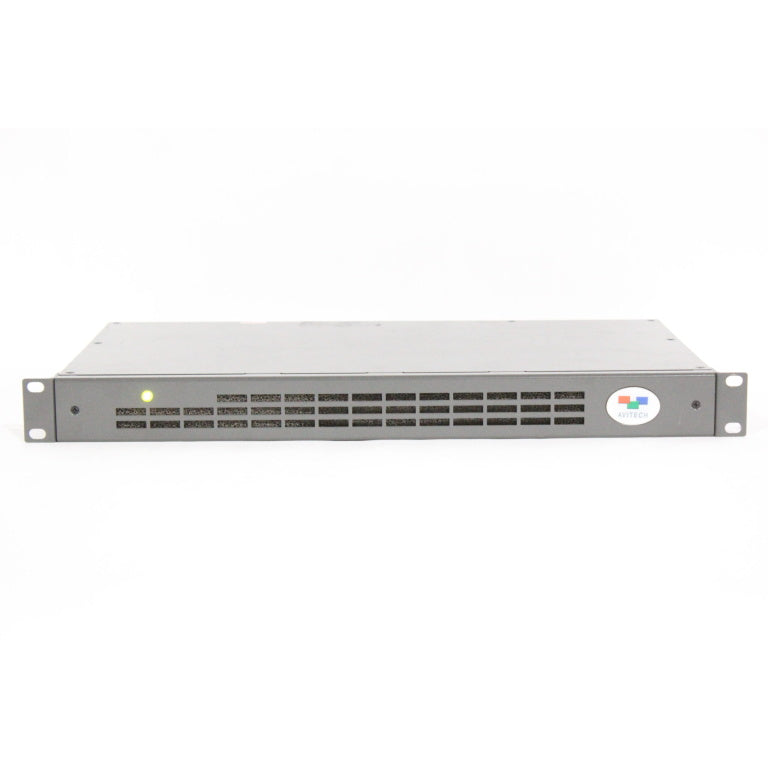

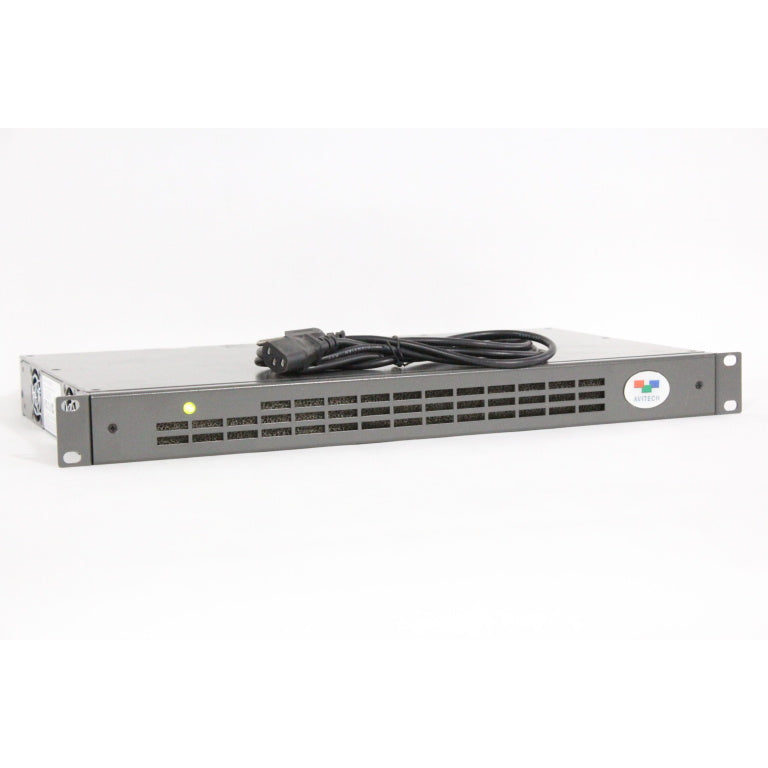

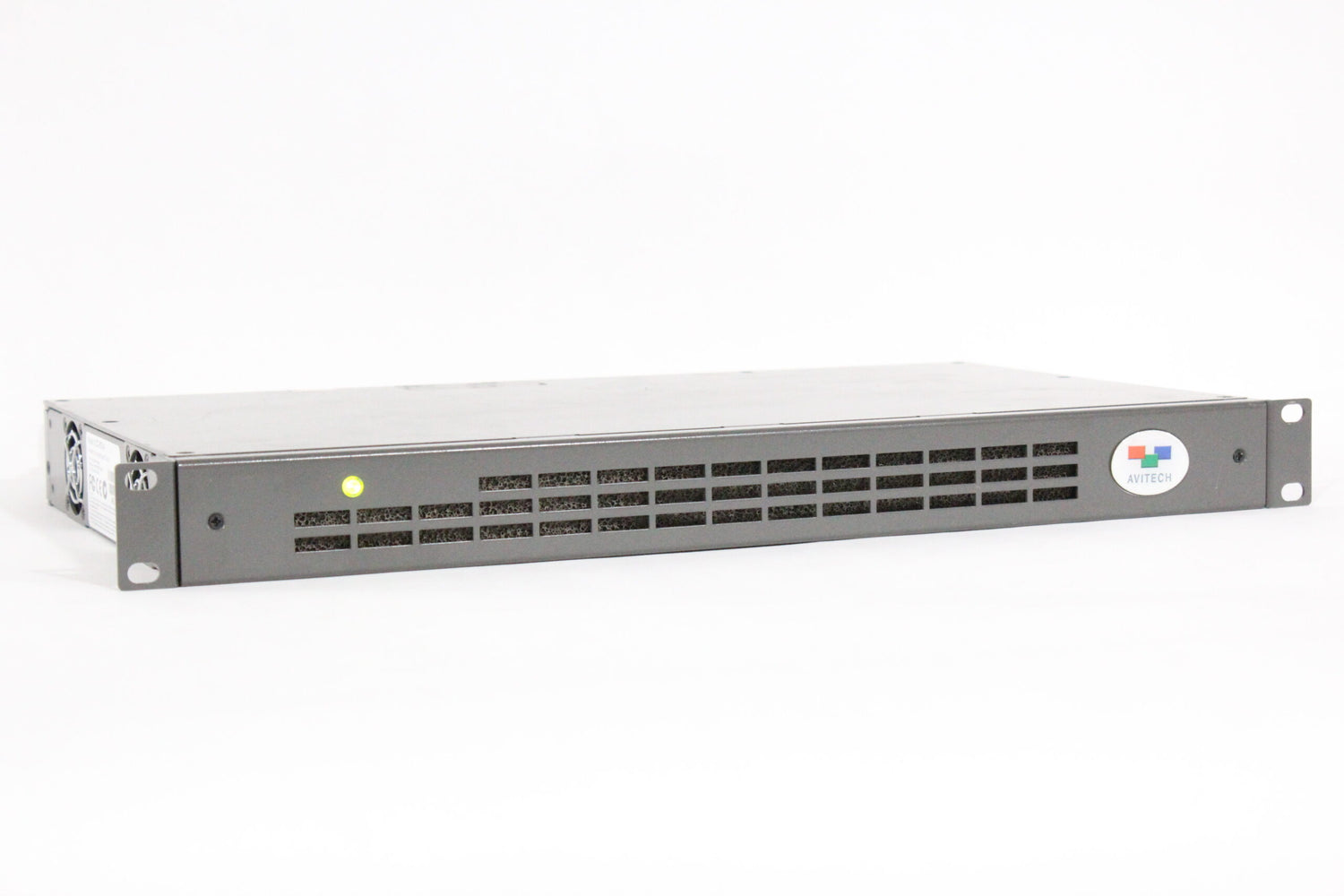

Avitech MCC-8004DA SD-SDI Video Multiviewer 4 BNC Inputs

$49.99

The Avitech MCC‑8004DA is a compact SD-SDI/HD-SDI multiviewer that auto-senses up to four SD or HD-SDI inputs and displays multiple windows with labels, alarms, and optional audio meters on a single output up to 1920×1200. It supports cascading up to 15 units for larger systems.

View Product Features

  • Accepts four auto-sensing SD/HD-SDI or composite video inputs
  • Outputs to 1920×1200 resolution with OSD labels and alarms
  • Cascadable up to 15 units for expanded monitoring
  • Supports analog or AES audio metering overlays
  • Compact rack-mount unit ideal for broadcast environments
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Avitech MCC-8004DA SD-SDI Video Multiviewer 4 BNC Inputs

The Avitech MCC-8004DA is a professional SD-SDI (Standard Definition Serial Digital Interface) multiviewer designed for monitoring and displaying multiple video sources on a single display. It accepts up to four independent SD-SDI video inputs via BNC connectors and processes them for simultaneous output, typically arranging them in a user-selectable quad-split or other multi-picture layout on a single monitor. This device is essential in broadcast control rooms, mobile production trucks, post-production suites, and security monitoring centers where operators need to visualize several video feeds concurrently without the expense and space requirements of multiple dedicated monitors. The unit decodes the incoming SDI signals, scales them as necessary, and generates a consolidated output signal (often in a higher resolution format like HD or UXGA) that contains all source windows, along with customizable on-screen data such as source labels, audio levels, timecode, and tally indicators.

Built for reliability in 24/7 operational environments, the MCC-8004DA features robust processing to ensure stable, glitch-free display of all inputs. It offers extensive customization through an on-screen menu or external control software, allowing users to define window layouts, borders, transparency, and the type of metadata overlay for each source. The device often includes advanced synchronization capabilities to handle genlocked or asynchronous sources, ensuring a stable final picture. Housed in a compact, half-rack or full rack-mountable metal chassis, it is designed for seamless integration into existing broadcast infrastructure, providing a cost-effective and space-efficient solution for centralized video monitoring of SD-SDI sources.

Key Features

  • Accepts four auto-sensing SD/HD-SDI or composite video inputs
  • Outputs to 1920×1200 resolution with OSD labels and alarms
  • Cascadable up to 15 units for expanded monitoring
  • Supports analog or AES audio metering overlays
  • Compact rack-mount unit ideal for broadcast environments

Avitech MCC-8004DA SD-SDI Video Multiviewer 4 BNC Inputs Specs

Video Inputs
Input Connectors
4 x BNC (SD-SDI)
Input Standard
SD-SDI (270 Mbps) supporting 525-line (NTSC) and 625-line (PAL) formats
Input Resolution
480i/576i
Signal Type
SMPTE 259M-C compliant
Video Processing & Output
Primary Function
Multi-picture processing and display (Multiviewer)
Output Connector
1 x HD-15 (VGA) or DVI-I (model dependent) for monitor connection
Output Resolutions
Supports various computer and HD resolutions (e.g., 1024x768, 1280x1024, 1920x1080) to match the connected display
On-Screen Display & Features
Display Data
Source labels (text), audio level meters, timecode display, tally indicators (RED/GREEN), safe area markers
Customization
Adjustable window borders, background color, label position, font size
Control
Front-panel buttons and OSD menu; may support RS-232/RS-422 serial control for integration
Audio Monitoring
Audio De-embedding
De-embeds audio from SDI inputs for level metering on-screen
Physical & Electrical
Power Supply
Internal, 100-240V AC, 50/60Hz
Enclosure
Metal, rack-mountable (half-rack or 1U full-rack, model dependent)
Dimensions (WxDxH)
Varies (e.g., 210mm x 200mm x 44mm for half-rack)
Operating Temperature
Commercial temperature range (e.g., 0°C to 40°C)

Key Features

  • Accepts four auto-sensing SD/HD-SDI or composite video inputs
  • Outputs to 1920×1200 resolution with OSD labels and alarms
  • Cascadable up to 15 units for expanded monitoring
  • Supports analog or AES audio metering overlays
  • Compact rack-mount unit ideal for broadcast environments
